Chevrolet Trax: Engine replacement - Installation Procedure
- Install the transmission to the engine.

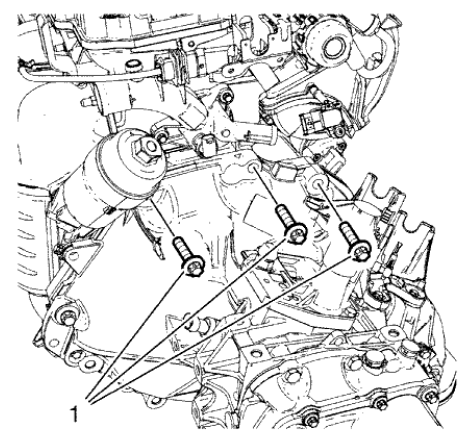

![Fig. 165: Upper Transmission-To-Engine Bolts](images/manuals/4484/index.24(13).gif)
Fig. 165: Upper Transmission-To-Engine Bolts
CAUTION: Refer to Fastener Caution .
- If equipped with a manual transmission, install the upper transmission
to engine bolts (1) to 60 (44 lb ft).

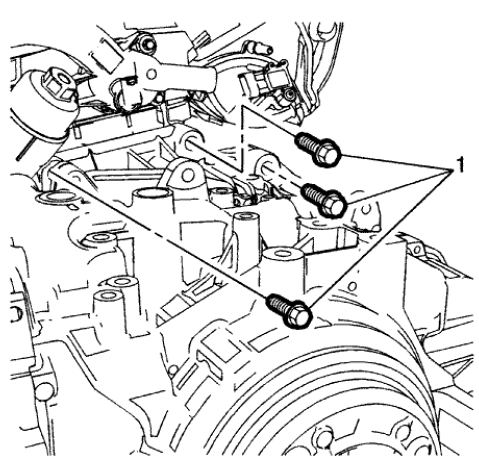

![Fig. 166: Upper Transmission To Engine Bolts](images/manuals/4484/index.25(13).gif)
Fig. 166: Upper Transmission To Engine Bolts
- If equipped with automatic transmission, install the upper transmission
to engine bolts (1) and tighten to
60 (44 lb ft).

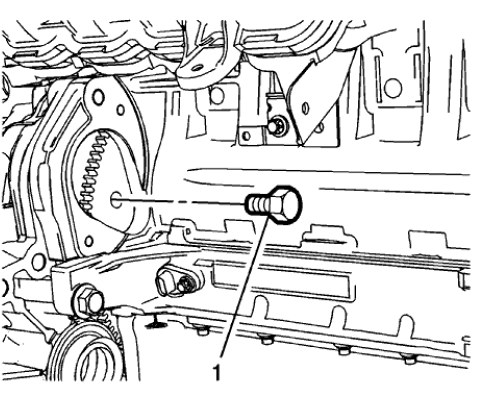

![Fig. 167: Torque Converter To Flywheel Bolt](images/manuals/4484/index.26(13).gif)
Fig. 167: Torque Converter To Flywheel Bolt
- If equipped with an automatic transmission, install the torque converter
to flex plate bolts (1) and tighten
to 60 (44 lb ft).
- Install the starter. Refer to Starter Replacement (LUV) .
- Position the powertrain under the vehicle and slowly lower the
body onto the powertrain.

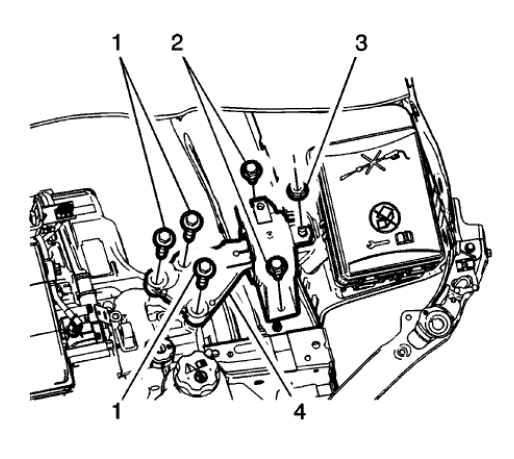

![Fig. 168: Left Transmission Mount & Components](images/manuals/4484/index.27(13).gif)
Fig. 168: Left Transmission Mount & Components
CAUTION: Refer to Torque-to-Yield Fastener Caution .
- Install the NEW left transmission mount to transmission bolts (1) and
tighten to 50 (37 lb ft) plus 70
degrees.

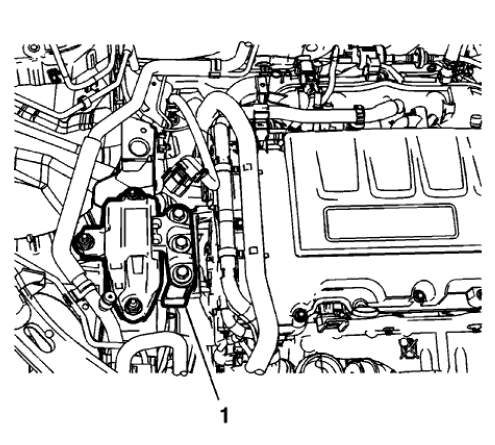

![Fig. 169: Right Side Engine Mount](images/manuals/4484/index.28(13).gif)
Fig. 169: Right Side Engine Mount
- Install the right side engine mount (1). Refer to Engine Mount
Replacement - Right Side.
- Connect all previously disconnected electrical connections.

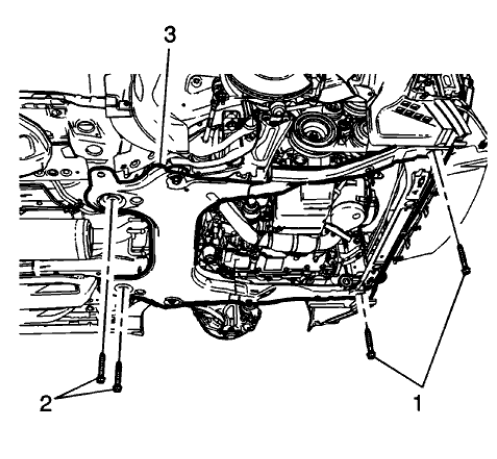

![Fig. 170: Frame And Bolts](images/manuals/4484/index.29(13).gif)
Fig. 170: Frame And Bolts
- Install the frame (3) rear bolts (2) and front bolts (1) and tighten a
little bit.
- Install the frame (3) rear bolts (2) and tighten to 135 (100 lb ft).
- Install the frame (3) front bolts (1) and tighten to 58 (43 lb
ft).

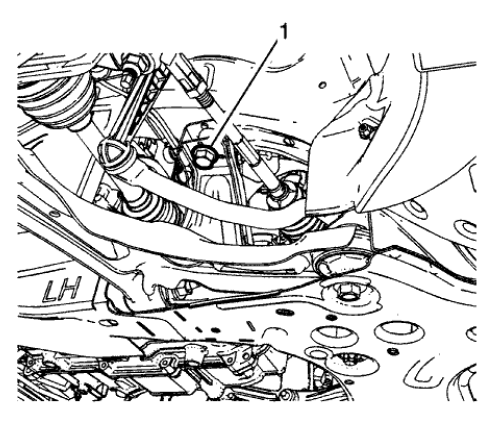

![Fig. 171: Frame Suspension Retaining Bolts](images/manuals/4484/index.30(13).gif)
Fig. 171: Frame Suspension Retaining Bolts
- Install the upper frame suspension retaining bolts (1) on both sides and
tighten to 135 (100 lb ft).
- Remove the lift table.

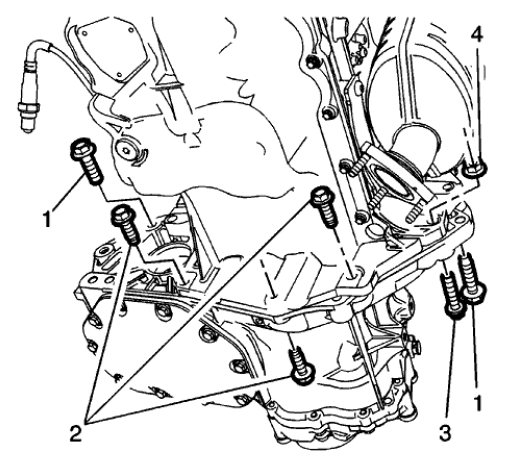

![Fig. 172: Lower Transmission Bolts](images/manuals/4484/index.31(13).gif)
Fig. 172: Lower Transmission Bolts
- If equipped with manual transmission, install the lower transmission
bolts (1) and tighten to 60 (44 lb ft).
- Install the lower transmission bolts (2) and tighten 40 (30 lb ft).
- Install the lower transmission bolt (3) and nut (4) and tighten to 40
(30 lb ft).

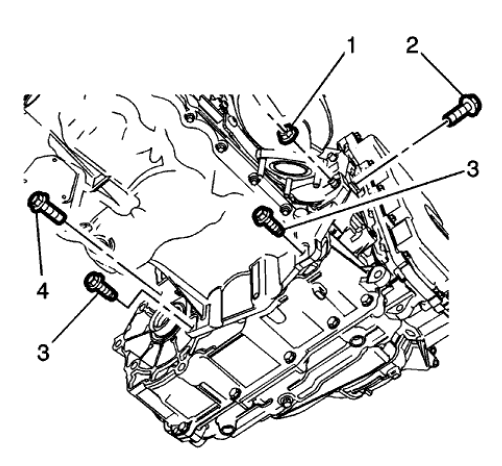

![Fig. 173: Lower Transmission Nut And Bolts](images/manuals/4484/index.32(12).gif)
Fig. 173: Lower Transmission Nut And Bolts
- If equipped with an automatic transmission, install the lower
transmission bolts (2, 4) and tighten to 60
(44 lb ft).
- Install the lower transmission bolts (3) and the lower transmission nut
(1) and tighten to 40 (30 lb ft).
- Install the front exhaust pipe. Refer to Exhaust Front Pipe Replacement
(LUV) , Exhaust Front Pipe
Replacement .

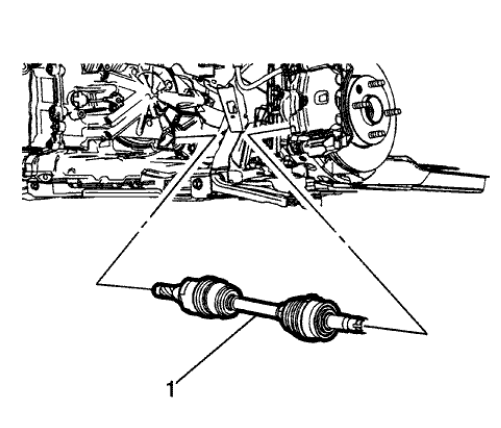

![Fig. 174: Wheel Drive Shaft](images/manuals/4484/index.33(11).gif)
Fig. 174: Wheel Drive Shaft
- Install the wheel drive shafts. Refer to Front Wheel Drive Shaft
Replacement - Left Side , and Front
Wheel Drive Shaft Replacement - Right Side .

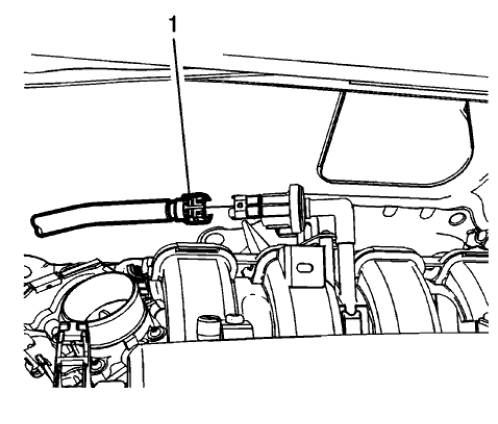

![Fig. 175: Evaporative Emission Pipe](images/manuals/4484/index.34(11).gif)
Fig. 175: Evaporative Emission Pipe
- Connect the evaporative emission pipe (1). Refer to Plastic Collar Quick
Connect Fitting Service .
- Connect the fuel feed pipe. Refer to Plastic Collar Quick Connect
Fitting Service

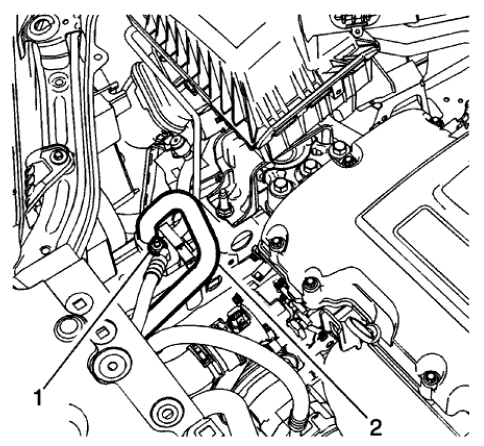

![Fig. 176: A/C Compressor And Condenser Hose](images/manuals/4484/index.35(10).gif)
Fig. 176: A/C Compressor And Condenser Hose
- Install air conditioning compressor and condenser hose to the
refrigerant hose.
- Install air conditioning compressor and condenser hose nut (1) tighten
nut to 22 (16 lb ft).

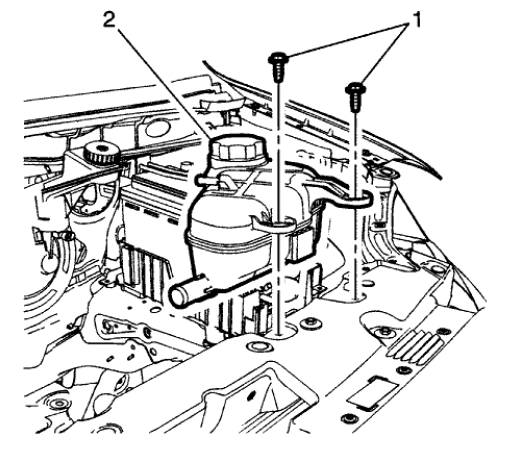

![Fig. 177: Radiator Surge Tank And Mounting Bolts](images/manuals/4484/index.36(10).gif)
Fig. 177: Radiator Surge Tank And Mounting Bolts
- Install the radiator surge tank (2). Refer to Radiator Surge Tank
Replacement (LUV, 2H0, LUJ) .
- Connect the fan connector.

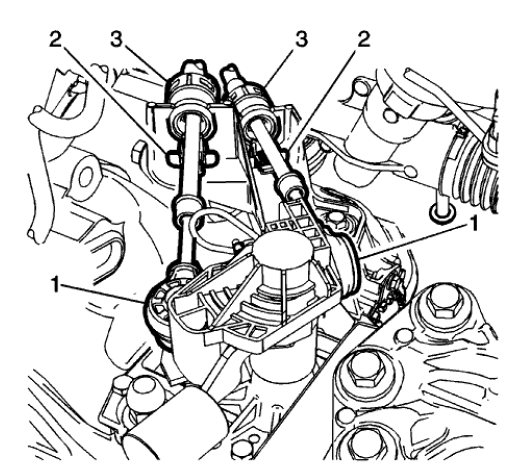

![Fig. 178: Selector Level Cable Components](images/manuals/4484/index.37(10).gif)
Fig. 178: Selector Level Cable Components
- If equipped with manual transmission, Connect the shift lever and
selector lever cable end (1) to the
transmission shift lever and selector lever.
- Connect the shift lever and selector lever cable to the shift lever and
selector lever cable bracket.
- Install the cable retainers (2) to the shift lever and selector lever
cable bracket

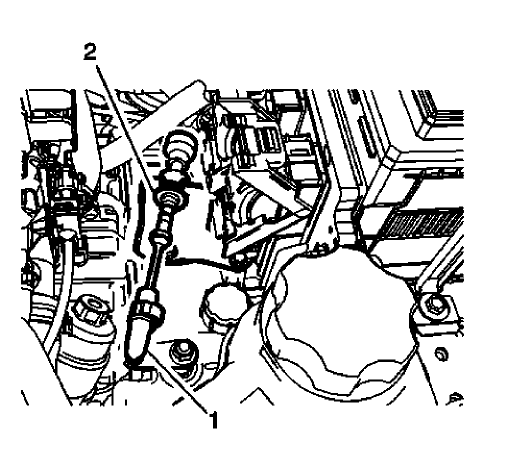

![Fig. 179: Automatic Transmission Range Selector Lever Cable Terminal And Shift Lever Pin](images/manuals/4484/index.38(10).gif)
Fig. 179: Automatic Transmission Range Selector Lever Cable Terminal And
Shift Lever Pin
- If equipped with automatic transmission, install the transmission range
selector lever cable (2) to the
cable bracket.
- Connect the transmission range selector lever cable terminal (1)
to the transmission manual shift lever
pin.
- Adjust the automatic transmission range selector lever cable. Refer to
Range Selector Lever Cable
Adjustment .
- Connect the heater inlet hose from the heater core. Refer to Heater
Inlet Hose Replacement (LUJ,
LUV) .

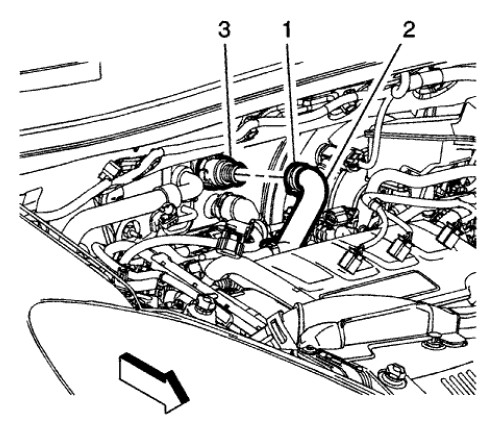

![Fig. 180: Heater Outlet Hose](images/manuals/4484/index.39(10).gif)
Fig. 180: Heater Outlet Hose
- Connect the heater outlet hose (2) from the heater core. Refer to Heater
Outlet Hose Replacement
(LUJ, LUV) , Heater Outlet Hose Replacement (LUJ, LUV Rear) .

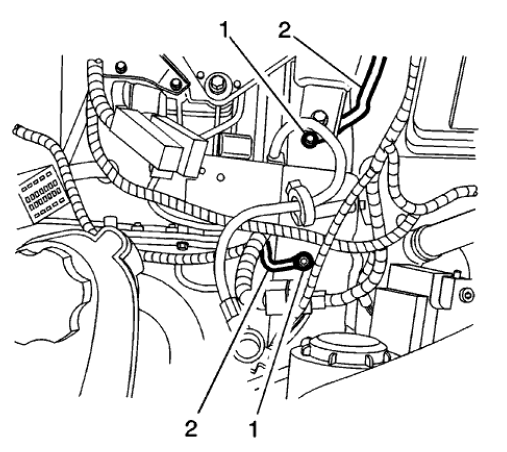

![Fig. 181: Wiring Harness And Ground Nuts](images/manuals/4484/index.40(10).gif)
Fig. 181: Wiring Harness And Ground Nuts
- Install the ground nuts (1) and wiring harness (2).

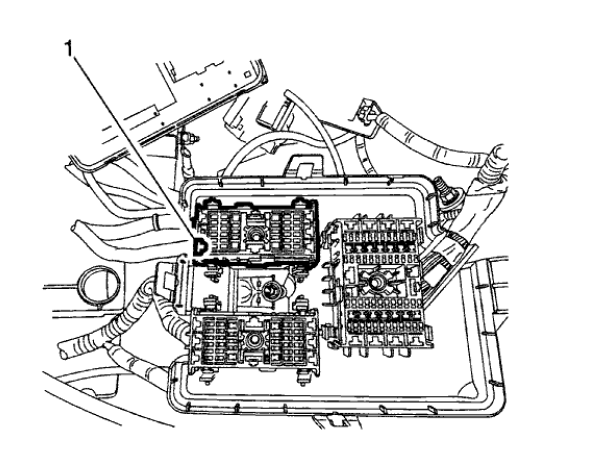

![Fig. 182: Wiring Harness - Top Of Engine](images/manuals/4484/index.41(10).gif)
Fig. 182: Wiring Harness - Top Of Engine
- Clip in the wiring harness plugs (1).

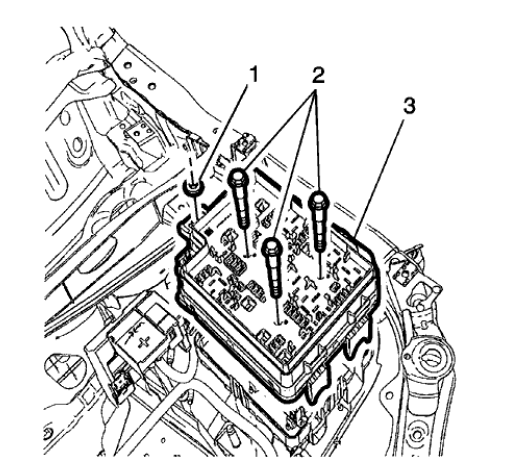

![Fig. 183: Junction Block](images/manuals/4484/index.42(10).gif)
Fig. 183: Junction Block
- Install the junction block to the base (3).
- Install the junction block bolts (2) and tighten to 5 (44 lb in).
- Install the junction block nut (1) and tighten to 5 (44 lb in).

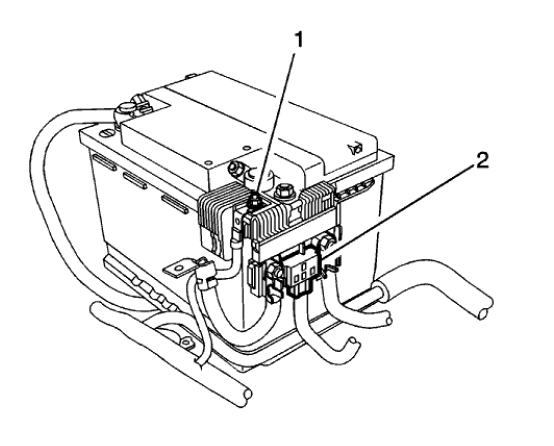

![Fig. 184: Body Wiring Harness Connector And Positive Cable Nut](images/manuals/4484/index.43(10).gif)
Fig. 184: Body Wiring Harness Connector And Positive Cable Nut
- Install the battery positive cable to the battery positive cable
junction block and tighten nut (1) to 5 (44 lb
in).
- Connect the body wiring master harness connector (2), to the battery
positive cable junction block.

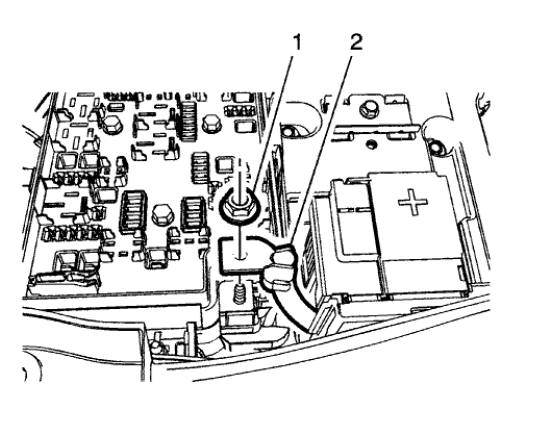

![Fig. 185: Positive Battery Cable And Nut](images/manuals/4484/index.44(10).gif)
Fig. 185: Positive Battery Cable And Nut
- Position the positive battery cable (2) to the junction block.
- Install the positive battery cable nut (1) and tighten to 7 (62 lb in).

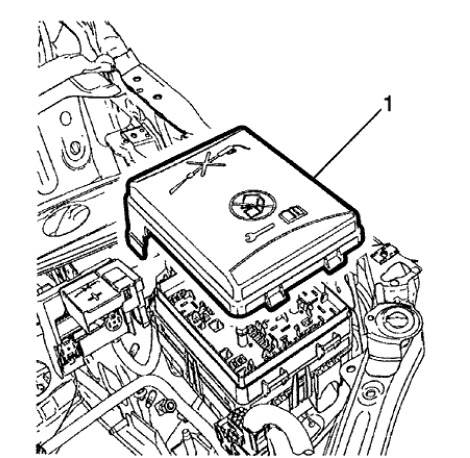

![Fig. 186: Junction Block And Cover](images/manuals/4484/index.45(10).gif)
Fig. 186: Junction Block And Cover
- Install the junction block cover (1).

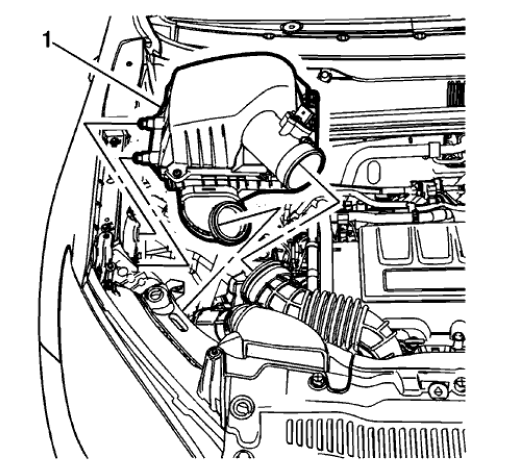

![Fig. 187: Air Cleaner Assembly](images/manuals/4484/index.46(10).gif)
Fig. 187: Air Cleaner Assembly
- Install the air cleaner assembly (1). Refer to Air Cleaner Assembly
Replacement .

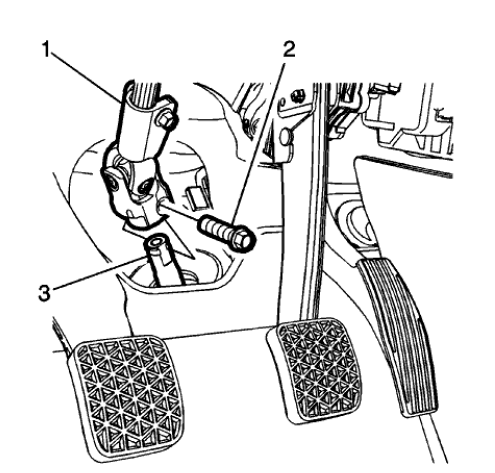

![Fig. 188: Intermediate Steering Shaft And Bolt](images/manuals/4484/index.47(10).gif)
Fig. 188: Intermediate Steering Shaft And Bolt
- Install the lower intermediate steering shaft bolt (1). Refer to
Intermediate Steering Shaft Replacement
(NJ1) , Intermediate Steering Shaft Replacement (N40) .
- Install the battery and battery tray. Refer Battery Tray Replacement .
- Install the front tire and wheel assembly. Refer to Tire and Wheel
Removal and Installation .
- Install the front bumper fascia. Refer to Front Bumper Fascia
Replacement (Trax) , Front Bumper
Fascia Replacement (Encore) .
- Evacuate and charge the refrigerant system. Refer to Refrigerant
Recovery and Recharging (R-134a) .
- Fill the cooling system. Refer to Cooling System Draining and Filling .
