Engine Compartment Fuse Block

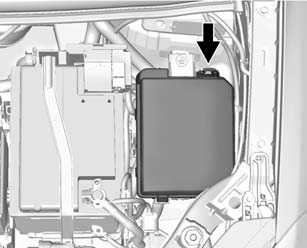

To remove the fuse block cover, squeeze the clip and lift it up.

Caution

Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

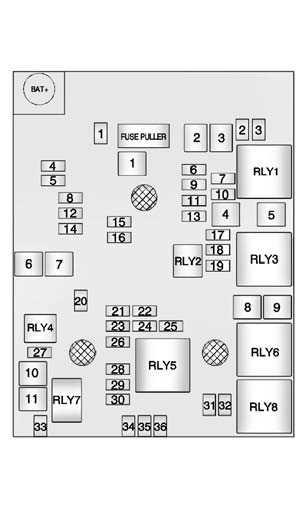

Engine Compartment Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Mini Fuses  Usage

  1. Sunroof
  2. utside Rearview Mirror Switch
  3. Canister Vent Solenoid (1.4L Only)
  4. Not Used
  5. Electronic Brake Control Module Valve
  6. Not Used
  7. Not Used
  8. Transmission Control Module Battery
  9. Not Used
  10. Fuel System Control Module R/C (1.4L Only)/Headlamp Leveling
  11.  Rear Wiper
  12. Rear Window Defogger
  13. Not Used
  14. Outside Rearview Mirror Heater
  15. Fuel System Control Module Battery (1.4L Only)
  16. Heated Seat Module
  17. Transmission Control Module R/C
  18. Engine Control Module R/C
  19. Fuel Pump (1.8L Only)
  20. Not Used
  21. Fan Relay (Auxiliary Fuse Block - 1.4L)/ Fan 3 Relay 85 (1.8L)
  22. Cold Start Pump (1.8L Only)
  23. Ignition Coil/Injectors
  24. Washer Pump
  25. Not Used
  26. Canister Purge Solenoid/Water Valve Solenoid/ Oxygen Sensors - Pre and Post/Turbo Wastegate Solenoid (1.4L)/Turbo Bypass Solenoid (1.4L)/ IMTV Solenoid (1.8L)
  27. Not Used
  28. Not Used
  29. Engine Control Module Powertrain Ignition 1/Ignition 2
  30. Mass Air Flow Sensor
  31. Left High-Beam Headlamp
  32. Right High-Beam Headlamp
  33. Engine Control Module Battery
  34. Horn
  35. Air Conditioning Compressor Clutch
  36. Front Fog Lamps

J-Case Fuses     Usage

  1. Electronic Brake Control Module Pump
  2.  Front Wiper
  3. Blower Motor
  4. IEC R/C
  5. Not Used
  6. Not Used
  7. Not Used
  8. Cooling Fan Low/ Mid (1.4L)/Cooling Fan Low (1.8L)
  9. Cooling Fan High
  10. EVP
  11. Starter Solenoid

U-Micro Relays Usage

2 Fuel Pump (1.8L Only)

4 Spare

HC-Micro Relays Usage

7 Starter

Mini Relays  Usage

1 Run Crank

3 Cooling Fan Mid (1.4L Only)

5 Powertrain Relay

8 Cooling Fan Low

HC-Mini Relays Usage

6 Cooling Fan High

Auxiliary Fuse Block

Auxiliary Fuse Block

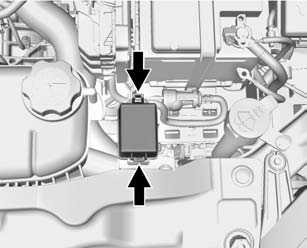

To remove the fuse block cover, squeeze the clips and lift it up.

Caution

Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.

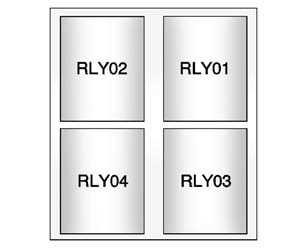

Auxiliary Fuse Block

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Relays   Usage

01 Electric Vacuum Pump

02 Cooling Fan Control 1

03 Cooling Fan Control 2

04 Trailer (1.4L Only)
