Chevrolet Trax: DTC B3664: Sunroof position select switch

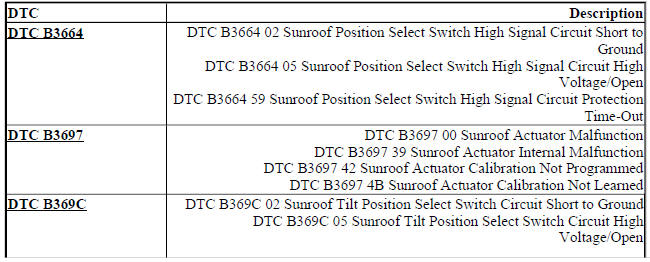

DIAGNOSTIC CODE INDEX
DTC B3664: SUNROOF POSITION SELECT SWITCH
Diagnostic Instructions
- Perform the Diagnostic System Check - Vehicle prior to using this
diagnostic procedure.
- Review Strategy Based Diagnosis for an overview of the diagnostic
approach.
- Diagnostic Procedure Instructions provides an overview of each
diagnostic category
DTC Descriptors
DTC B3664 02
Sunroof Position Select Switch High Signal Circuit Short to Ground
DTC B3664 05
Sunroof Position Select Switch High Signal Circuit High Voltage/Open
DTC B3664 59
Sunroof Position Select Switch High Signal Circuit Protection Time-Out

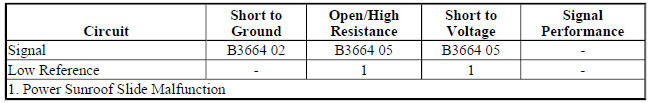

Diagnostic Fault Information
Circuit/System Description
The sunroof switch is connected directly to the sunroof control module and
provides detent positions for open,
express open, off, close, and express close. The sunroof switch completes the
circuit between two signals
proved by the sunroof control module, a reference ground input and a pull-up
voltage provided by an analog to
digital switch input. The sunroof switch places a different resistor ladder
network in the circuit depending on the
function selected.
Conditions for Running the DTC
The ignition is ON.
Conditions for Setting the DTC
B3664 02
The sunroof control module has detected and reported via serial data that the
sunroof switch signal is shorted to
ground.
B3664 05
The sunroof control module has detected and reported via serial data that the
sunroof switch signal is open or
shorted to voltage.
B3664 59
The sunroof control module has detected and reported via serial data that the
sunroof switch has been in the
same active position for 20 seconds after the glass has stopped moving in the
requested direction due to
reaching the end of the allowable motion.
Action Taken When the DTC Sets
DTC B3664 is stored in the body control module (BCM) memory.
Conditions for Clearing the DTC
The BCM no longer detects a malfunction in the sunroof switch signal circuit.
Reference Information
Schematic Reference
Sunroof Schematics (Encore), Sunroof Schematics (Trax)
Connector End View Reference
WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS -
INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT
CONNECTOR END VIEWS - INDEX - TRAX
Description and Operation
Sunroof Description and Operation
Electrical Information Reference
- Circuit Testing
- Connector Repairs
- Testing for Intermittent Conditions and Poor Connections
- Wiring Repairs
Scan Tool Reference
Control Module References for scan tool information
Circuit/System Testing
- Ignition OFF and all vehicle systems OFF, disconnect the harness
connector at the S72 Sunroof Switch. It
may take up to 2 minutes for all vehicle systems to power down.
- Test for less than 10 ohms between the low reference circuit terminal 1
and ground.
If 10 ohms or greater
- Ignition OFF, disconnect the harness connector at the K61 Sunroof
Control Module.
- Test for less than 2 ohms in the low reference circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms , test or replace the K61 Sunroof Control Module.
- If less than 10 ohms
- Ignition ON.
- Verify the scan tool Slide Switch parameter is Short to Battery.
- Ignition Off, disconnect the harness connector at the K61 Sunroof
Control Module.
- Test for infinite resistance between the signal circuit terminal 4 and
ground.
- If less than infinite resistance, repair the short to ground on the
circuit.
- If infinite resistance, replace the K61 Sunroof Control Module.
- If Short to Battery
- Install a 5 A fused jumper wire between the signal circuit terminal 4
and the low reference circuit
terminal 1.
- Verify the scan tool Slide Switch parameter is Short to Ground.
If not Short to Ground
- Ignition OFF, disconnect the harness connector at the K61 Sunroof
Control Module.
- Test for less than 1 V between the signal circuit terminal 4 and ground.
- If 1 V or greater, repair the short to voltage on the circuit.
- If less than 1 V
- Test for less than 2 ohms in the signal circuit end to end.
- If 2 ohms or greater, repair the open/high resistance in the circuit.
- If less than 2 ohms, replace the K61 Sunroof Control Module.
- If Short to Ground
- All OK.
Component Testing
Sunroof Switch
Static Test
- Ignition OFF, disconnect the harness connector at the S72 Sunroof Switch.
- Test for 3.3-4.0k ohms between the control terminal 4 and the low
reference terminal 1.
- If not between 3.3-4.0k ohms
Replace the S72 Sunroof Switch.
- Test for 390-480 ohms between the control terminal 4 and the low
reference terminal 1 while pressing the
open switch.
- If not between 390-480 ohms
Replace the S72 Sunroof Switch.
- Test for 88-120 ohms between the control terminal 4 and the low
reference terminal 1 while pressing the
express open switch.
- If not between 88-120 ohms
Replace the S72 Sunroof Switch.
- Test for 1.6-2.0k ohms between the control terminal 4 and the low
reference terminal 1 while pressing the
close switch.
If not between 1.6-2.0k ohms
Replace the S72 Sunroof Switch.
- Test for 830-1030 ohms between the control terminal 4 and the low
reference terminal 1 while pressing
the express close switch.
- If not between 830-1030 ohms
Replace the S72 Sunroof Switch.
- All OK
Repair Instructions
Perform the Diagnostic Repair Verification after completing the repair.
- Sunroof Switch Replacement
- Sunroof Module Assembly Replacement
- Control Module References for sunroof control module replacement,
programming and setup
