Chevrolet Trax: DTC B3101: Keyless entry data link circuit

Diagnostic Instructions

• Perform the Diagnostic System Check - Vehicle prior to using this diagnostic procedure
• Review Strategy Based Diagnosis for an overview of the diagnostic approach.
• Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC B3101

Keyless Entry Data Link Circuit

For symptom byte information, refer to Symptom Byte List .

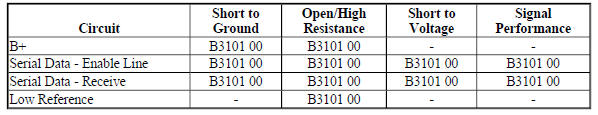

Diagnostic Fault Information

Circuit/System Description

The body control module communicates with the remote control door lock receiver through the keyless entry serial data circuits. When any button on the keyless entry transmitter is pressed, the transmitter sends a signal to the remote control door lock receiver. The remote control door lock receiver sends a function request to the body control module, depending on which button is pressed on the transmitter. The body control module receives the message and performs the appropriate function.

Conditions for Running the DTC

The body control module monitors for this DTC at all times.

Conditions for Setting the DTC

No response is received from the remote control door lock receiver after the body control module requests information from or sends configuration commands to the remote control door lock receiver.

Action Taken When the DTC Sets

In the case of power loss, the remote control door lock receiver is disabled for 65 s. Otherwise no action is taken.

Conditions for Clearing the DTC

• A current DTC will clear when the fault is no longer present.
• A history DTC will clear after 40 consecutive ignition cycles without a fault present.

Reference Information

Schematic Reference

Remote Function Schematics (Encore), Remote Function Schematics (Trax)

Component Connector End Views Reference

WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - ENCORE WIRING SYSTEMS AND POWER MANAGEMENT - COMPONENT CONNECTOR END VIEWS - INDEX - TRAX

Description and Operation

Keyless Entry System Description and Operation

Electrical Information Reference

• Circuit Testing
• Connector Repairs
• Testing for Intermittent Conditions and Poor Connections
• Wiring Repairs

Scan Tool Reference

Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF and all vehicle systems OFF, scan tool disconnected, disconnect the harness connector at the K77 Remote Control Door Lock Receiver. It may take up to 2 min for all vehicle systems to power down.
2. Test for less than 30 ohms between the low reference circuit terminal 1 and ground.

If 30 ohms or greater

1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
2. Test for less than 2 ohms in the low reference circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.

If less than 30 ohms

3. Ignition ON.
4. Test for greater than 11.5 V between the B+ circuit terminal 4 and ground.

If 11.5 V or less

1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the B+ circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If Infinite resistance

3. Test for less than 2 ohms in the B+ circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.

If greater than 11.5 V

5. Test for 1-6 V between the serial data circuit terminal 2 and ground.

If less than 1 V

1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the serial data circuit and ground.

• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance

3. Test for less than 2 ohms in the serial data circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.

If greater than 6 V

1. Ignition OFF, disconnect the harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the serial data circuit and ground.

• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K9 Body Control Module.

If between 3-6 V

6. Ignition OFF, disconnect the X1 and X2 harness connectors at the K9 Body Control Module, ignition ON.
7. Test for less than 1 V between the K9 Body Control Module serial data circuit terminal 26 X1 and ground.

If 1 V or greater

Repair the short to voltage on the circuit.

If less than 1 V

8. Ignition OFF.
9. Test for infinite resistance between the K9 Body Control Module serial data circuit terminal 26 X1 and ground.

If less than infinite resistance

Repair the short to ground on the circuit.

If infinite resistance

10. Test for less than 2 ohms between the K9 Body Control Module serial data circuit terminal 26 X1 and the K77 Remote Control Door Lock Receiver serial data circuit terminal 3.

If 2 ohms or greater

Repair the open/high resistance in the circuit.

If less than 2 ohms

11. Replace the K77 Remote Control Door Lock Receiver.
12. Verify DTC B3101 does not set while operating the vehicle under the conditions for running the DTC.

If the DTC sets

Replace the K9 Body Control Module

If the DTC does not set

13. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification after completing the repair.

Control Module References for body control module or remote control door lock receiver replacement, programming, and setup.
