AMBIENT AIR TEMPERATURE SENSOR REPLACEMENT

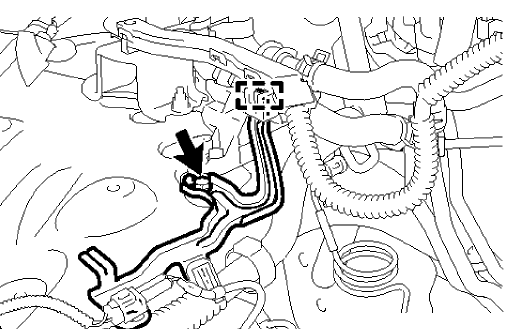

Fig. 9: Ambient Air Temperature Sensor
Fig. 9: Ambient Air Temperature Sensor

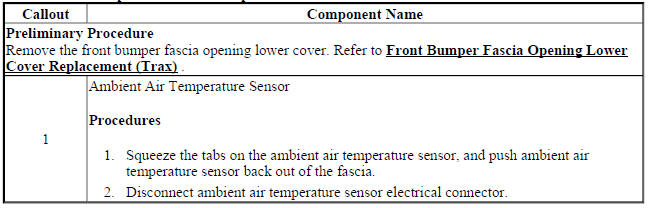

Ambient Air Temperature Sensor Replacement

Ambient Air Temperature Sensor Replacement

DRIVER INFORMATION DISPLAY REPLACEMENT (UAG)

Fig. 10: Driver Information Display Replacement (UAG)
Fig. 10: Driver Information Display Replacement (UAG)

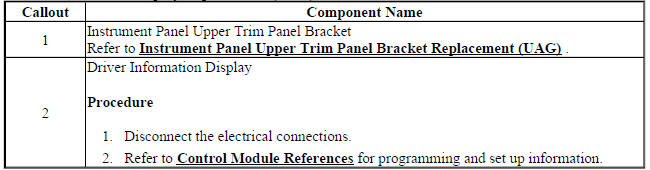

Driver Information Display Replacement (UAG)

Driver Information Display Replacement (UAG)

DRIVER INFORMATION DISPLAY REPLACEMENT (UDN)

Fig. 11: Driver Information Display (UDN)
Fig. 11: Driver Information Display (UDN)

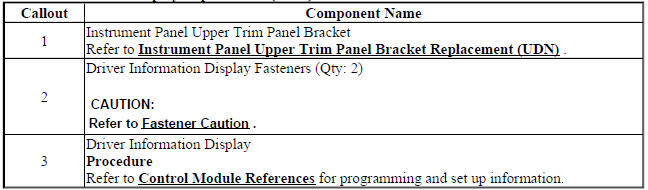

Driver Information Display Replacement (UDN)

Driver Information Display Replacement (UDN)

INSTRUMENT CLUSTER REPLACEMENT (ENCORE)

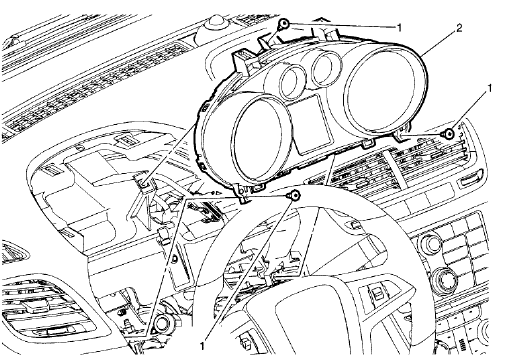

Fig. 12: Instrument Cluster
Fig. 12: Instrument Cluster

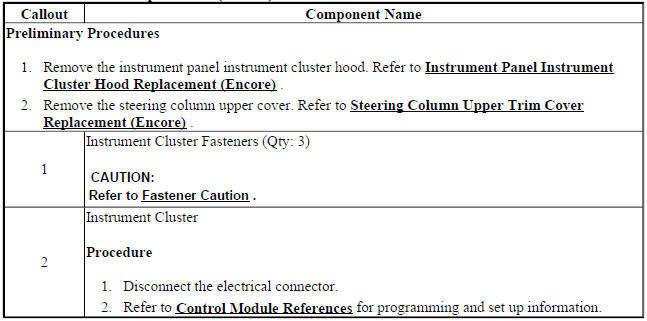

Instrument Cluster Replacement (Encore)

Instrument Cluster Replacement (Encore)

INSTRUMENT CLUSTER REPLACEMENT (TRAX)

Fig. 13: Instrument Cluster
Fig. 13: Instrument Cluster

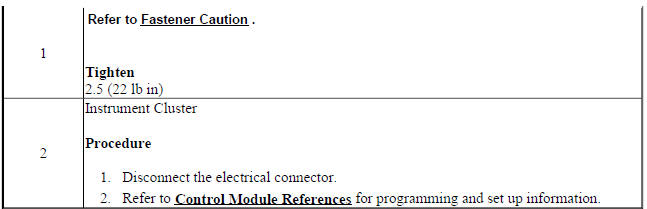

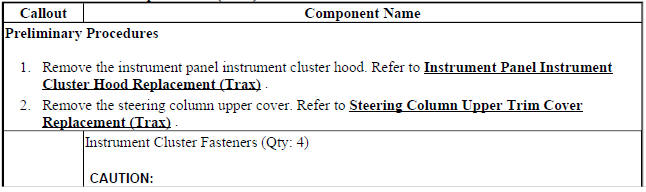

Instrument Cluster Replacement (Trax)

Instrument Cluster Replacement (Trax)

Instrument Cluster Replacement (Trax)

ACCESSORY SWITCH REPLACEMENT (ENCORE)

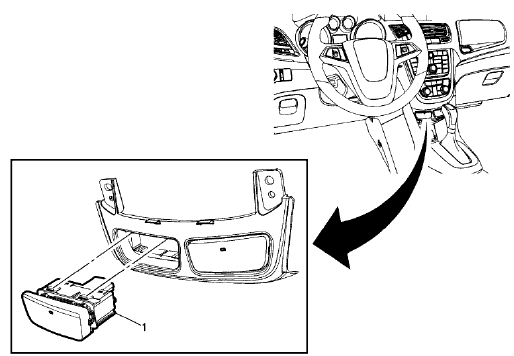

Fig. 14: Accessory Switch
Fig. 14: Accessory Switch

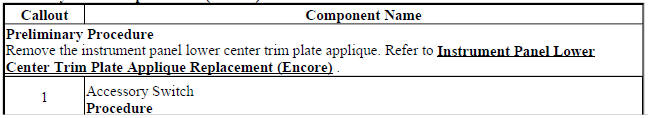

Accessory Switch Replacement (Encore)

Accessory Switch Replacement (Encore)

ACCESSORY SWITCH REPLACEMENT (TRAX)

Fig. 15: Accessory Switch<.

Fig. 15: Accessory Switch

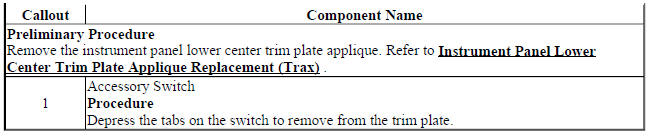

Accessory Switch Replacement (Trax)

Accessory Switch Replacement (Trax)

INSTRUMENT PANEL MULTIFUNCTION SWITCH REPLACEMENT (ENCORE)

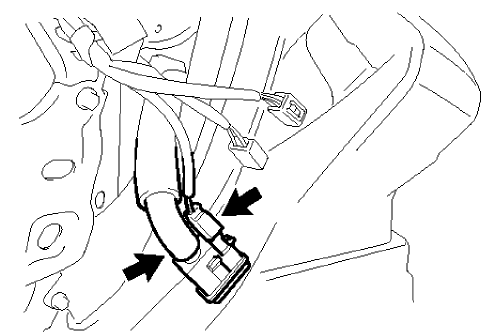

Fig. 16: Instrument Panel Multifunction Switch
Fig. 16: Instrument Panel Multifunction Switch

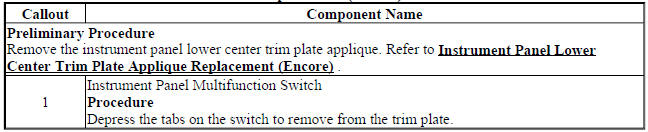

Instrument Panel Multifunction Switch Replacement (Encore)

Instrument Panel Multifunction Switch Replacement (Encore)
