Chevrolet Trax: Communication interface module scan tool information

Chevrolet Trax (2013-2022) Workshop Manual / General Information & Maintenance / Vehicle Diagnostic Information - Diagnostic Information and Procedures / Communication interface module scan tool information

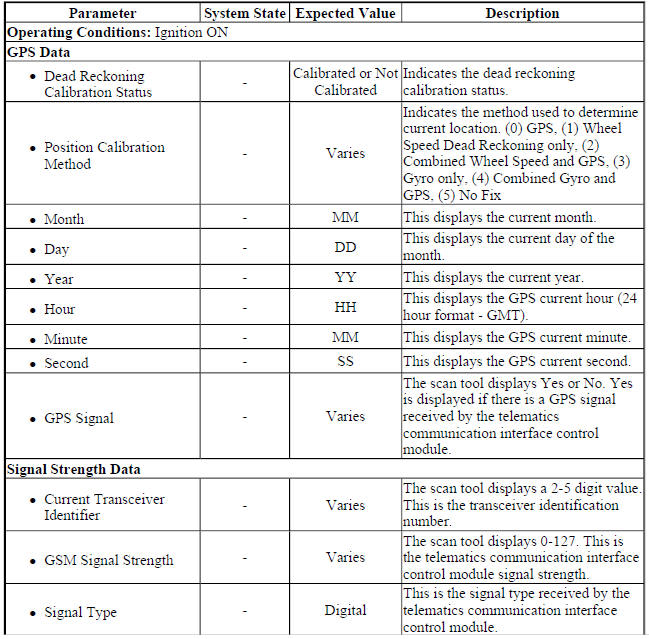

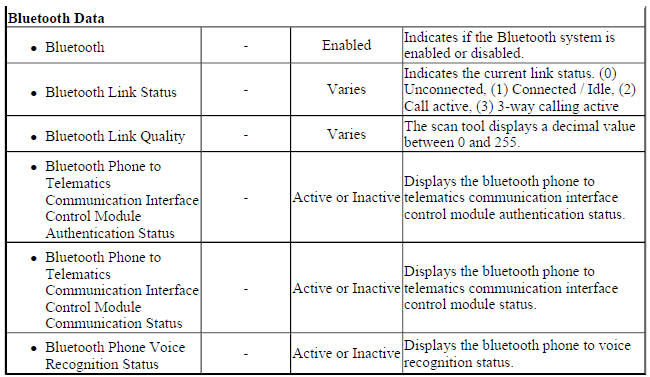

Telematics Communication Interface Control Module Scan Tool Data Parameters

Telematics Communication Interface Control Module Scan Tool Data Parameters

Telematics Communication Interface Control Module Scan Tool Data Parameters

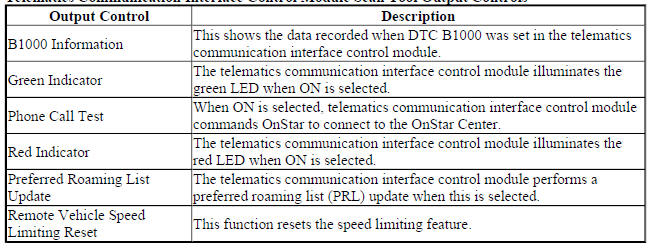

Telematics Communication Interface Control Module Scan Tool Output Controls

Telematics Communication Interface Control Module Scan Tool Output Controls

SEAT MEMORY CONTROL MODULE SCAN TOOL INFORMATION

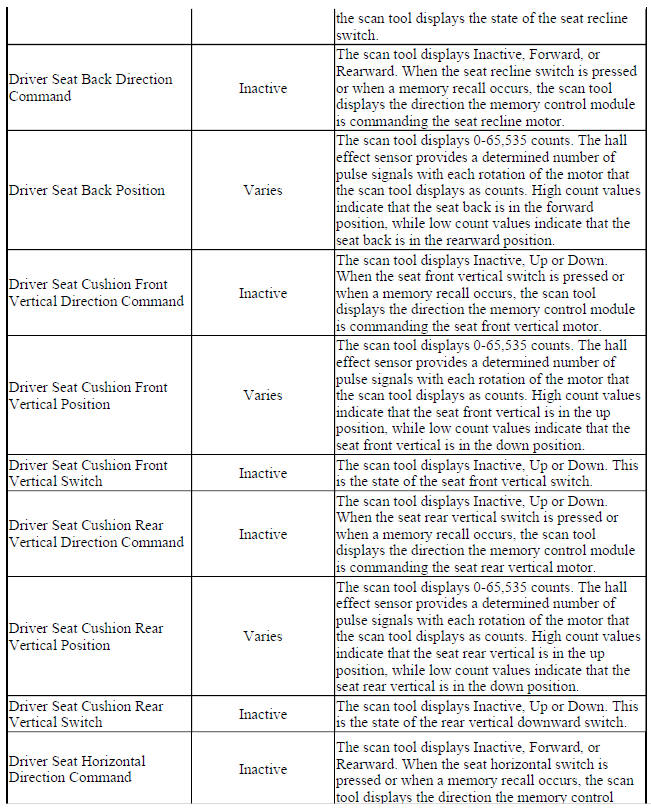

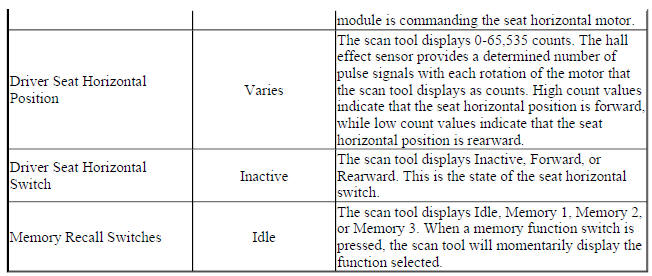

Seat Position Scan Tool Data Parameters

Seat Position Scan Tool Data Parameters

Seat Position Scan Tool Data Parameters

Seat Position Scan Tool Data Parameters

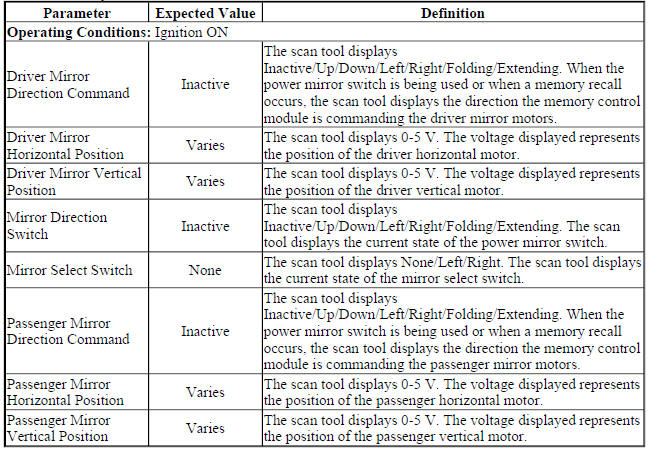

Mirror Memory Scan Tool Data Parameters

Mirror Memory Scan Tool Data Parameters

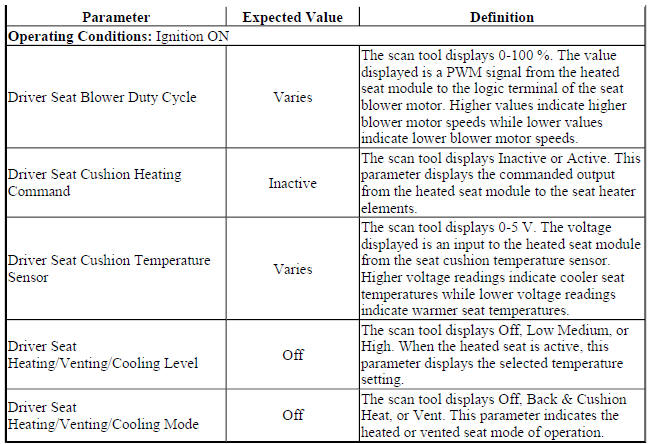

Left Front Seat Heating/Venting/Cooling Scan Tool Data Parameters

Left Front Seat Heating/Venting/Cooling Scan Tool Data Parameters

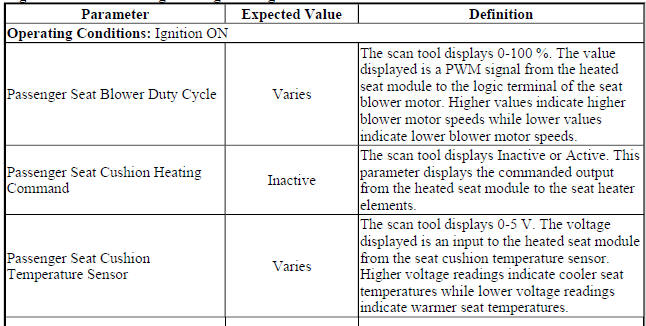

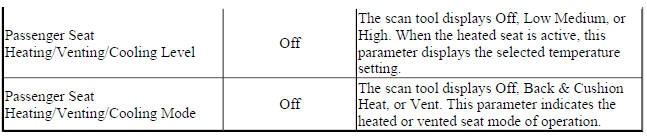

Right Front Seat Heating/Venting/Cooling Scan Tool Data Parameters

Right Front Seat Heating/Venting/Cooling Scan Tool Data Parameters

Right Front Seat Heating/Venting/Cooling Scan Tool Data Parameters

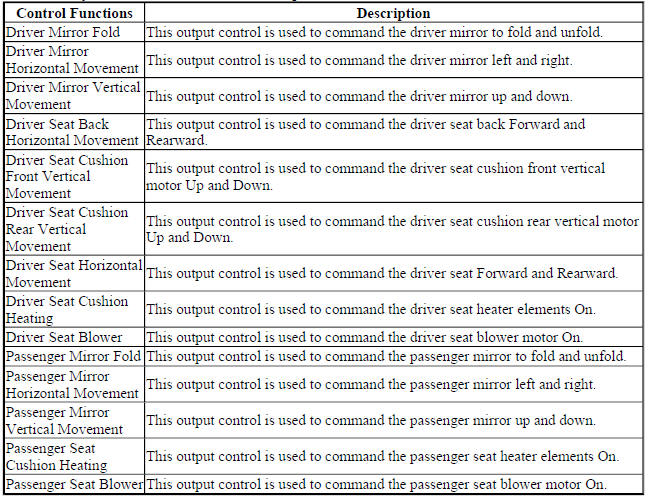

Seat Memory Control Module Scan Tool Output Controls

Seat Memory Control Module Scan Tool Output Controls

DRIVER SEAT AND PASSENGER SEAT HEATER CONTROL MODULE SCAN TOOL INFORMATION

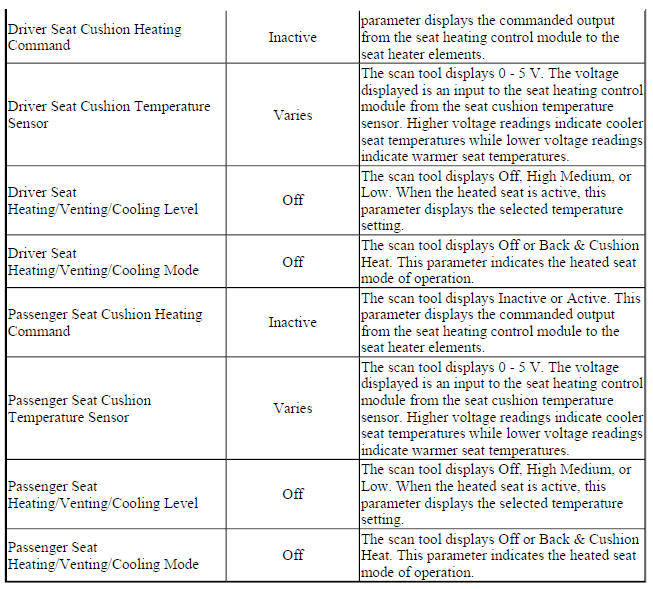

Front Seat Heating Control Module Scan Tool Data Parameters

Front Seat Heating Control Module Scan Tool Data Parameters

Front Seat Heating Control Module Scan Tool Data Parameters

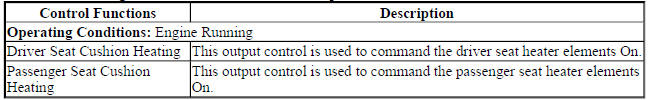

Front Seat Heating Control Module Scan Tool Output Controls

Front Seat Heating Control Module Scan Tool Output Controls

ELECTRONIC BRAKE CONTROL MODULE SCAN TOOL INFORMATION

The electronic brake control module (EBCM) scan tool data parameters list contains all ABS related parameters that are available on the scan tool. The list is arranged in alphabetical order. A given parameter may appear in any one of the data lists.

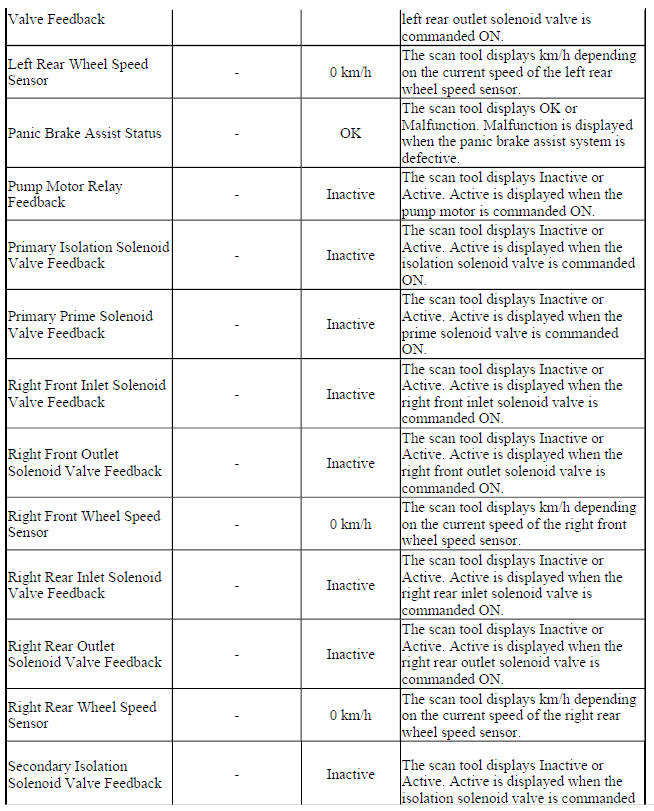

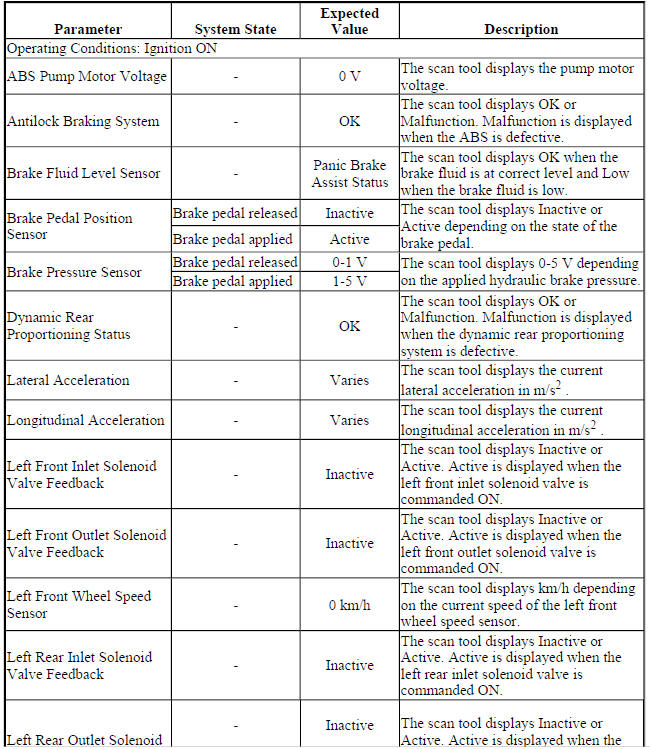

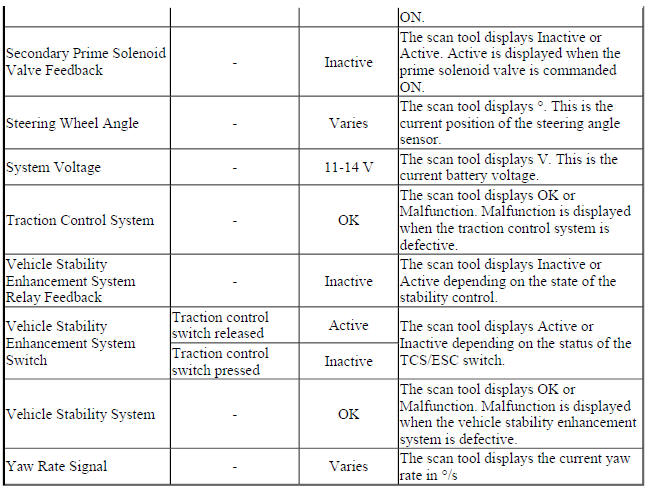

Electronic Brake Control Module Scan Tool Data Parameter

Electronic Brake Control Module Scan Tool Data Parameter

Electronic Brake Control Module Scan Tool Data Parameter

Electronic Brake Control Module Scan Tool Data Parameter

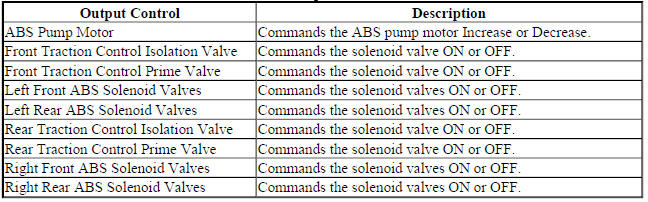

Electronic Brake Control Module Scan Tool Output Controls

Electronic Brake Control Module Scan Tool Output Controls

K20 ENGINE CONTROL MODULE: SCAN TOOL INFORMATION (LUV OR 2H0)

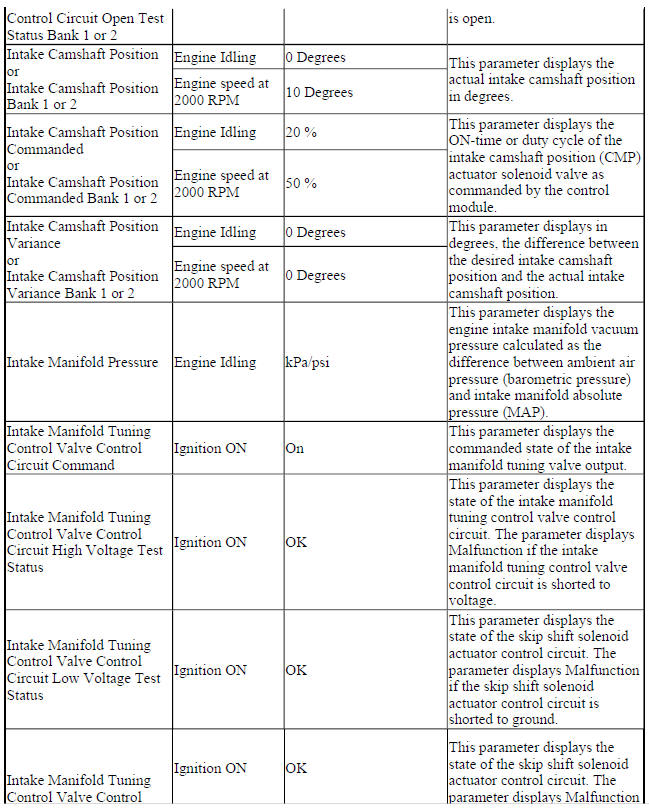

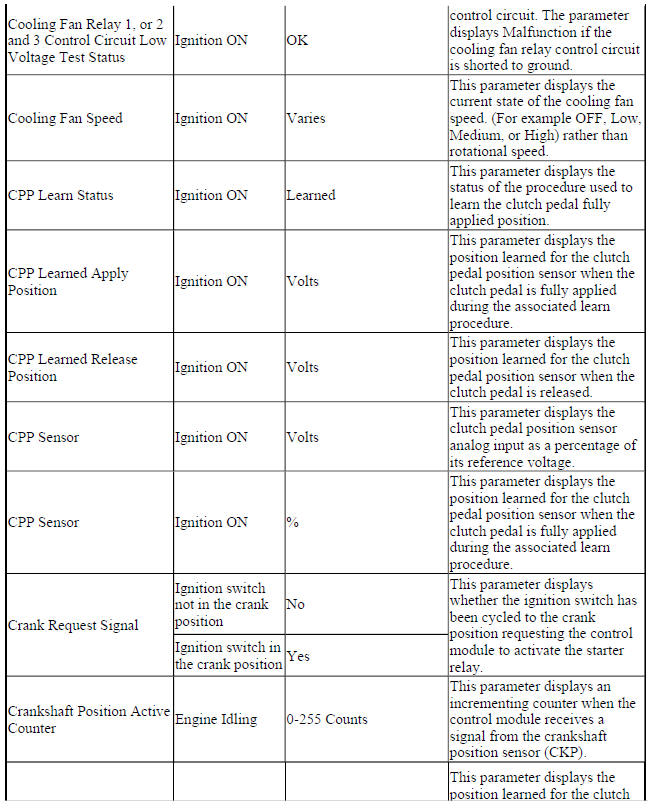

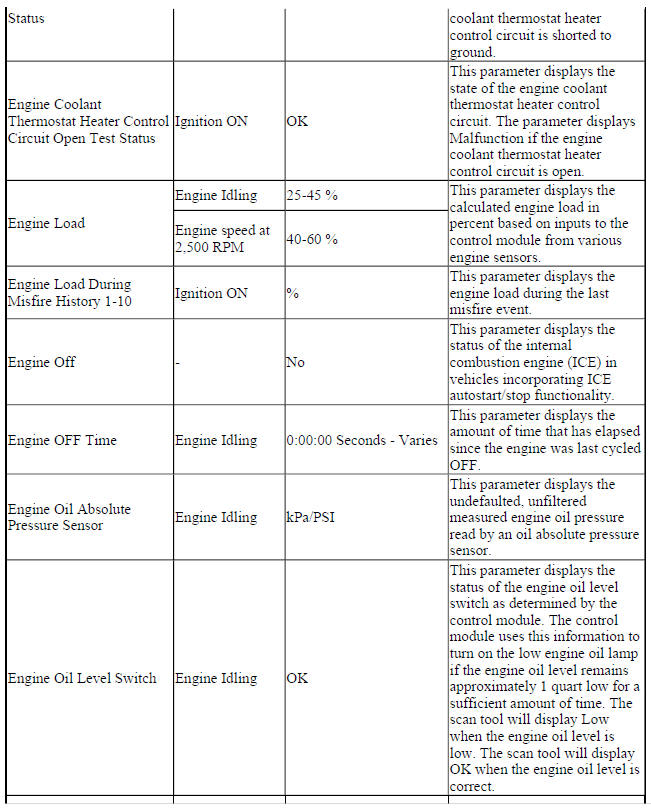

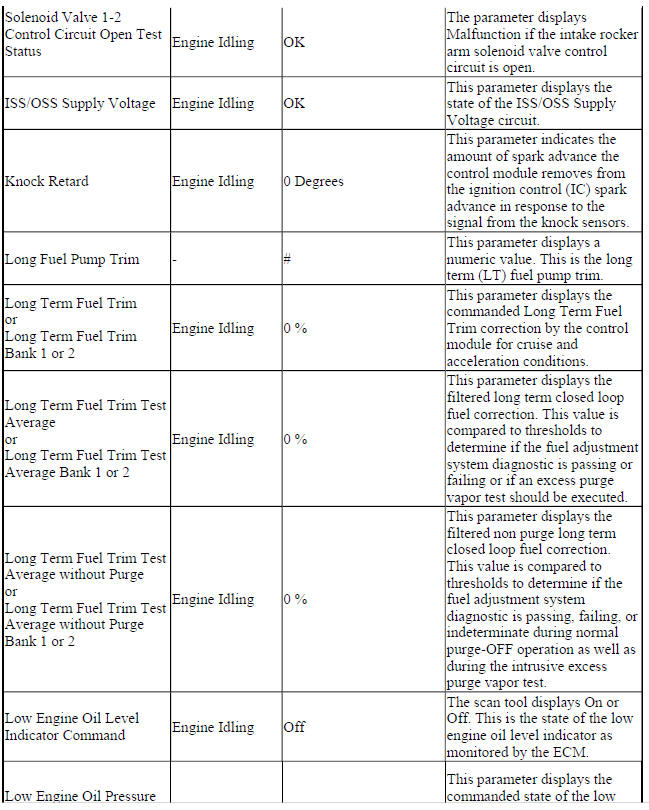

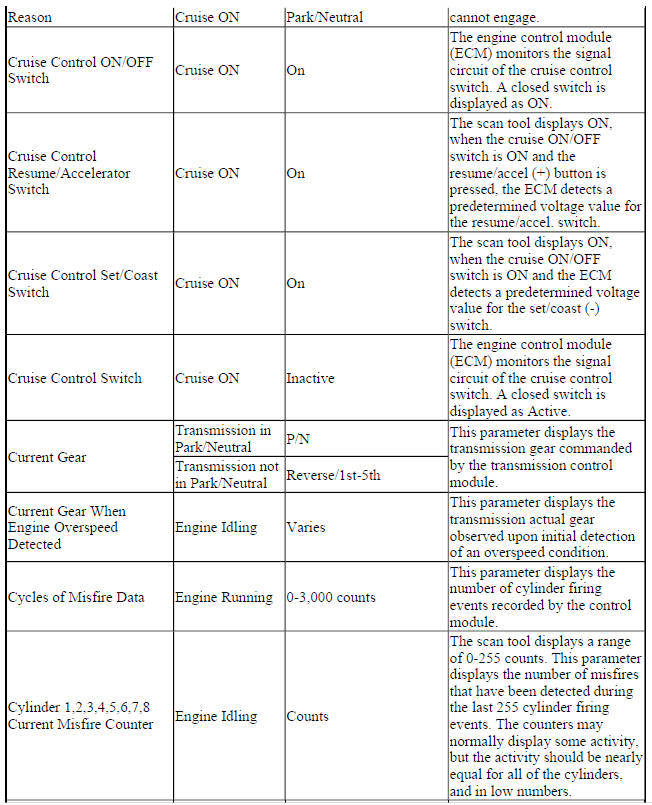

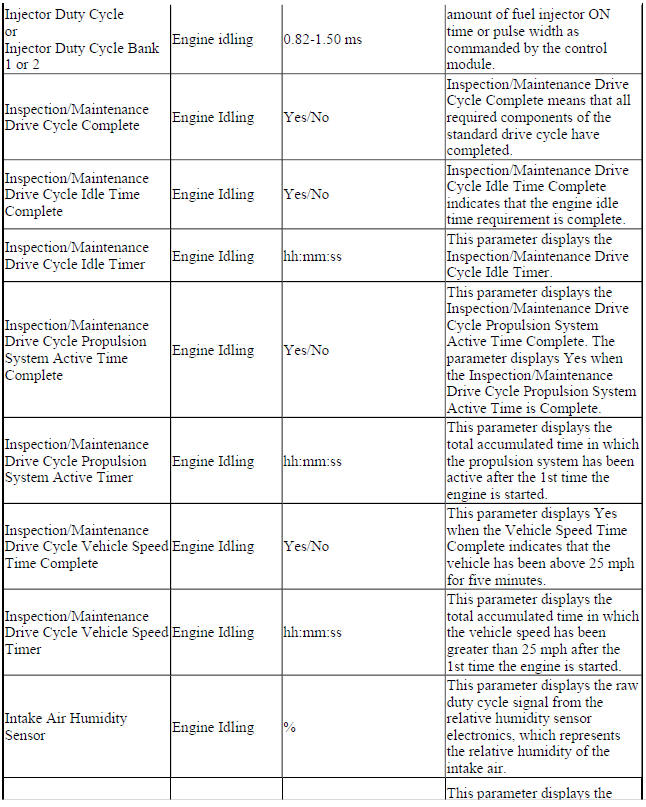

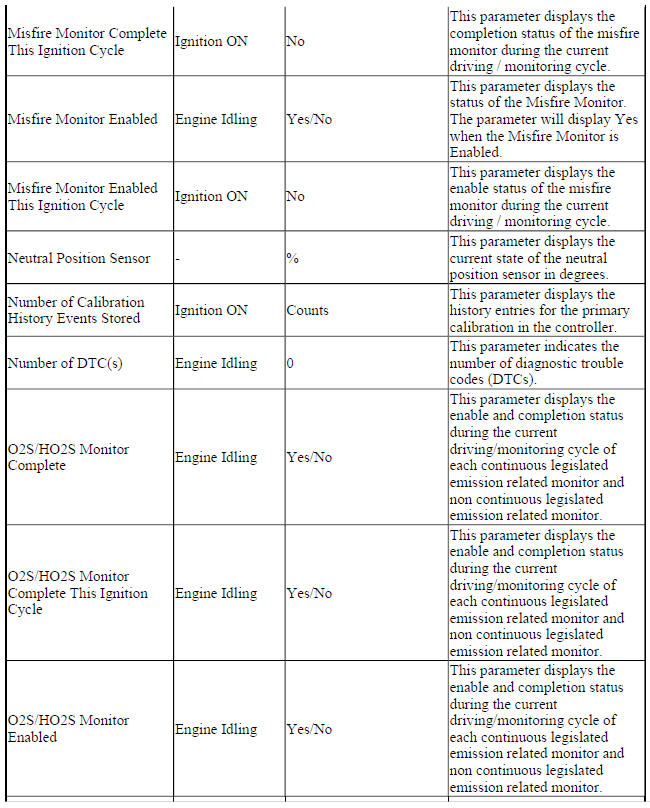

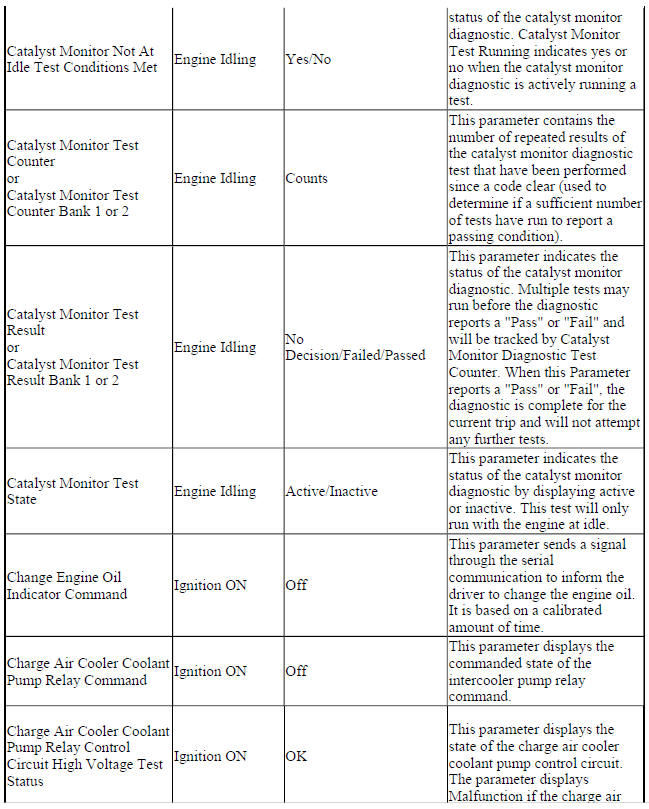

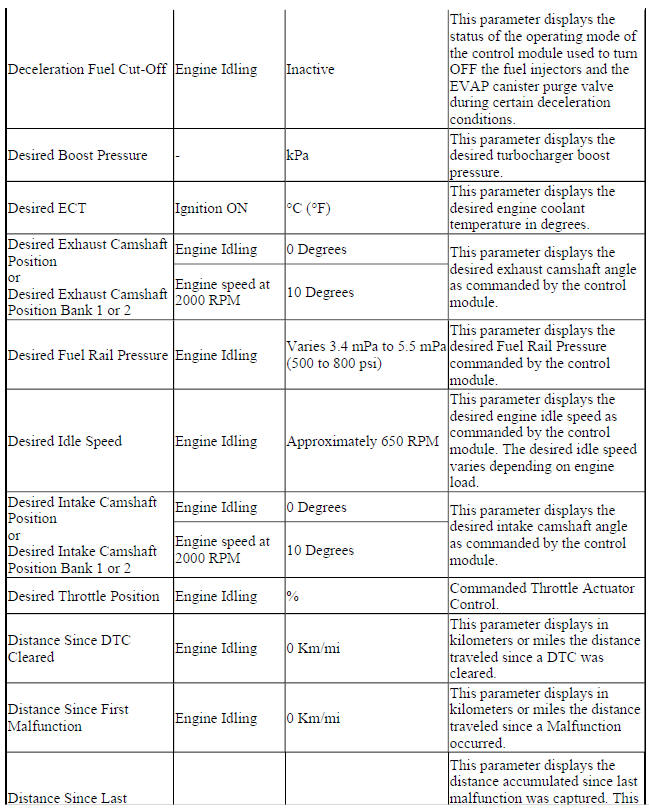

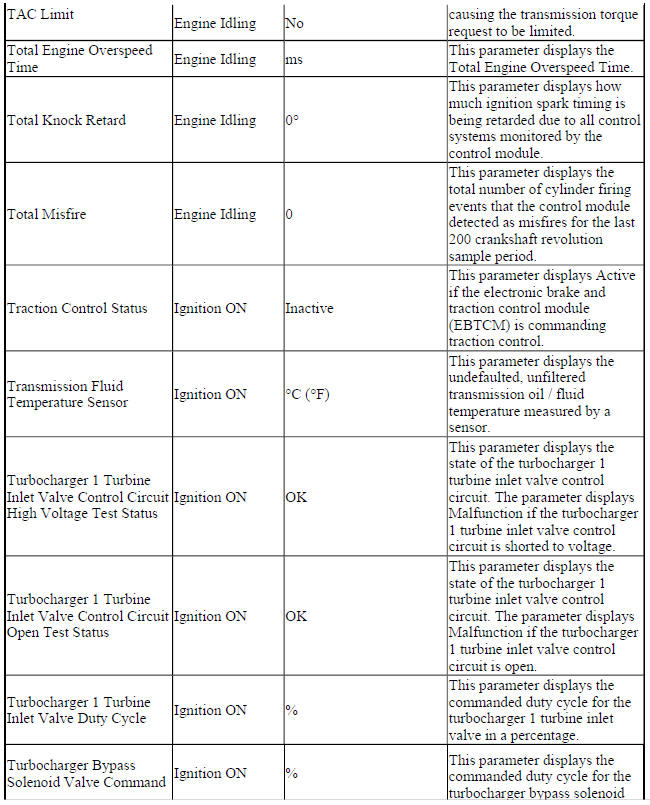

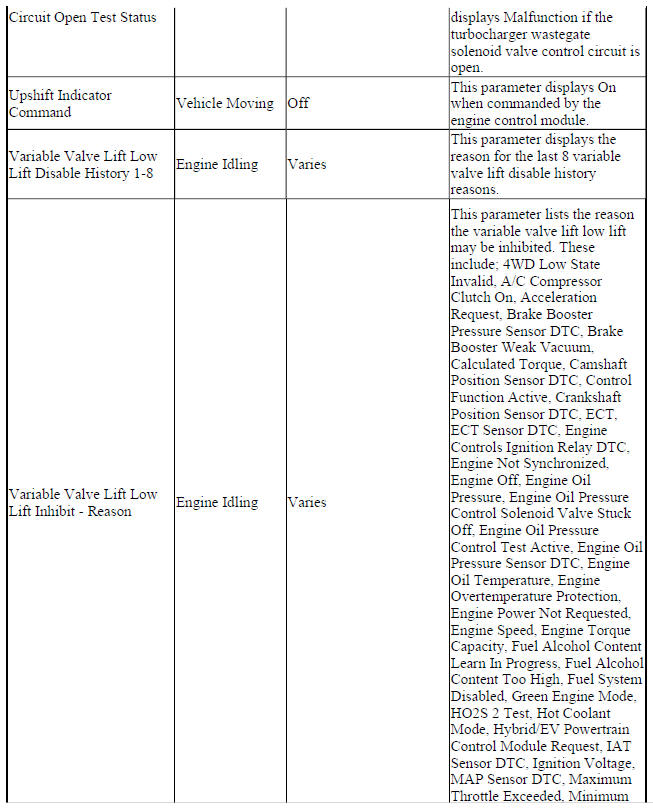

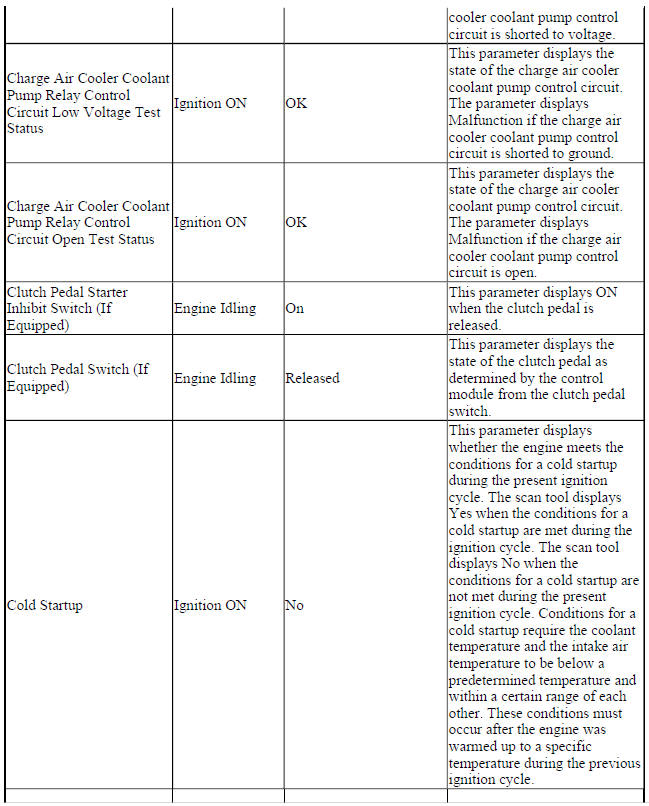

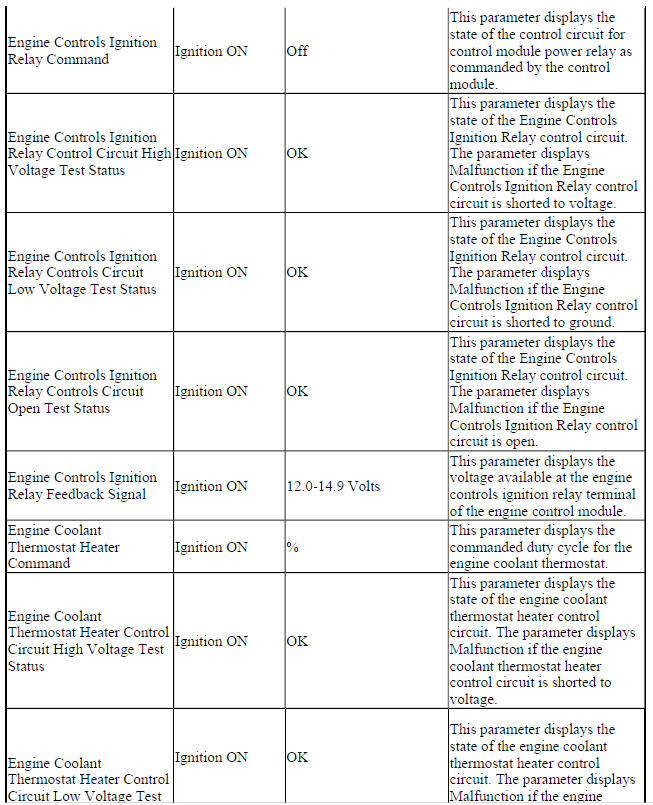

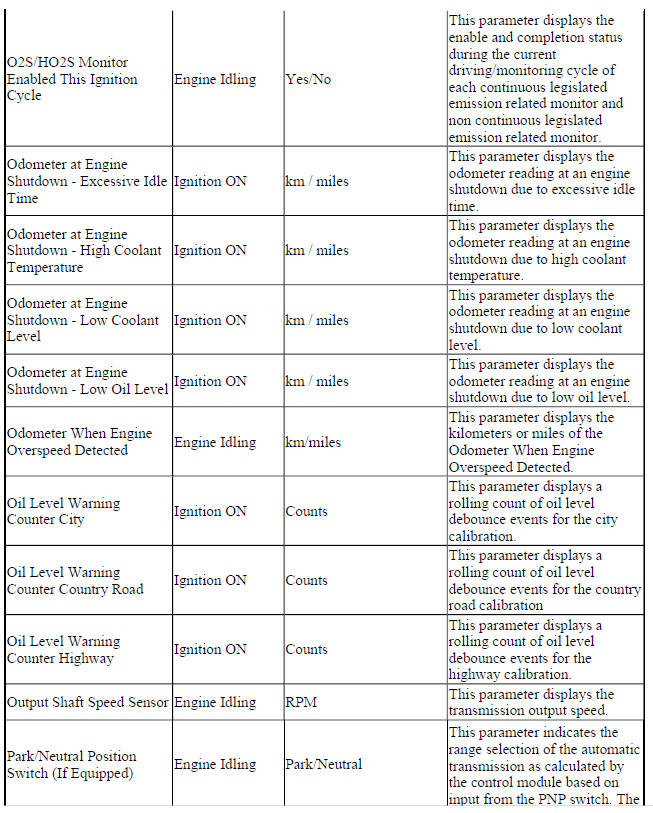

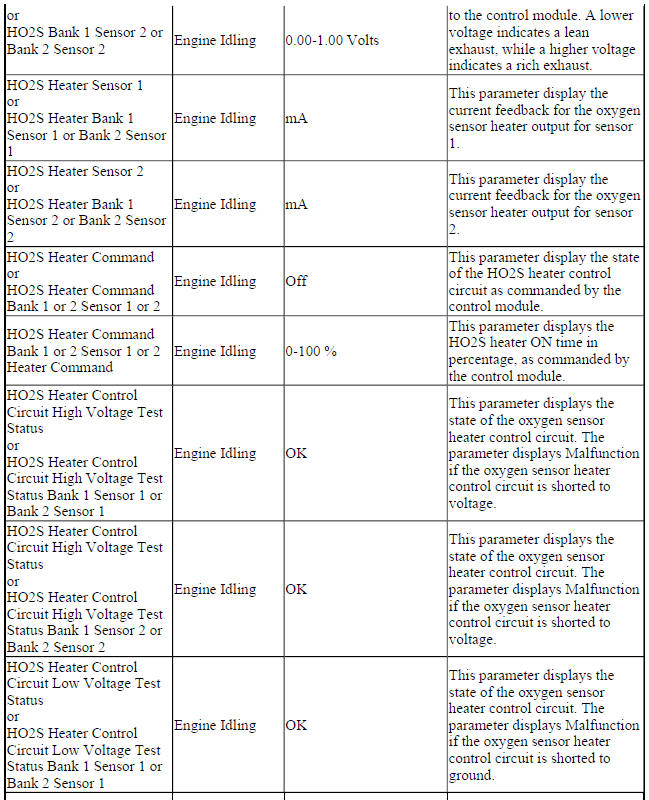

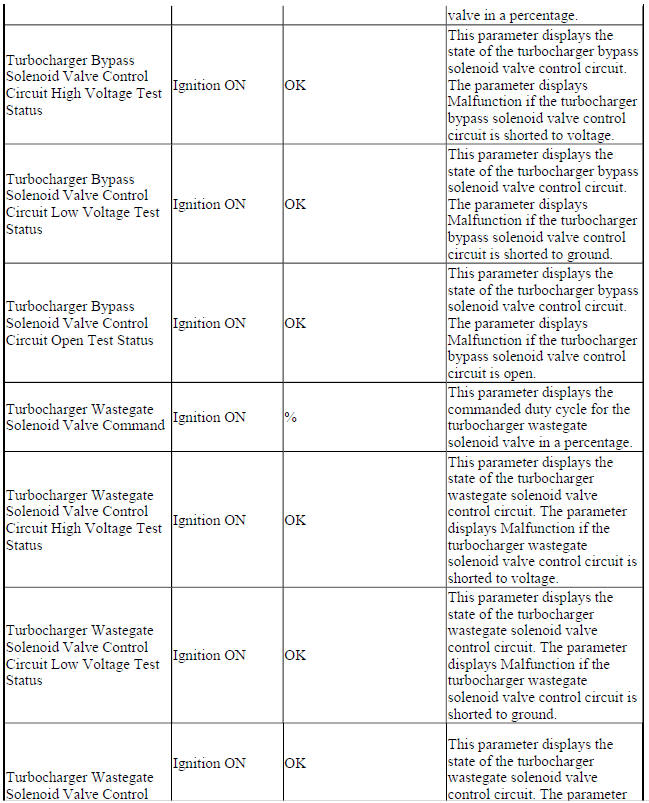

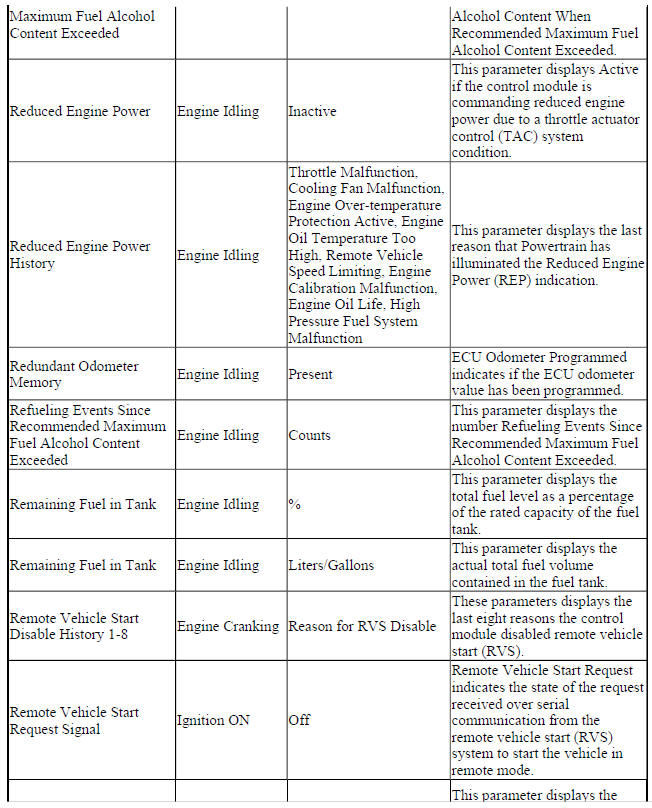

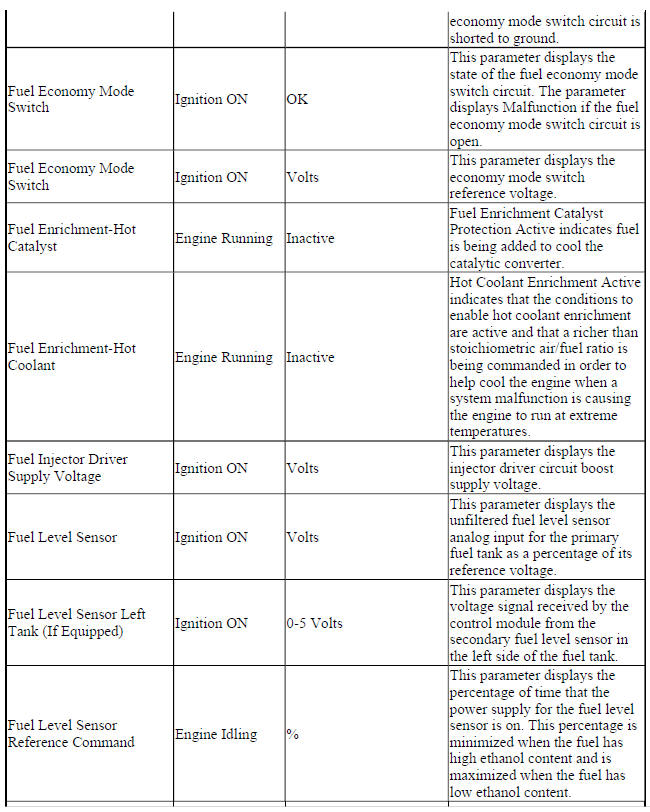

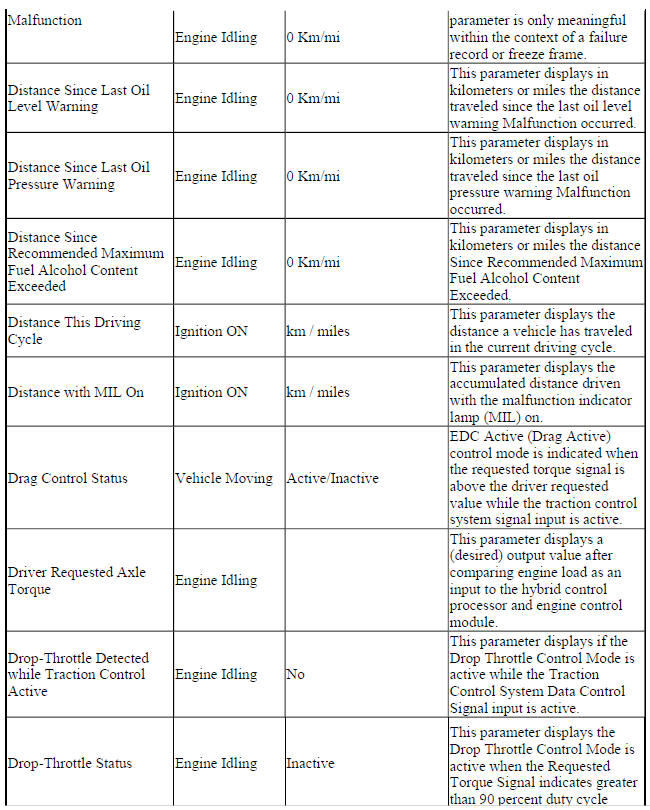

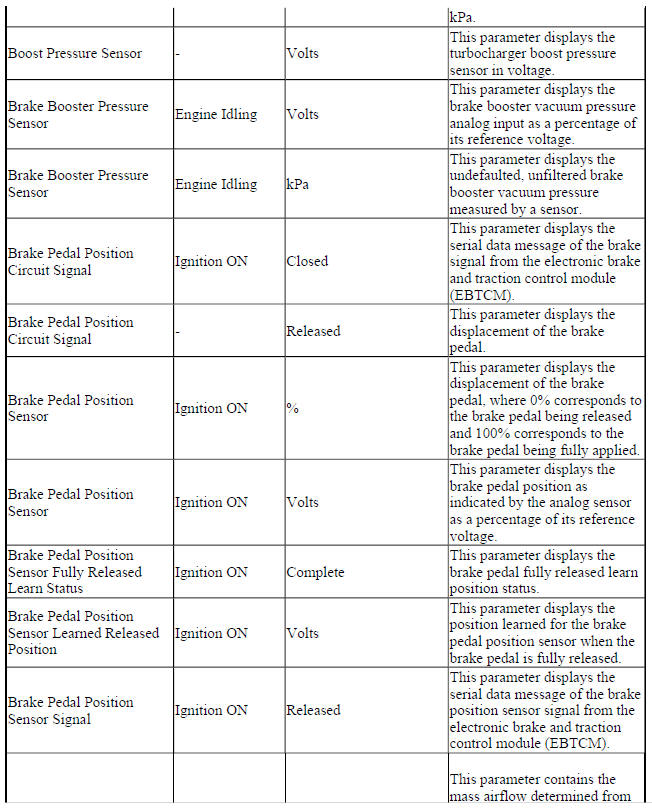

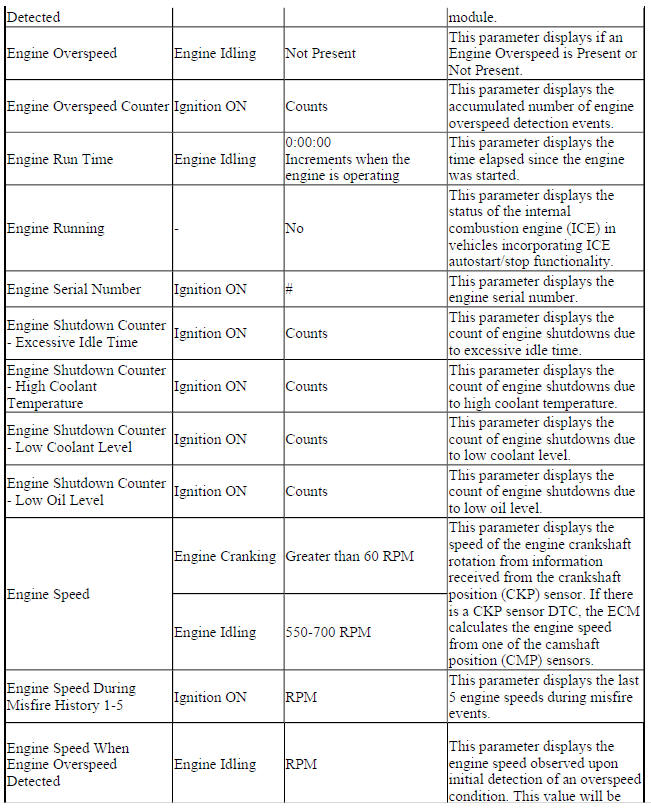

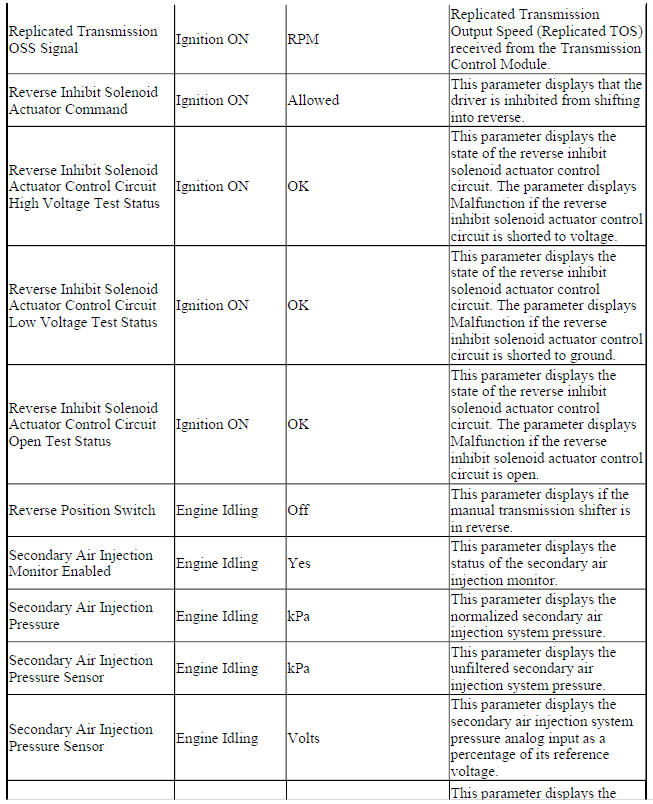

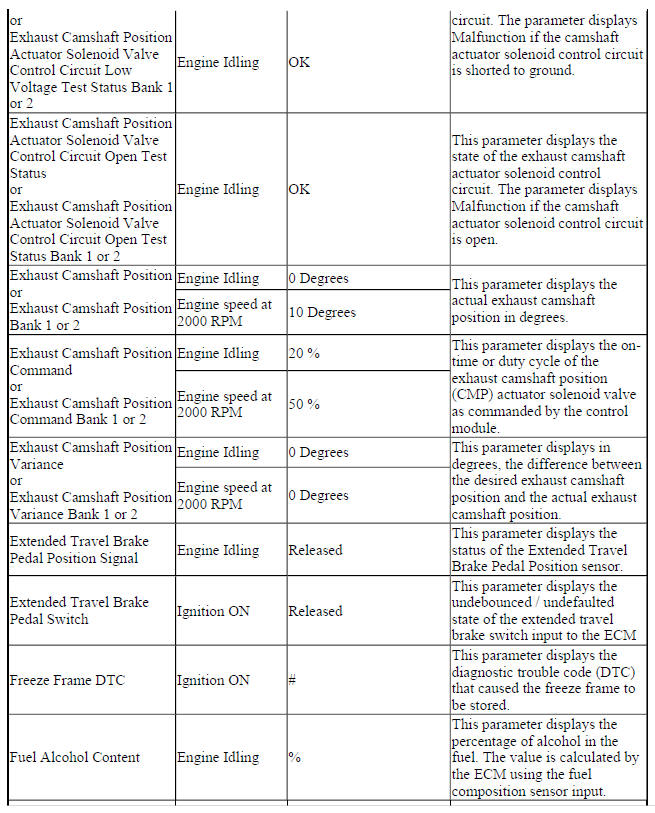

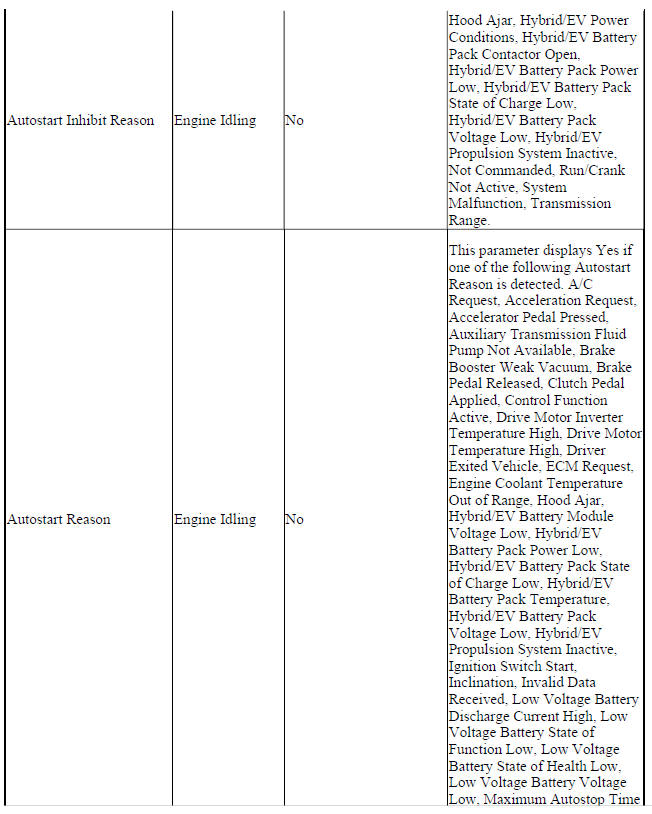

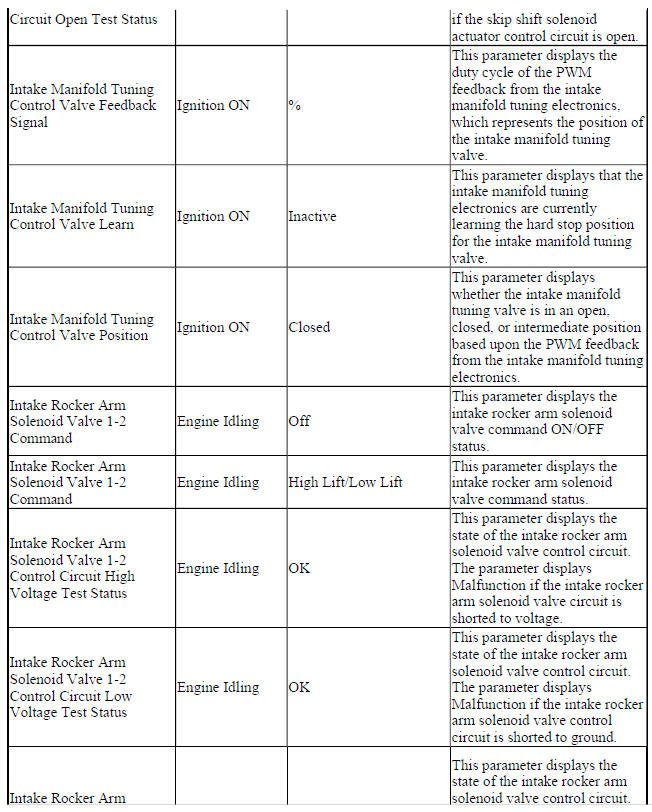

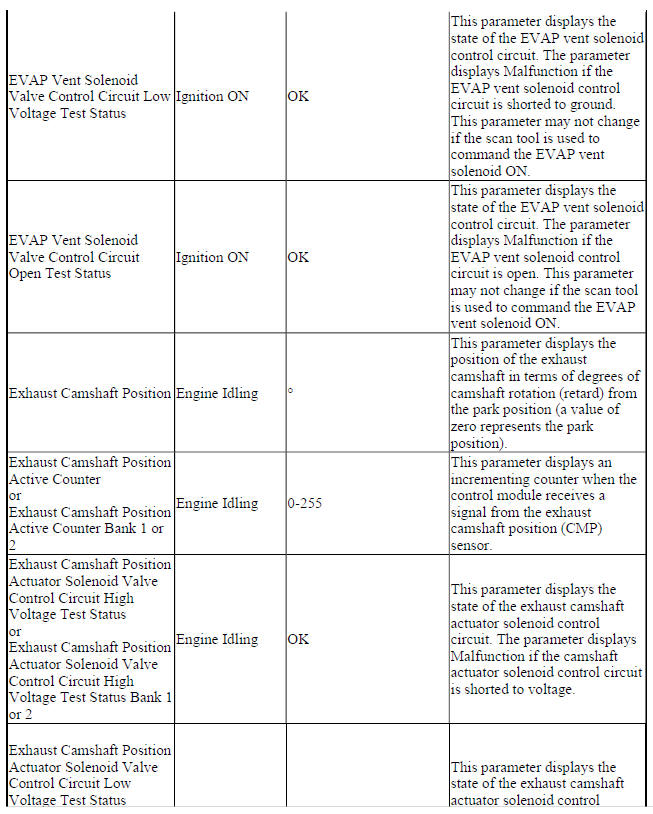

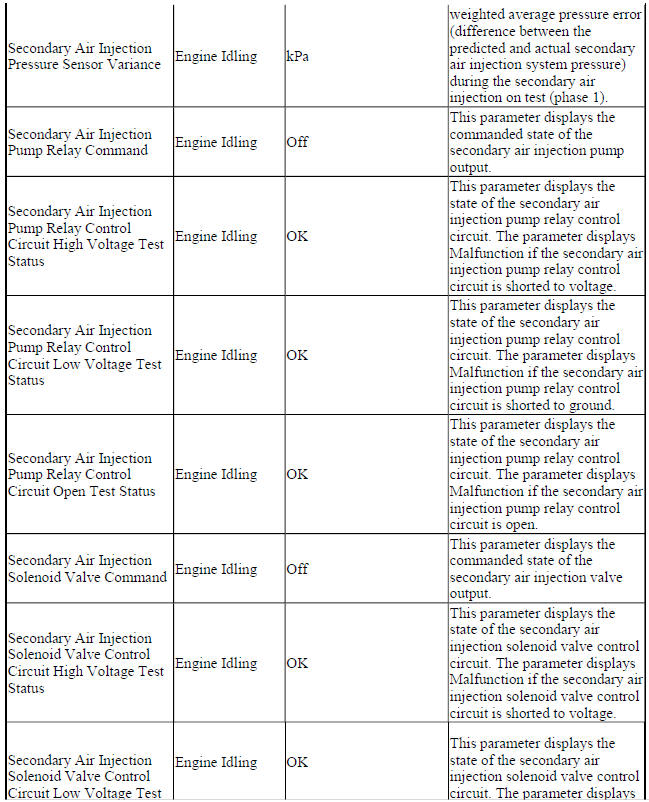

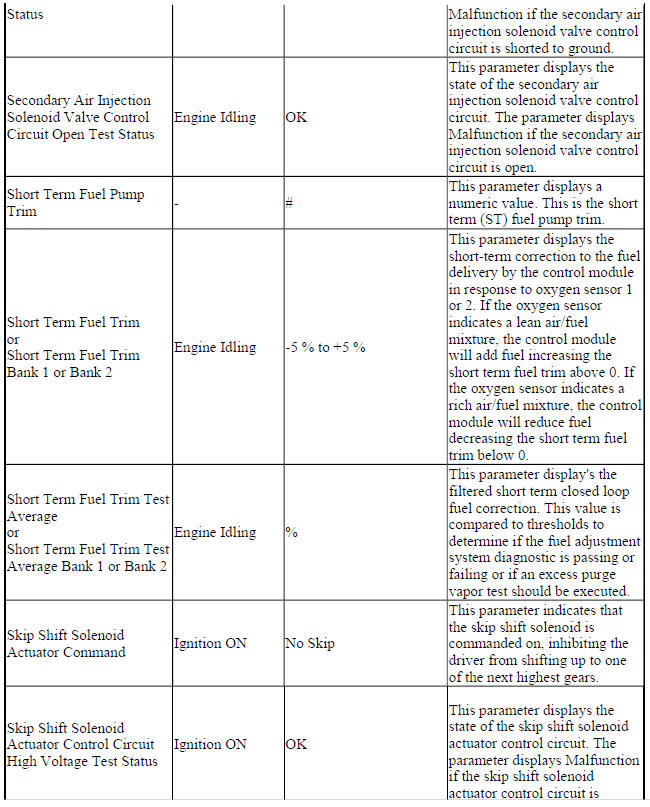

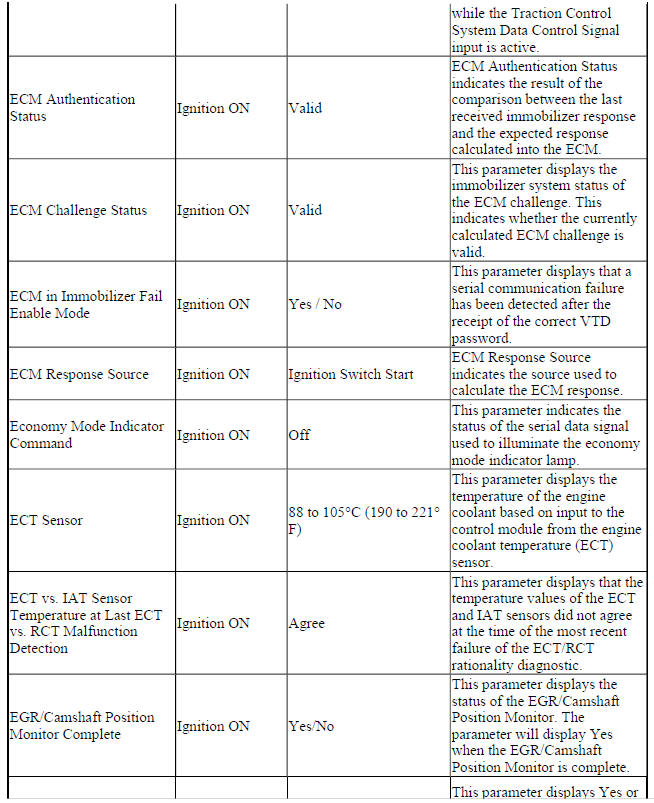

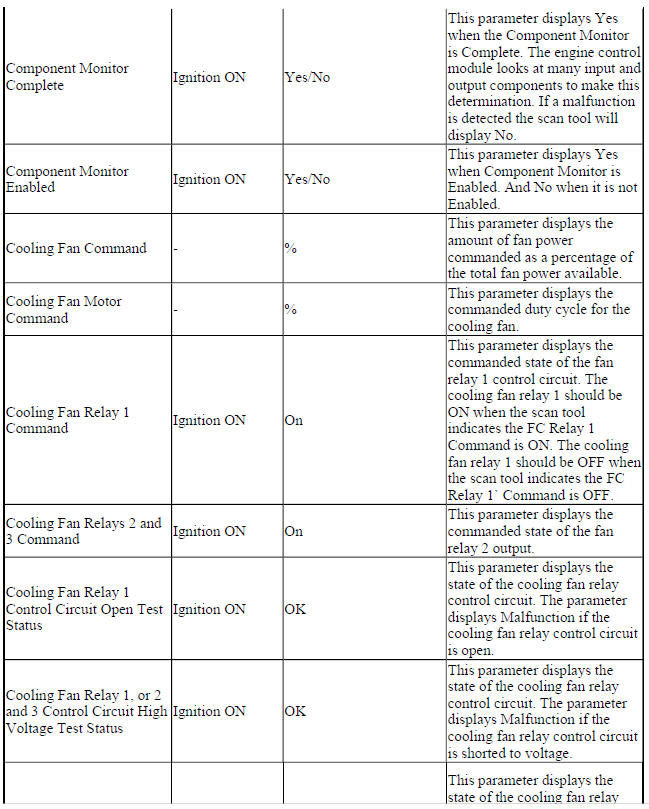

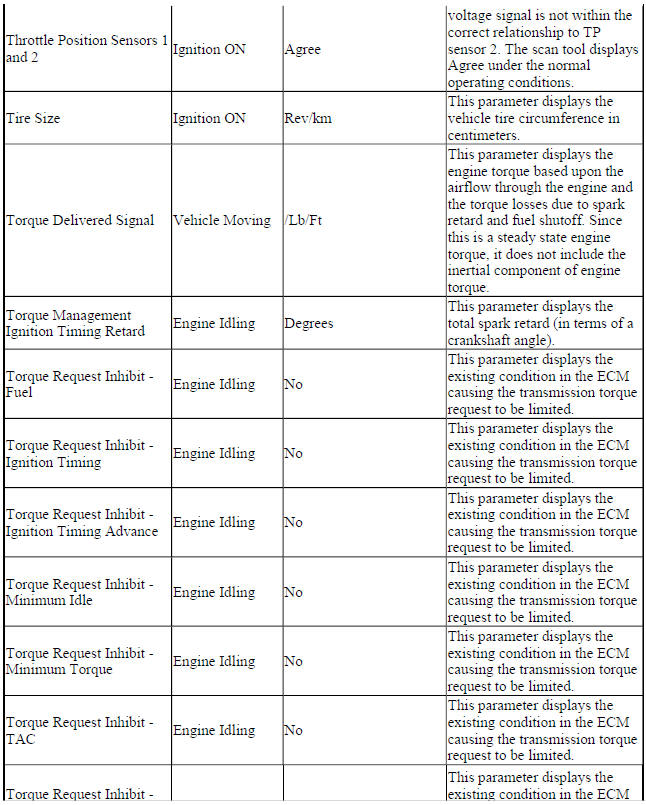

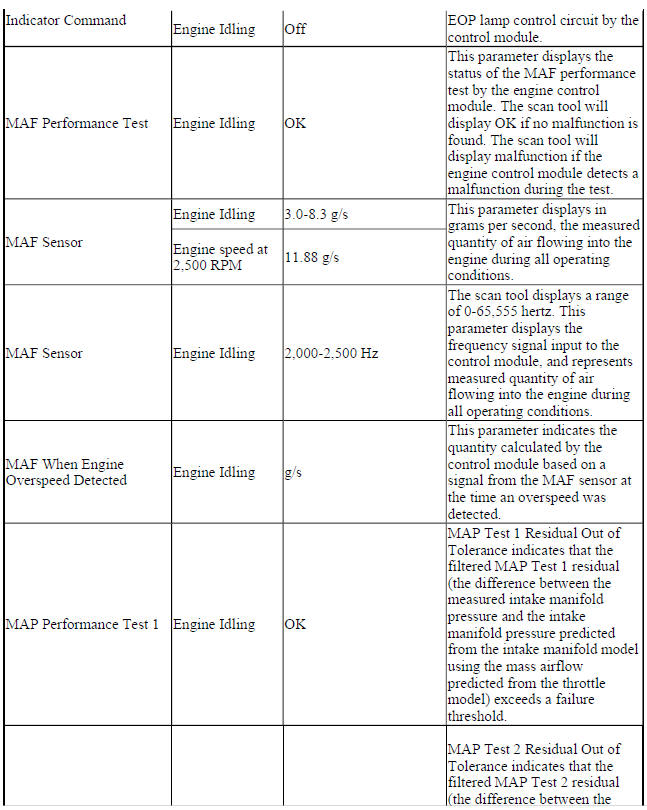

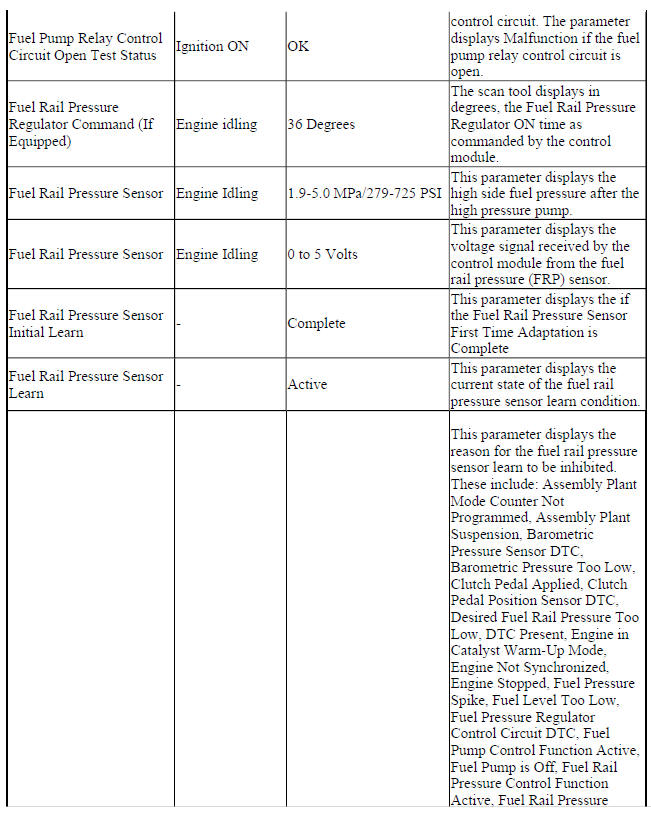

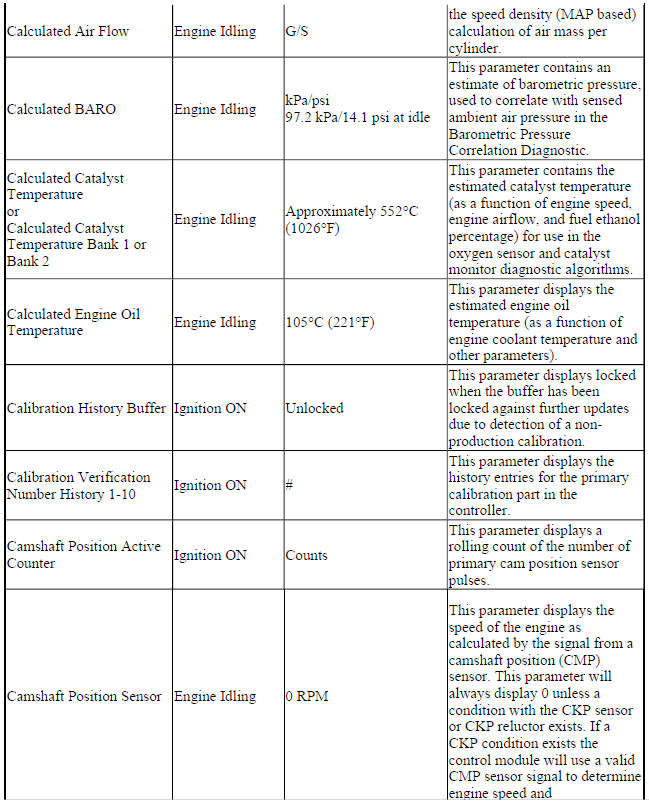

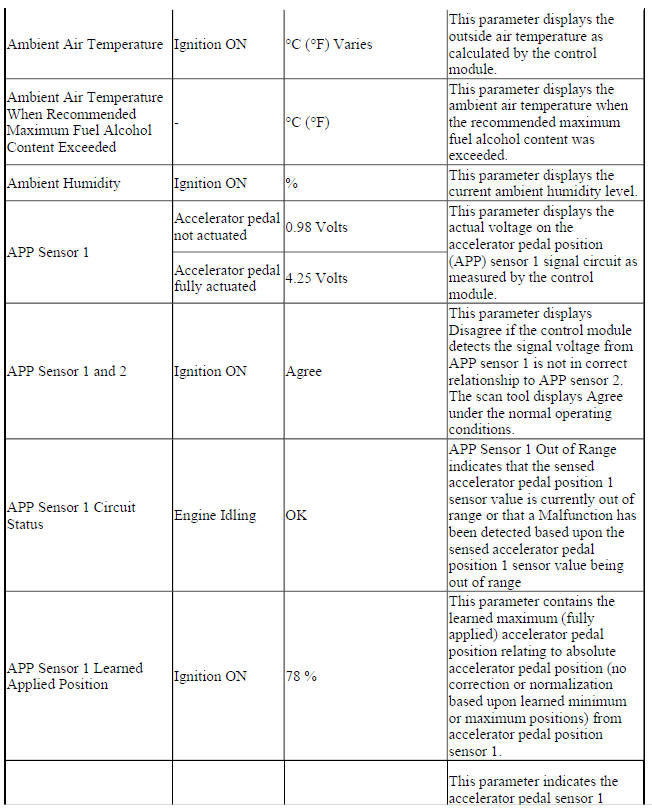

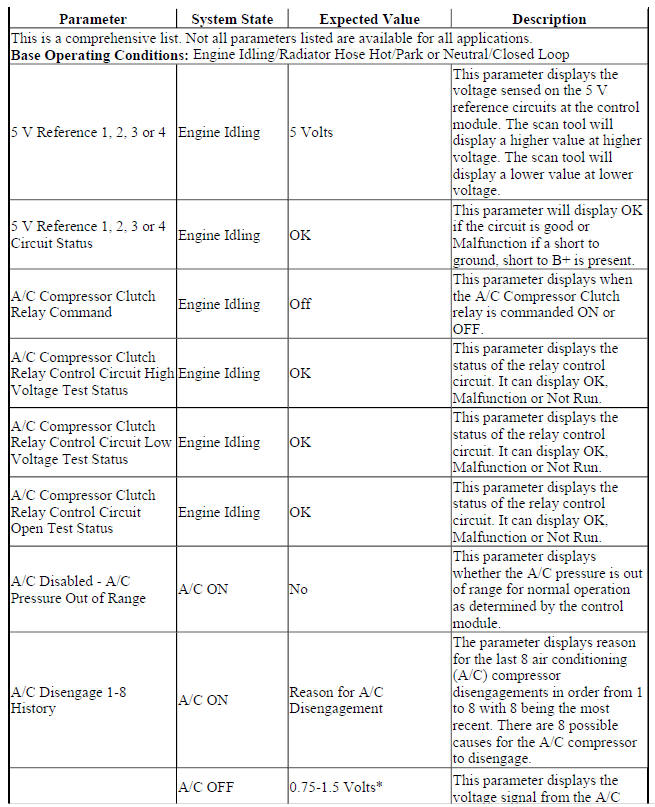

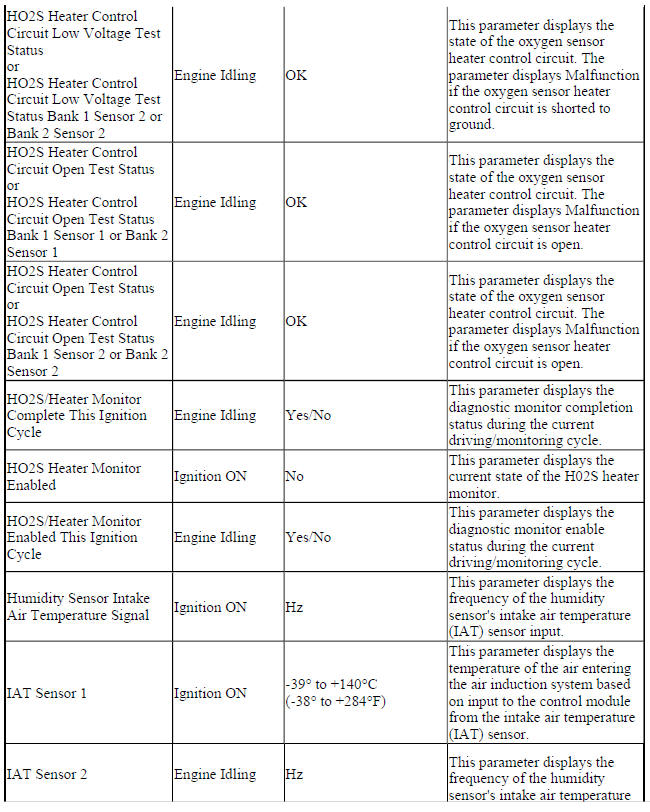

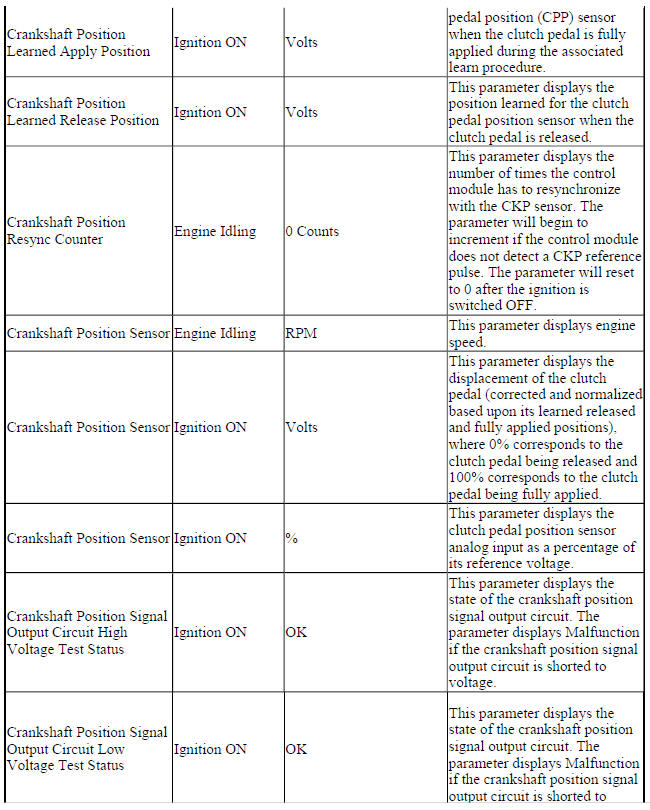

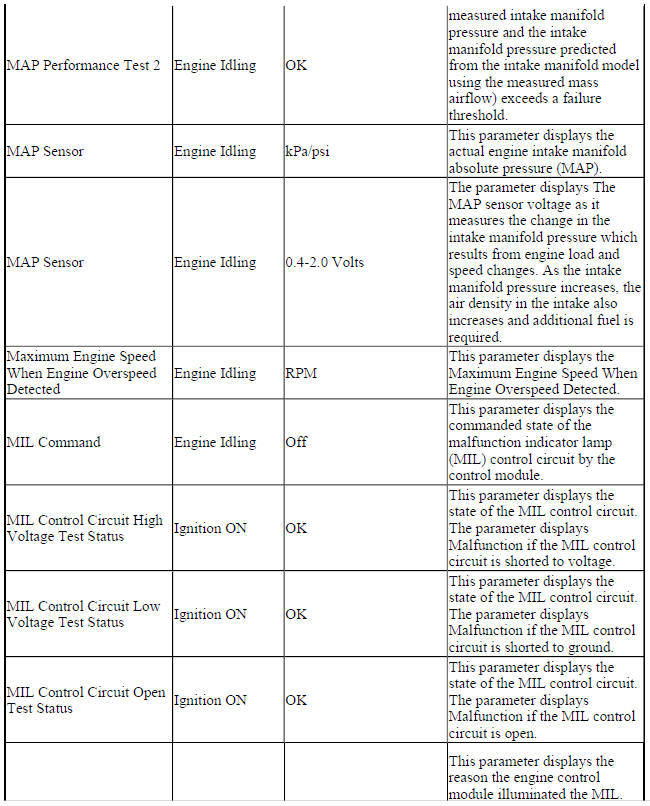

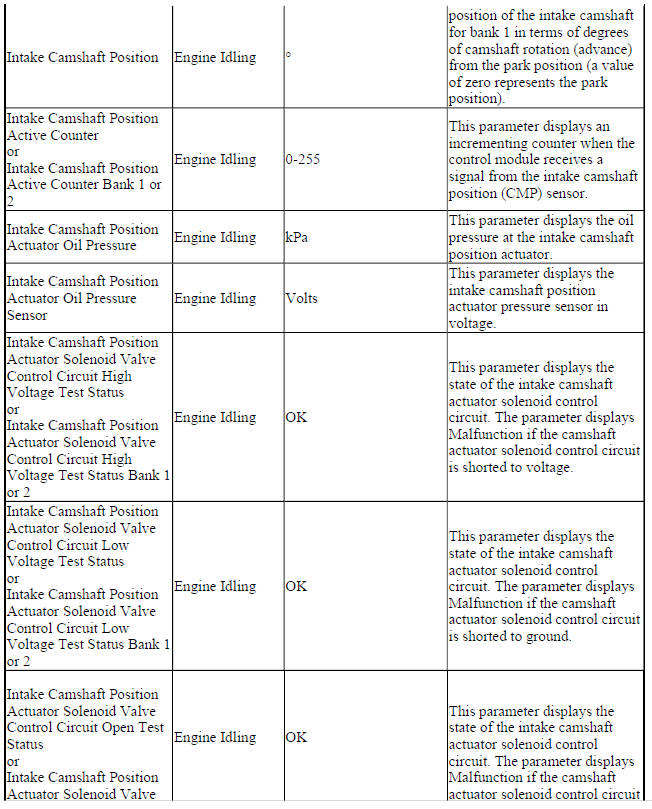

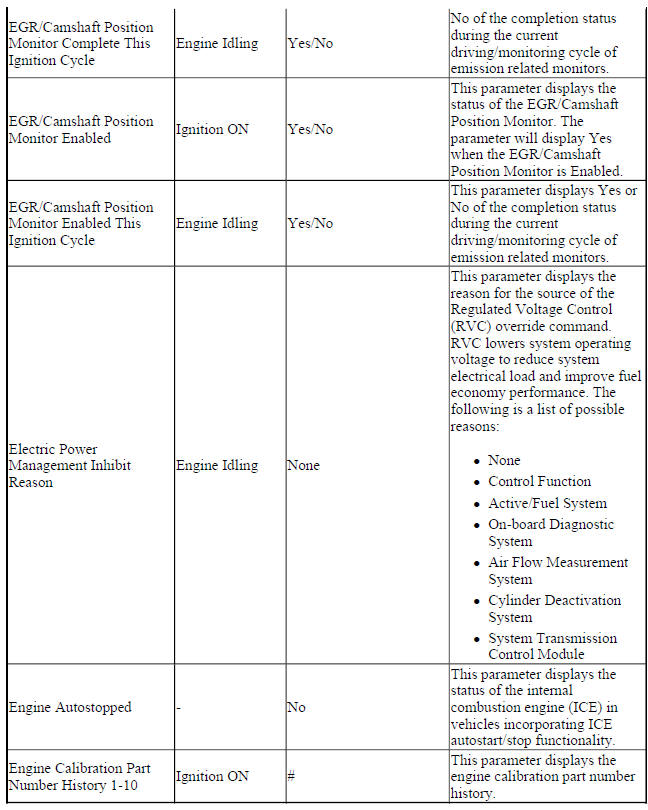

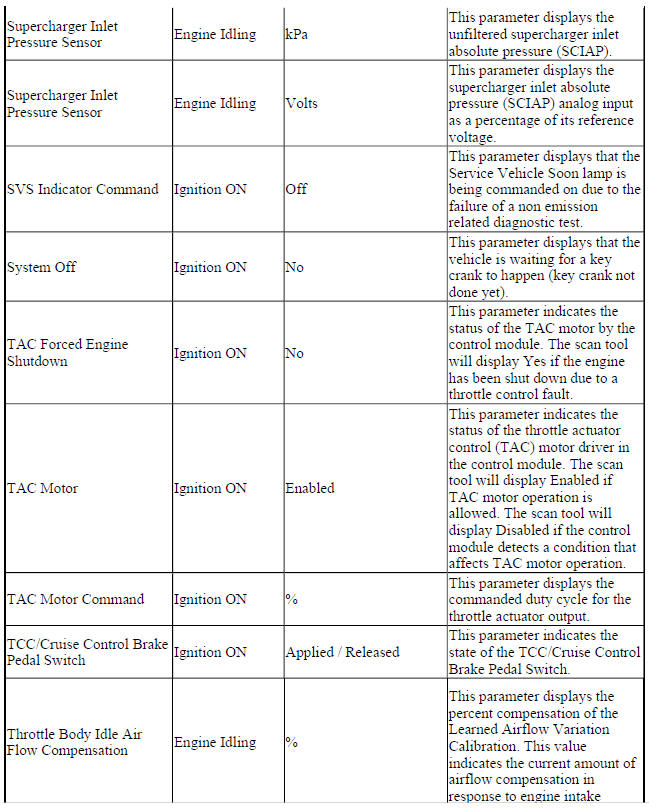

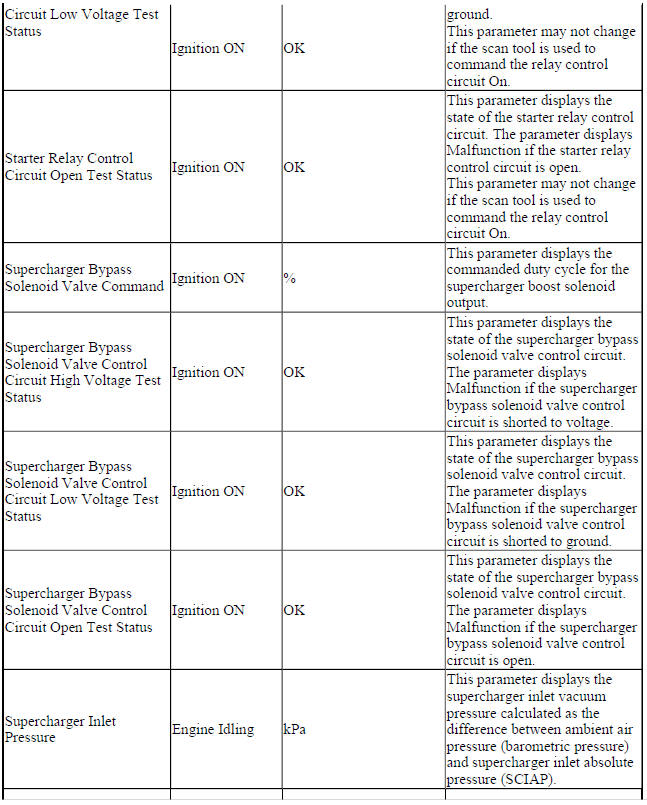

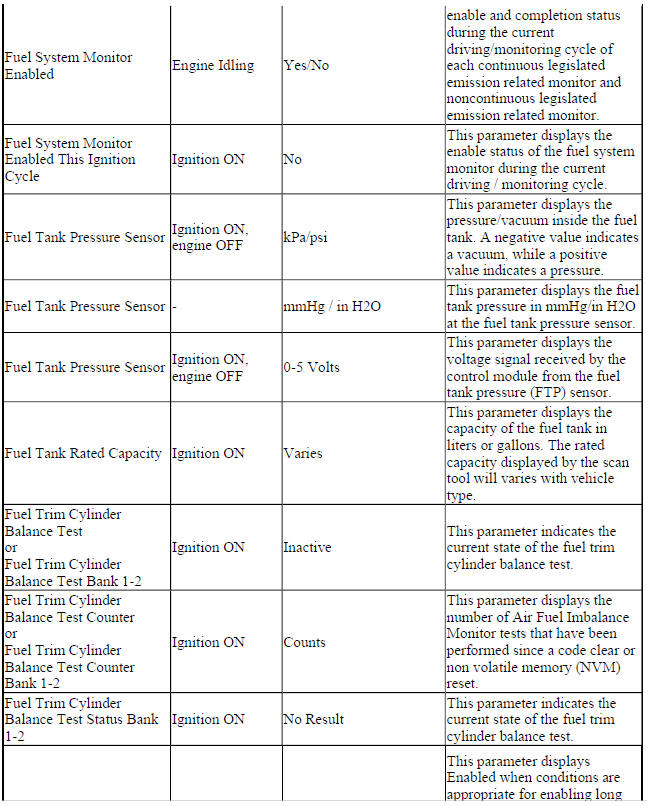

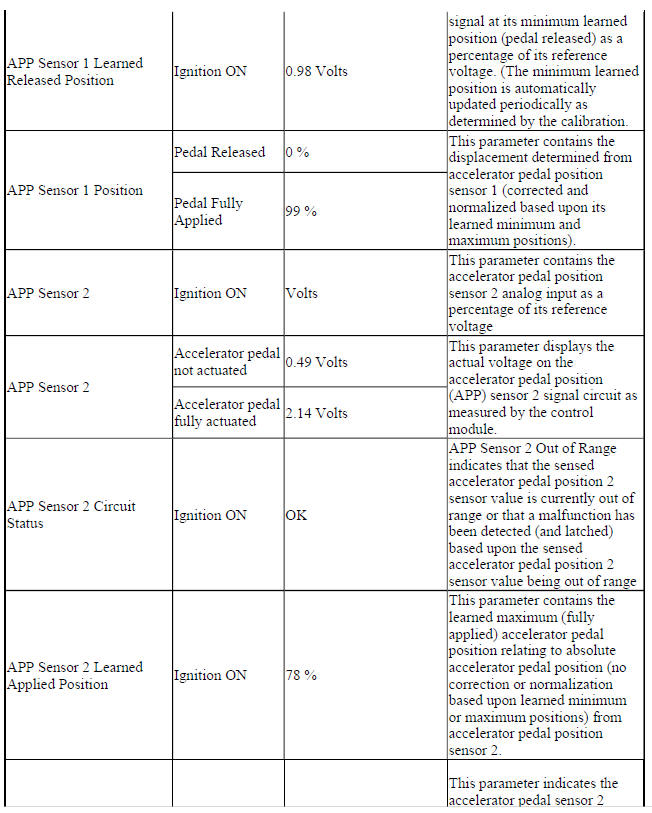

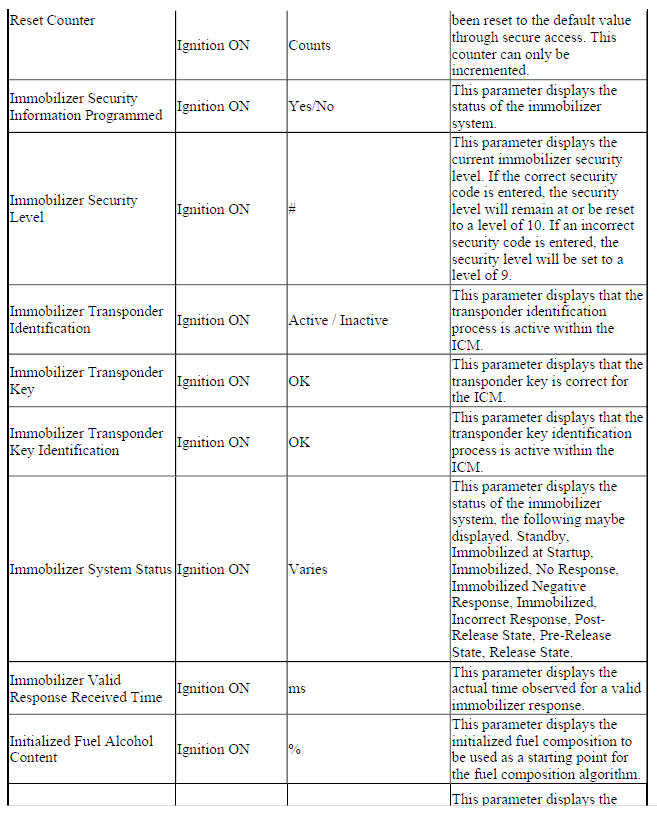

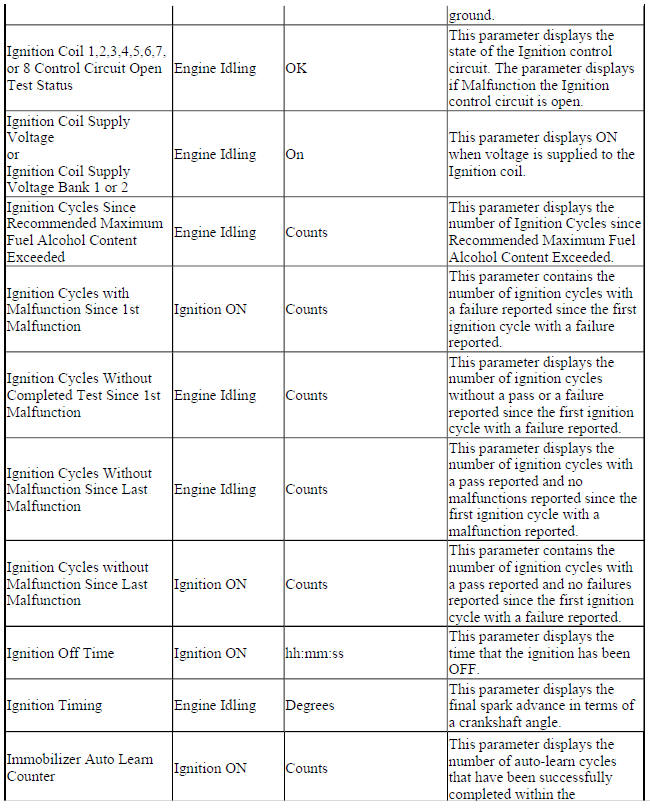

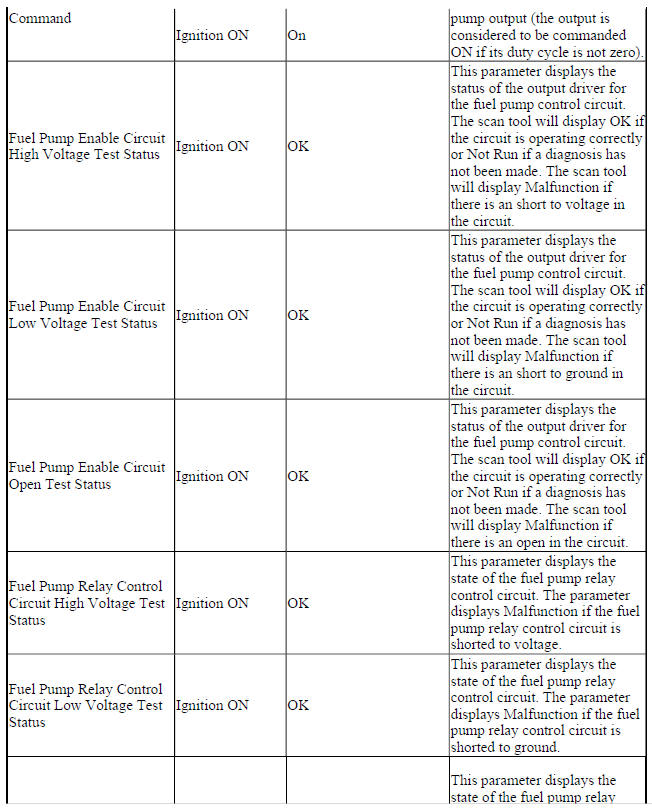

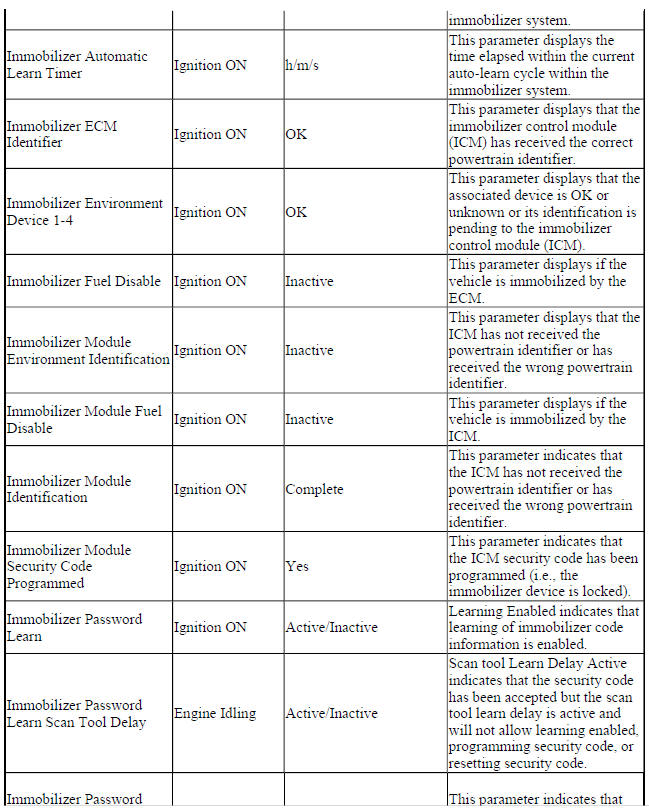

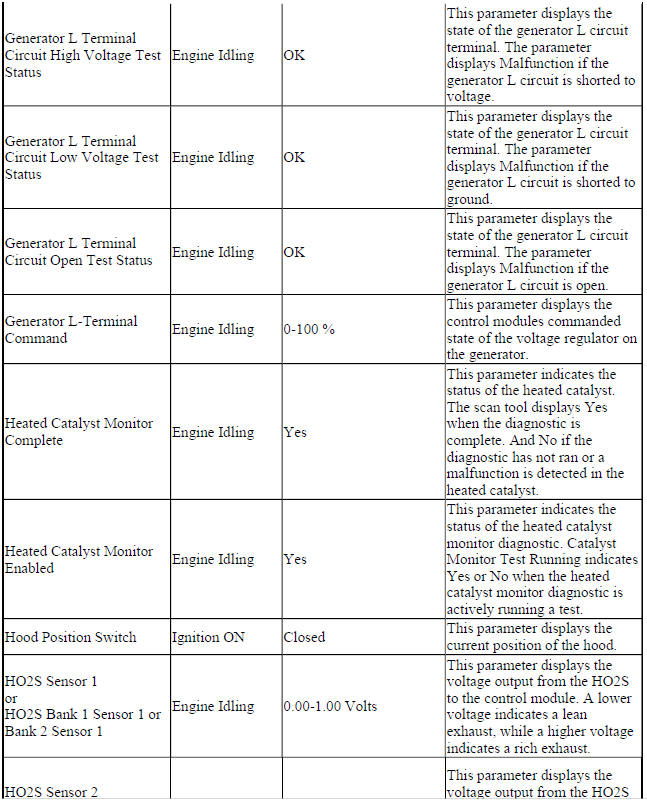

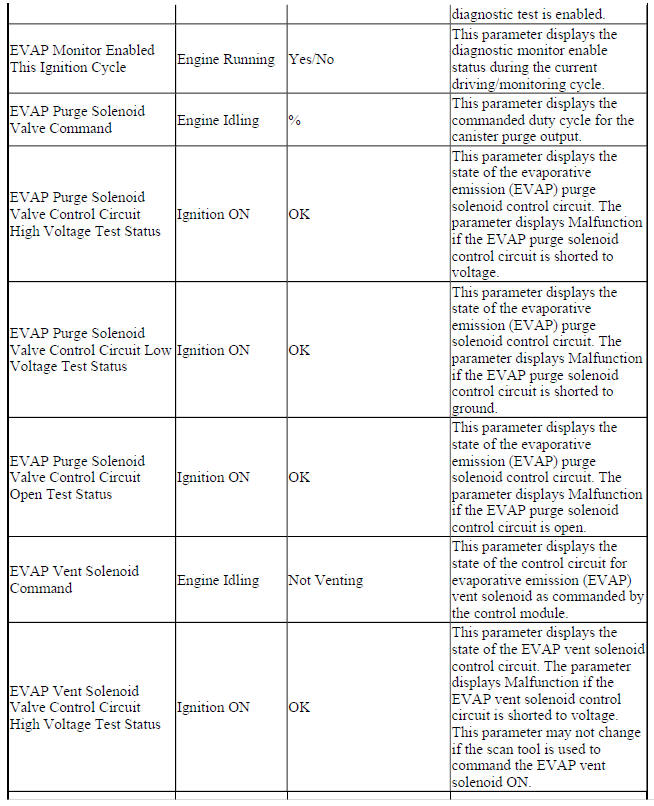

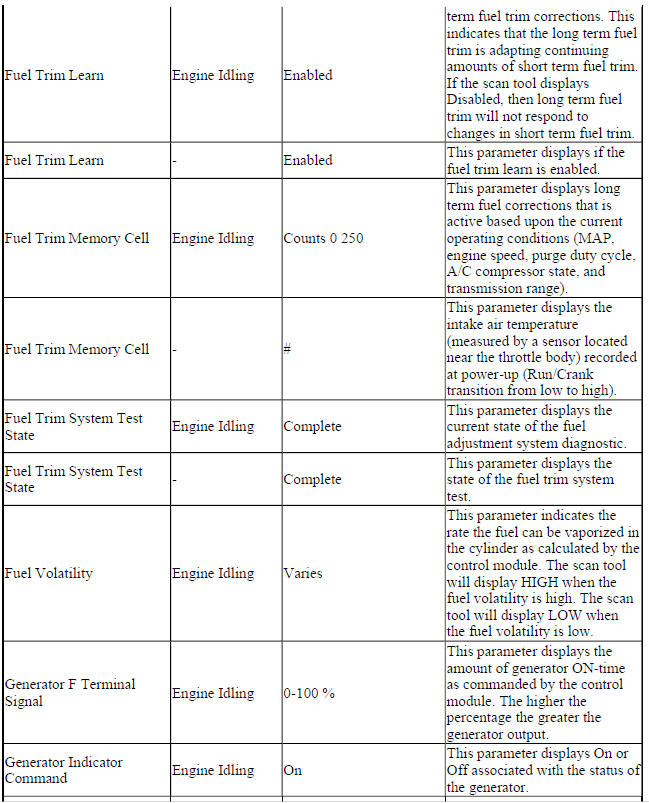

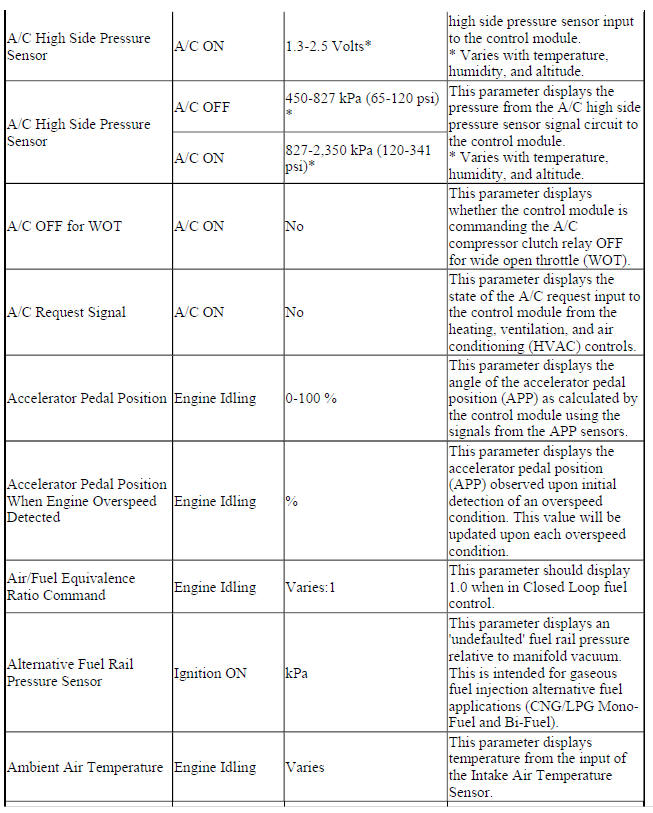

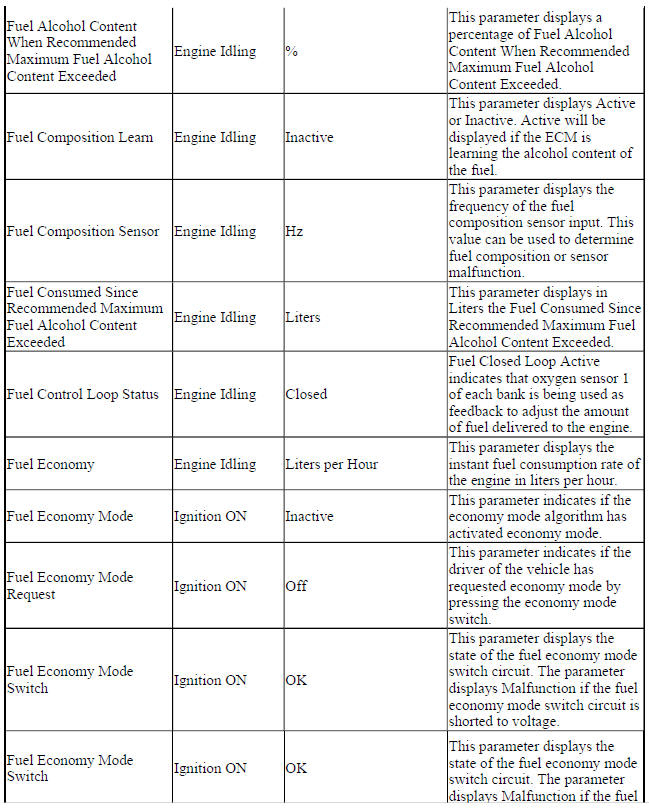

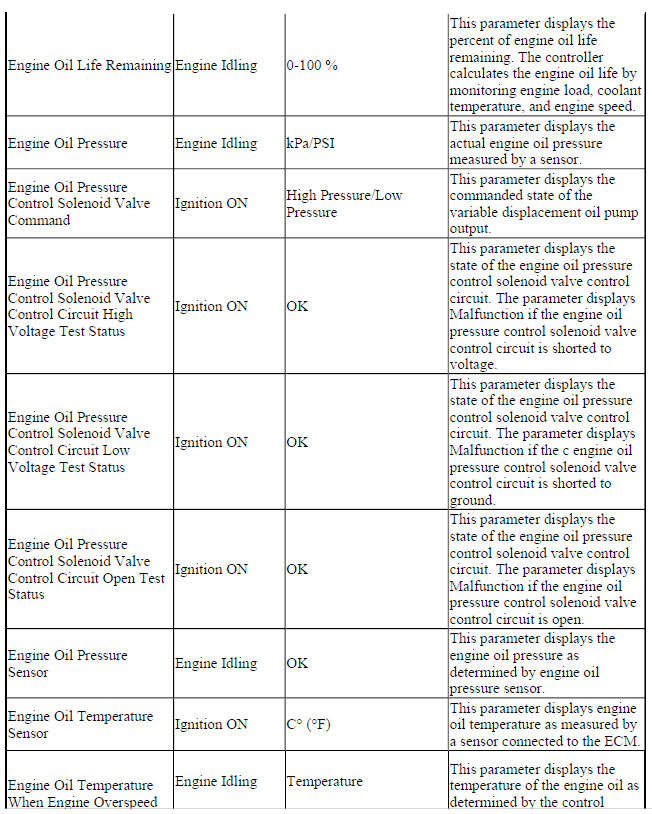

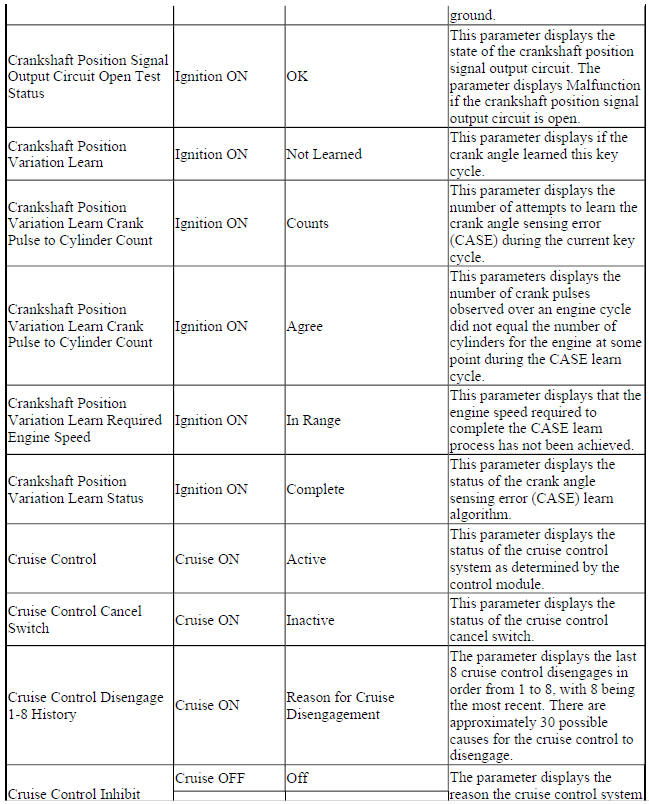

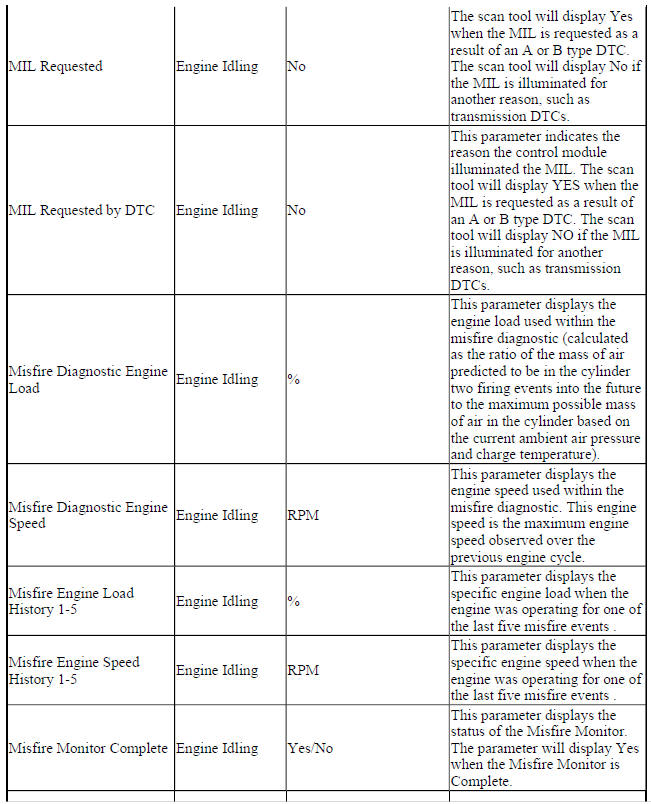

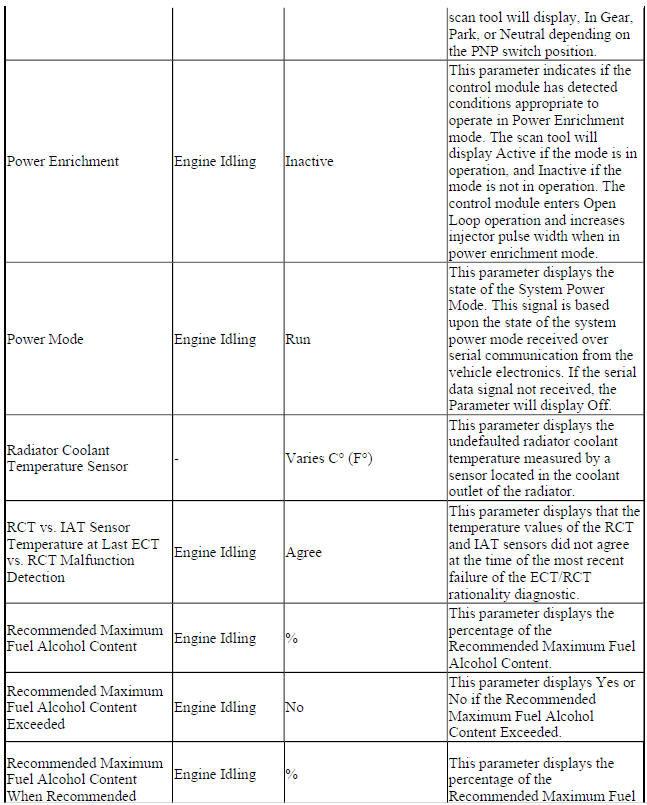

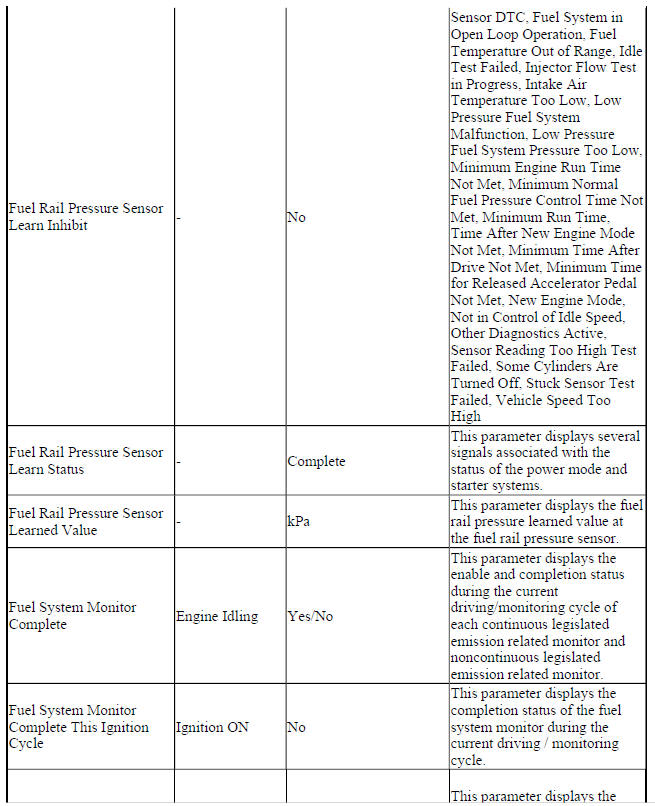

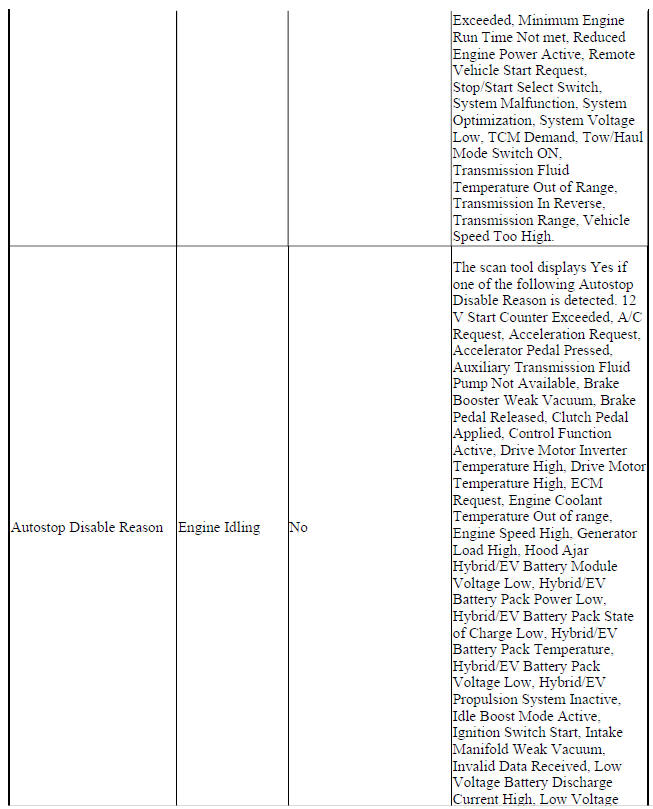

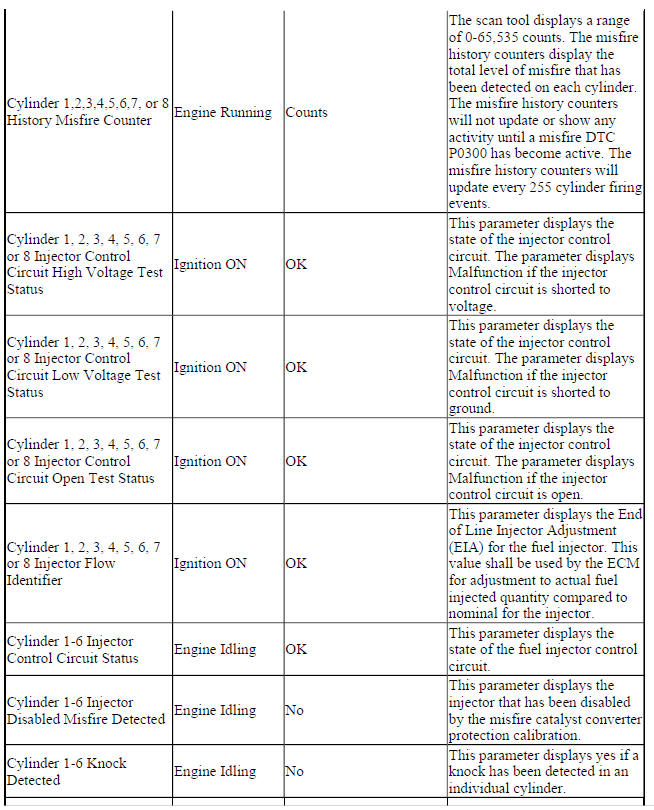

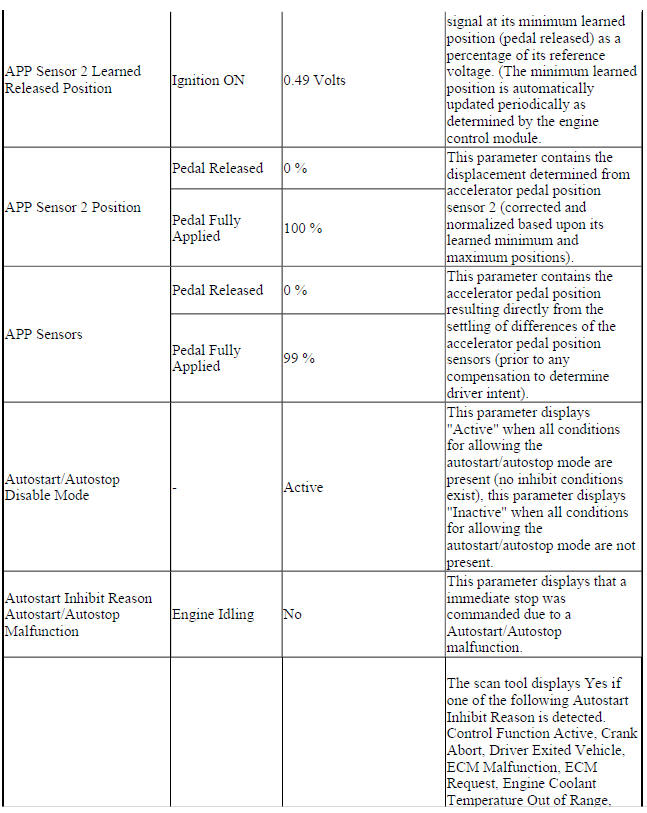

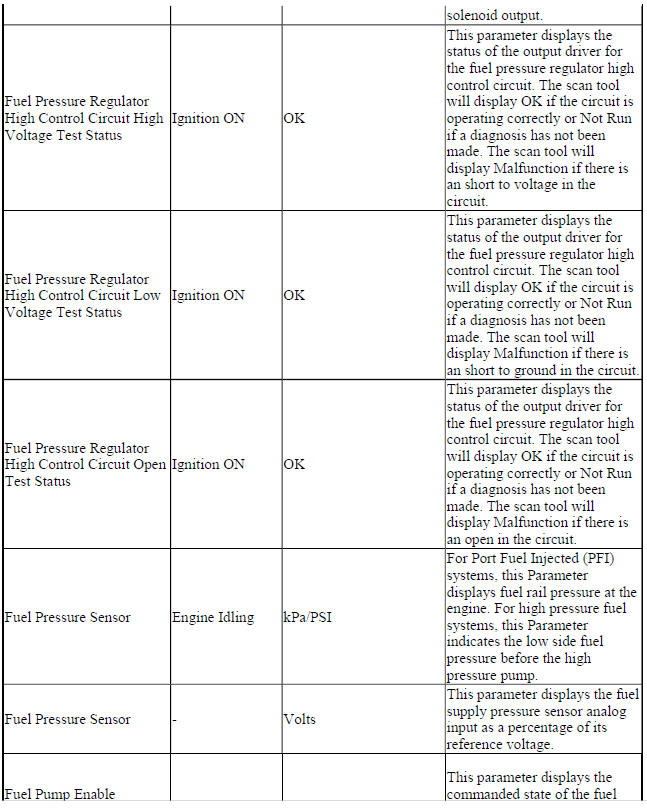

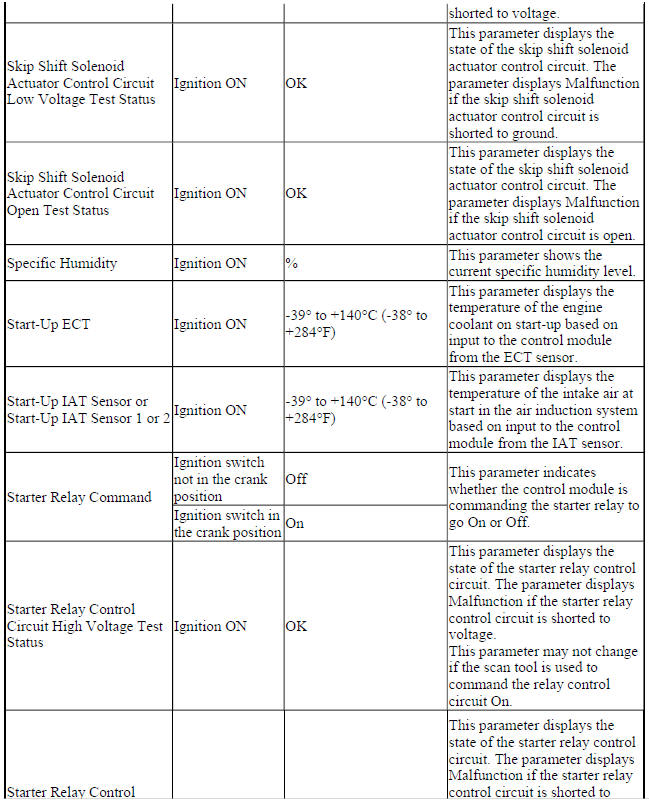

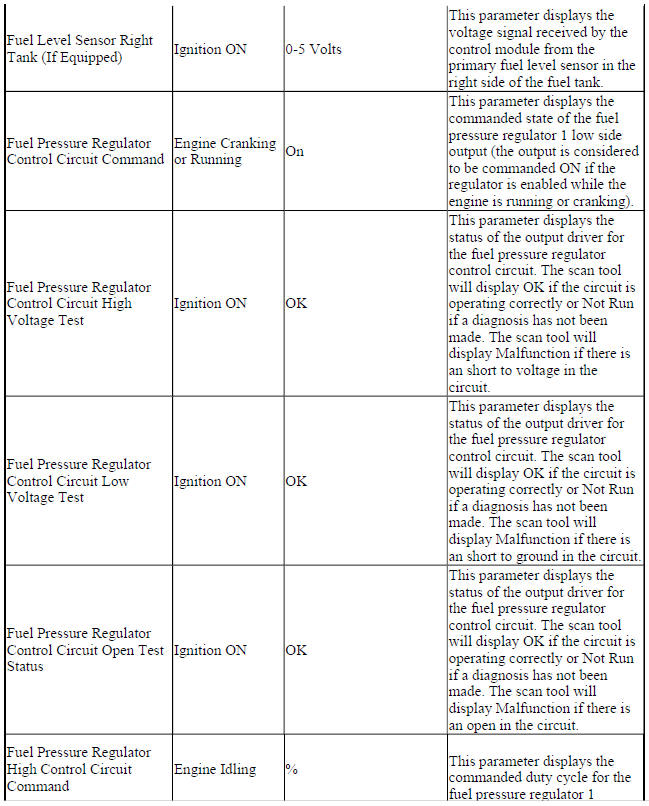

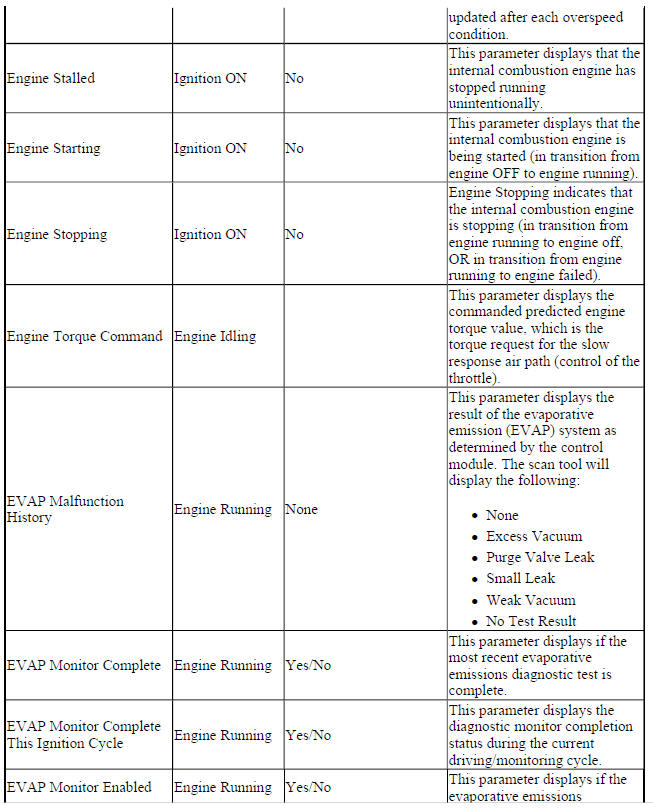

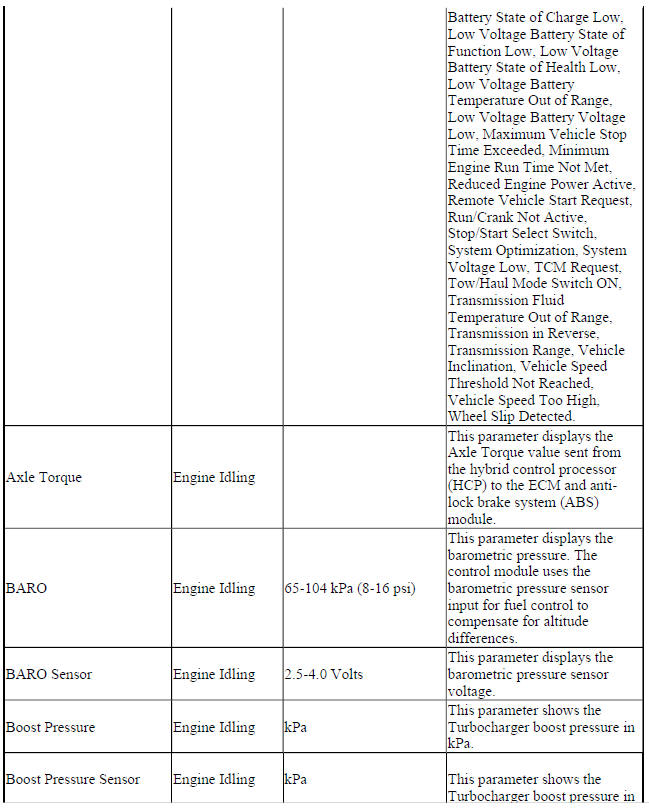

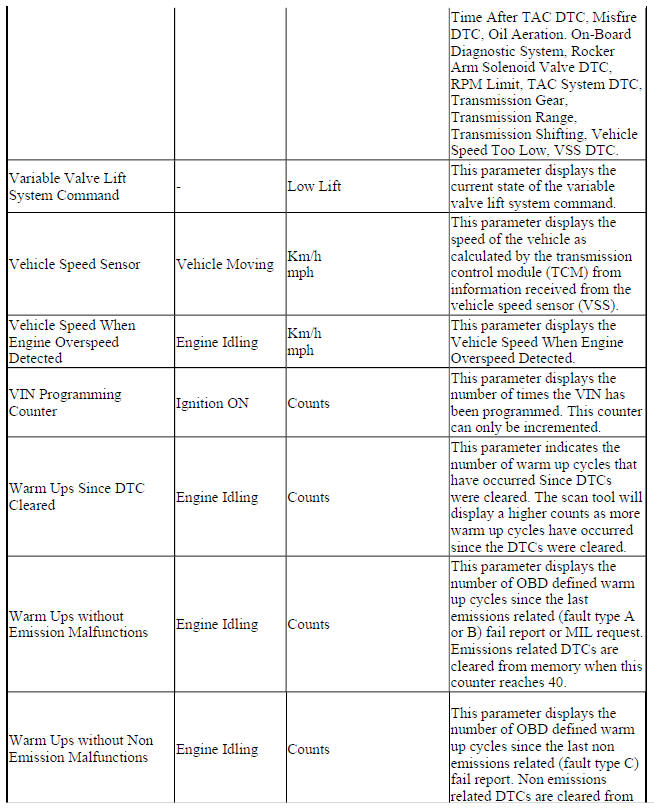

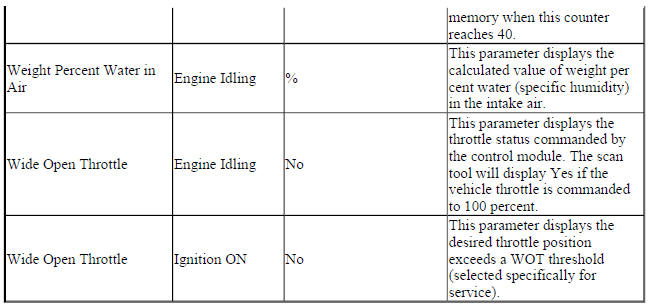

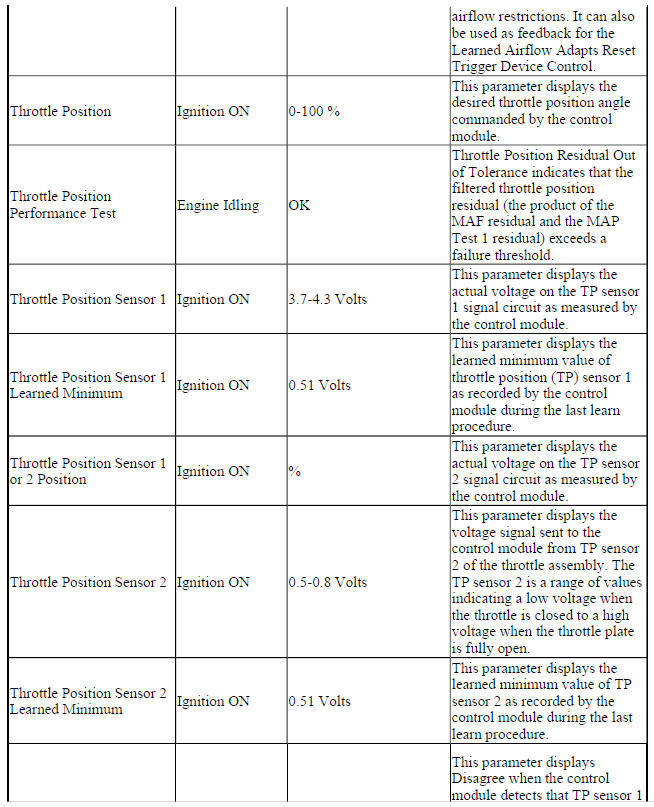

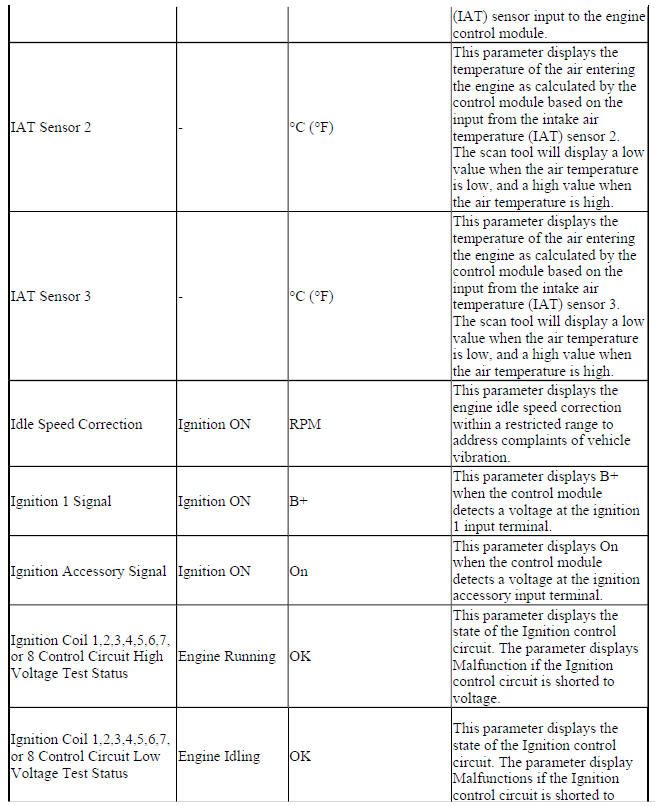

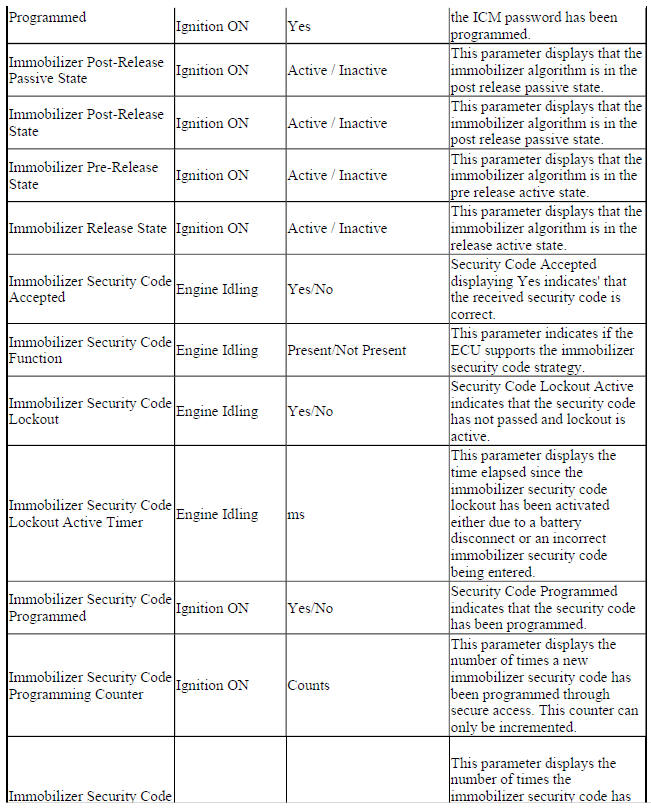

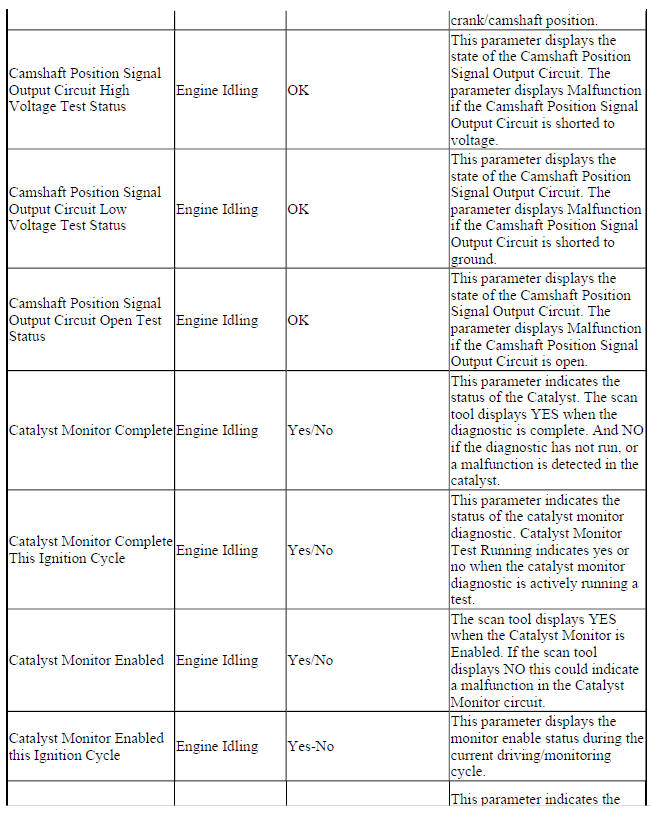

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

Engine Control Module Scan Tool Data

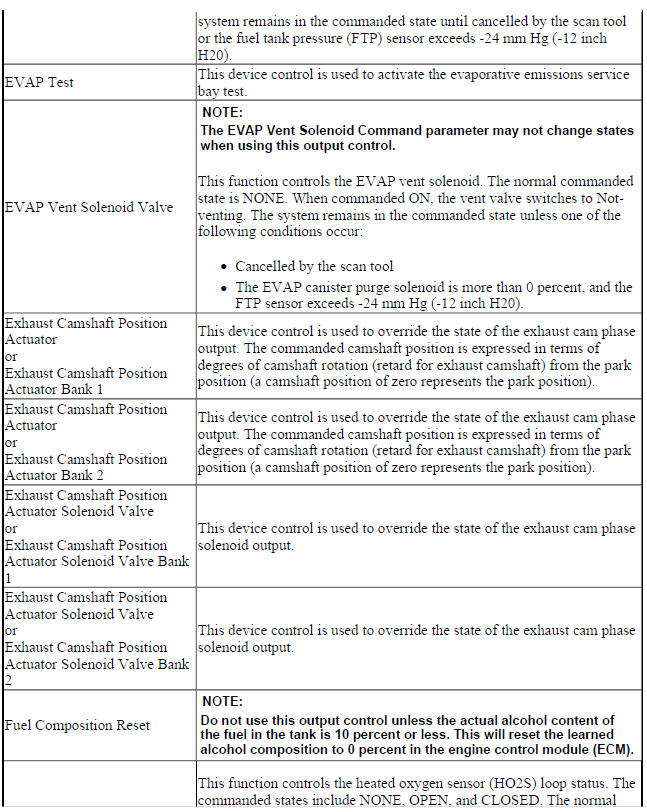

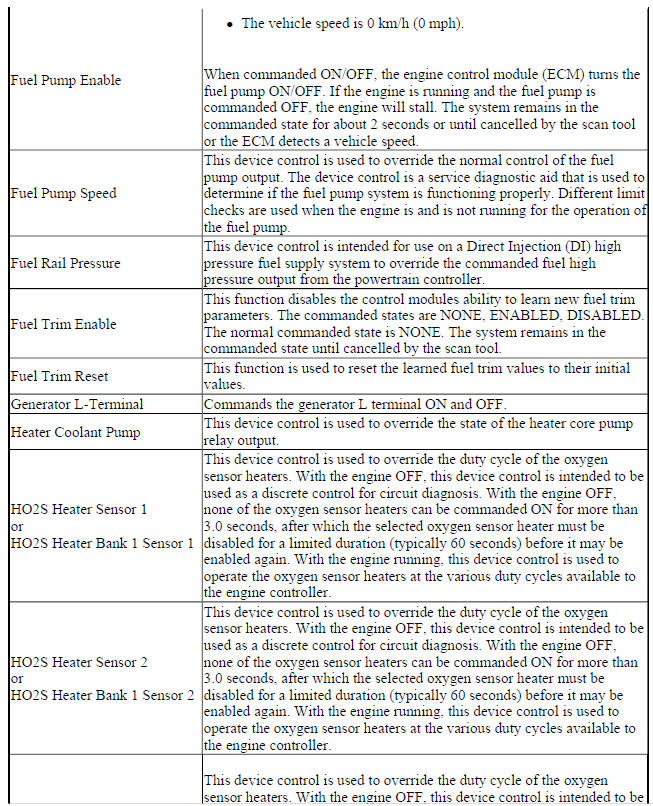

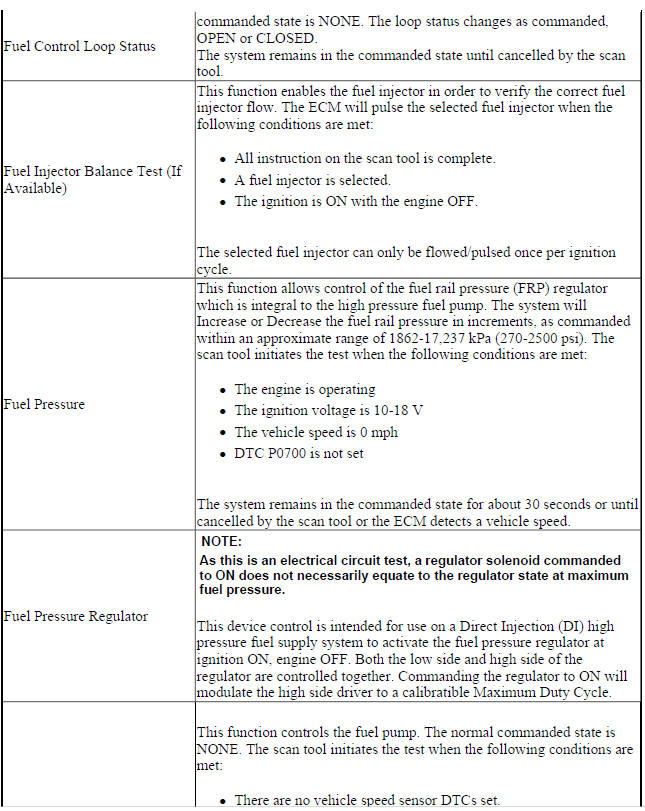

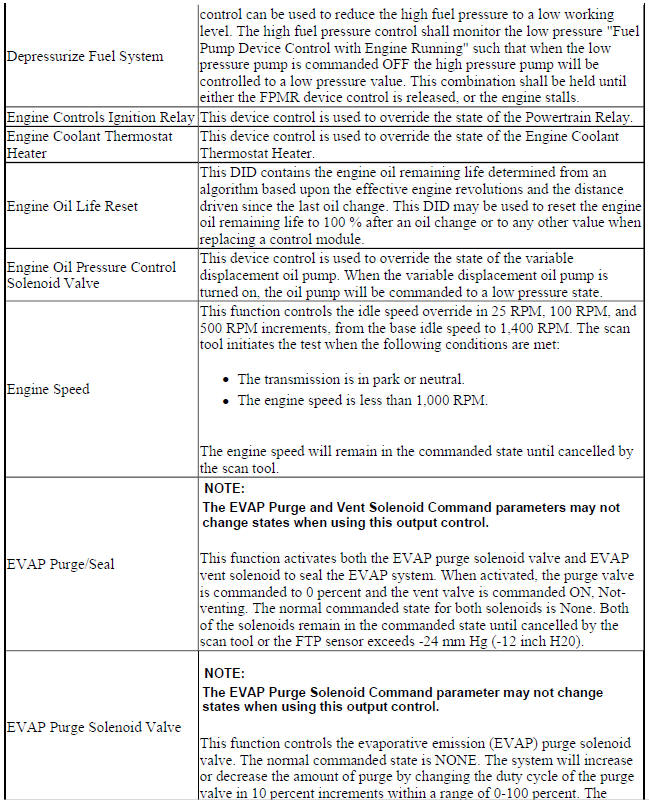

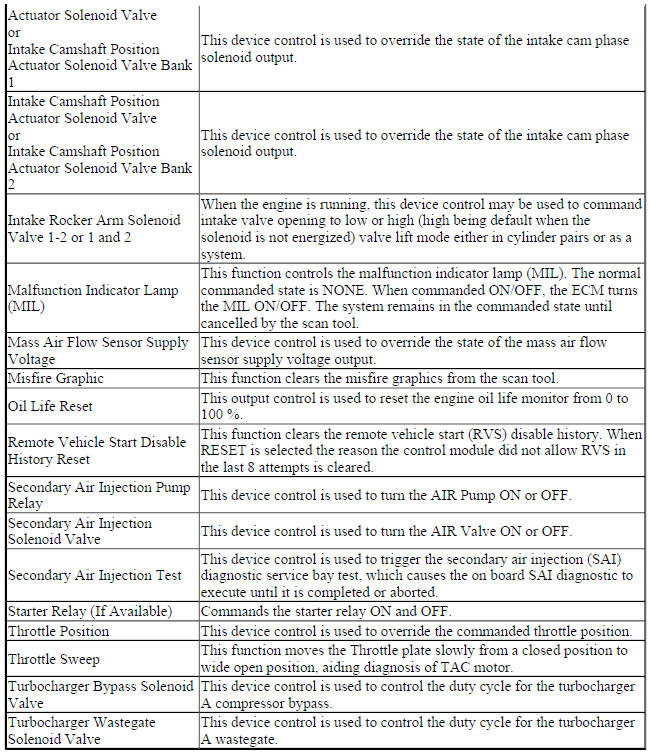

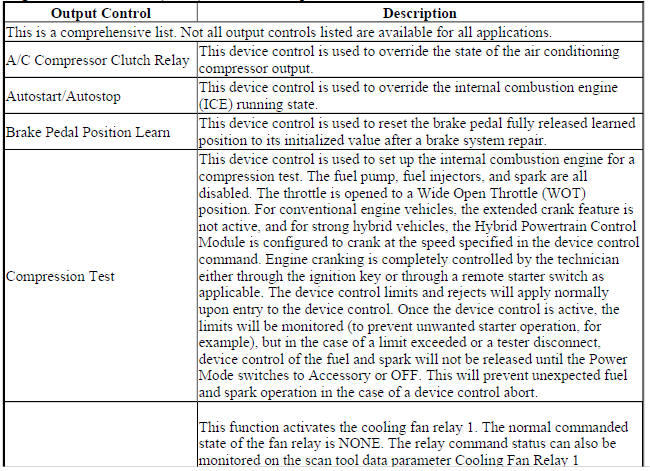

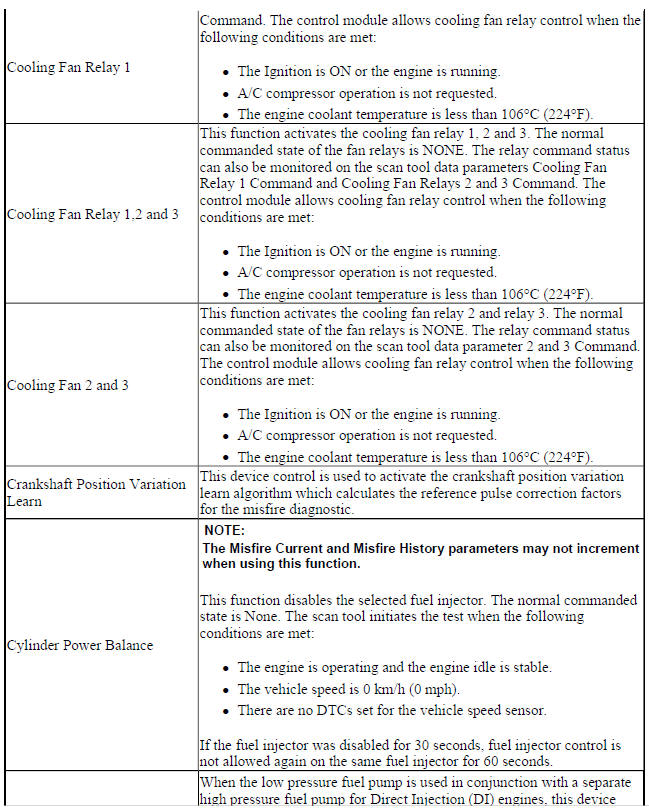

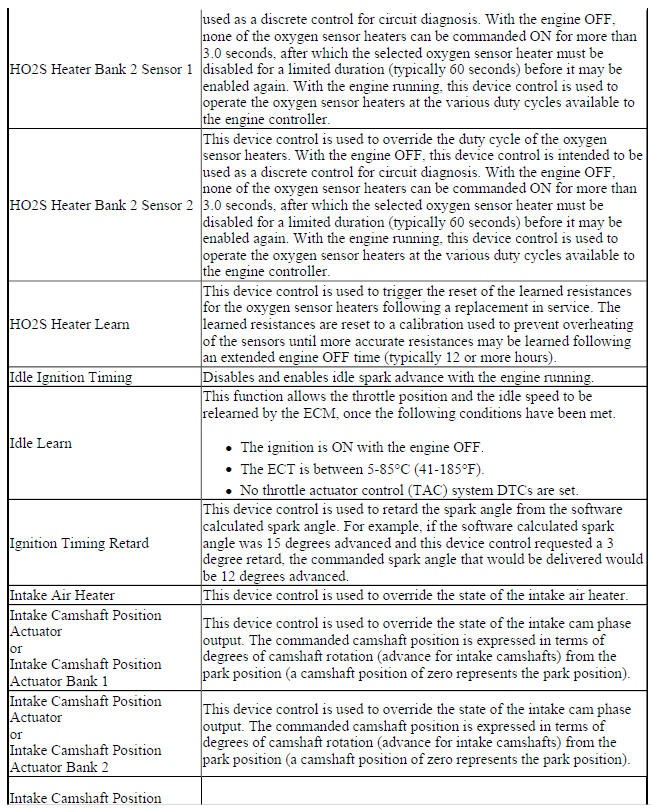

Engine Control Module (ECM) Scan Tool Output Controls

Engine Control Module (ECM) Scan Tool Output Controls

Engine Control Module (ECM) Scan Tool Output Controls

Engine Control Module (ECM) Scan Tool Output Controls

Engine Control Module (ECM) Scan Tool Output Controls

Engine Control Module (ECM) Scan Tool Output Controls

Engine Control Module (ECM) Scan Tool Output Controls

Engine Control Module (ECM) Scan Tool Output Controls

Engine Control Module (ECM) Scan Tool Output Controls

FRONT VIEW CAMERA MODULE SCAN TOOL INFORMATION

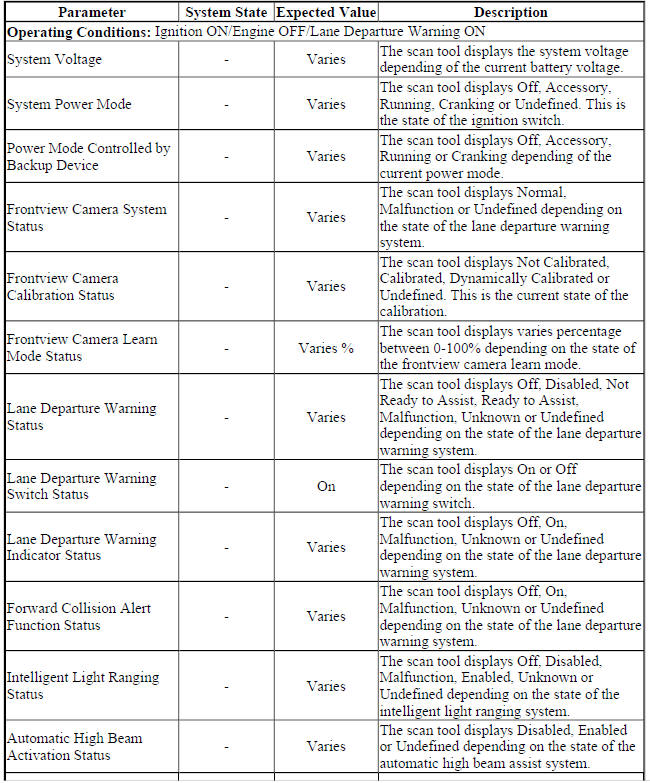

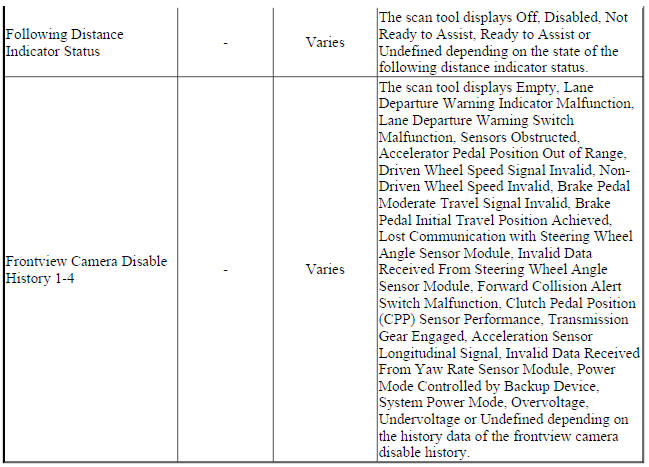

Front View Camera Module Scan Tool Data Parameters

Front View Camera Module Scan Tool Data Parameters

Front View Camera Module Scan Tool Data Parameters

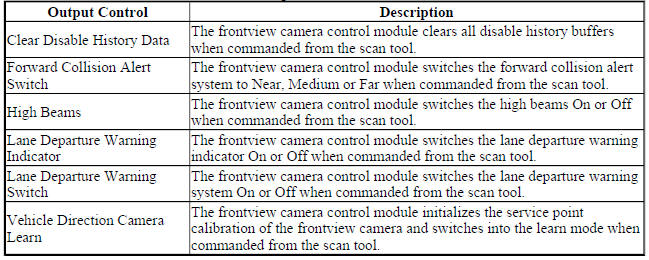

Front View Camera Module Scan Tool Output Controls

Front View Camera Module Scan Tool Output Controls

HEATING, VENTILATION AND AIR CONDITIONING CONTROL MODULE SCAN TOOL INFORMATION

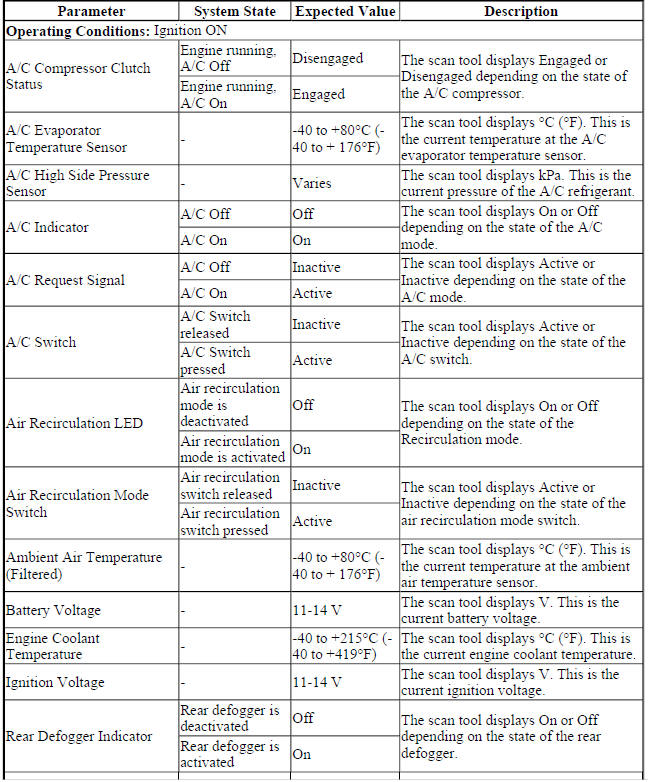

Heating Ventilation and Air Conditioning Control Module Scan Tool Data Parameters

Heating Ventilation and Air Conditioning Control Module Scan Tool Data Parameters

Heating Ventilation and Air Conditioning Control Module Scan Tool Data Parameters

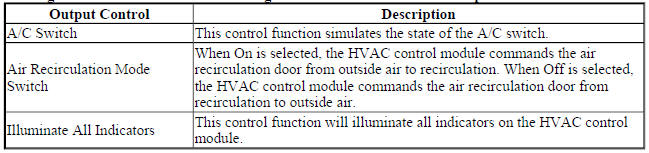

Heating Ventilation and Air Conditioning Control Module Scan Tool Output Controls

Heating Ventilation and Air Conditioning Control Module Scan Tool Output Controls

INFLATABLE RESTRAINT PASSENGER PRESENCE SYSTEM SCAN TOOL INFORMATION

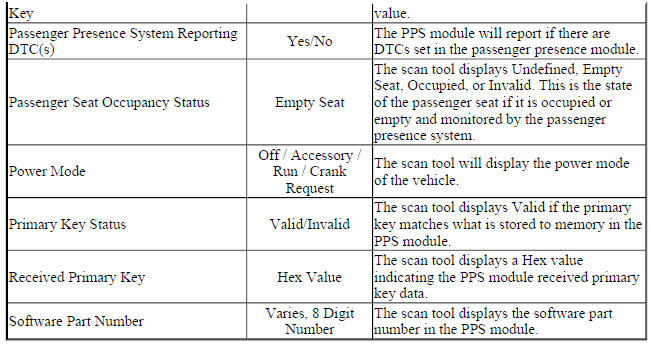

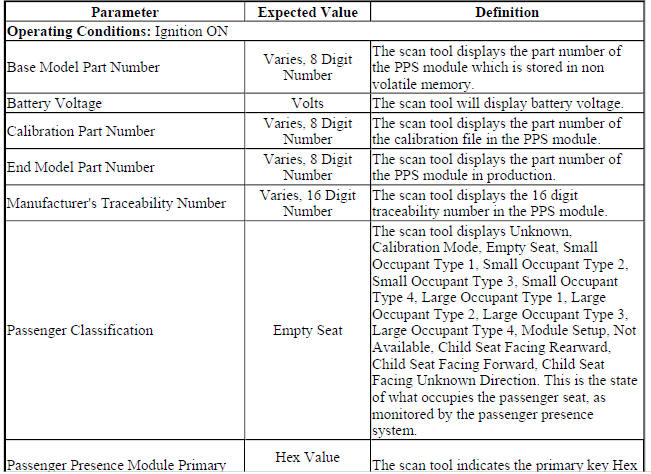

Passenger Presence Module Scan Tool Data Parameters

Passenger Presence Module Scan Tool Data Parameters

Passenger Presence Module Scan Tool Data Parameters

INFLATABLE RESTRAINT SENSING AND DIAGNOSTIC MODULE SCAN TOOL INFORMATION

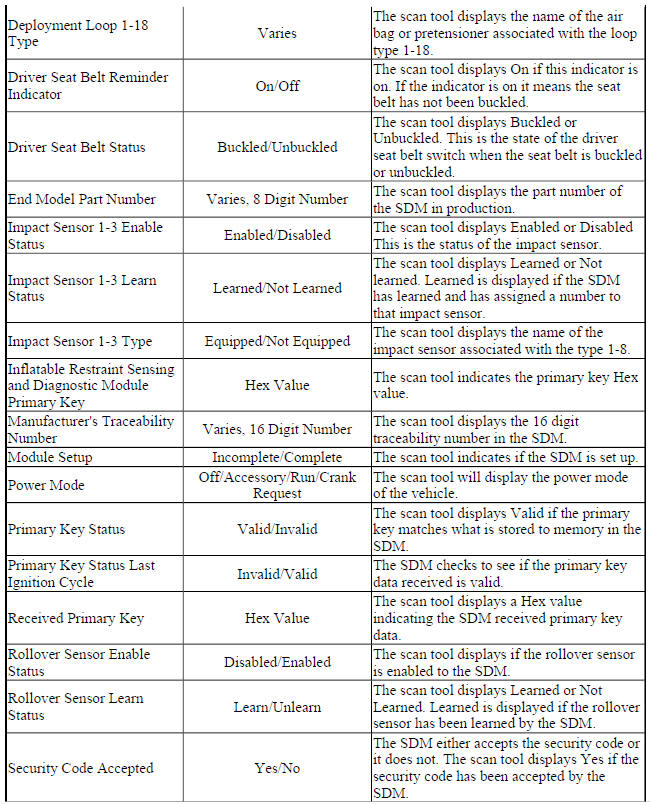

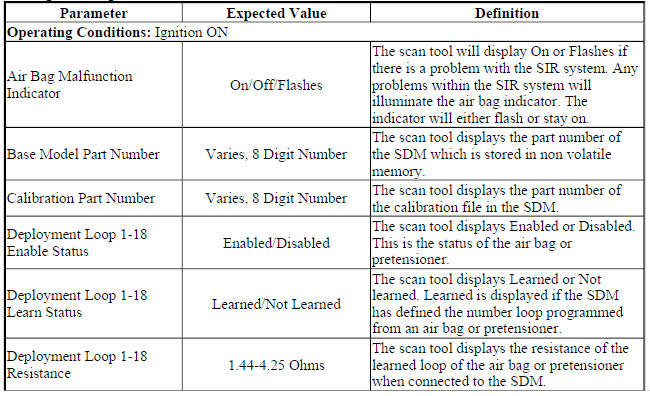

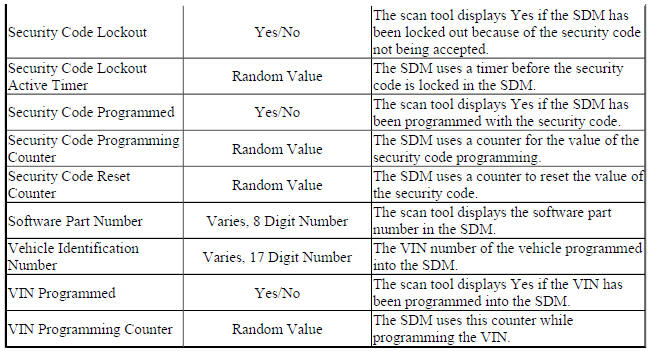

Sensing and Diagnostic Module Scan Tool Data Parameters

Sensing and Diagnostic Module Scan Tool Data Parameters

Sensing and Diagnostic Module Scan Tool Data Parameters

Sensing and Diagnostic Module Scan Tool Data Parameters

INSTRUMENT CLUSTER SCAN TOOL INFORMATION

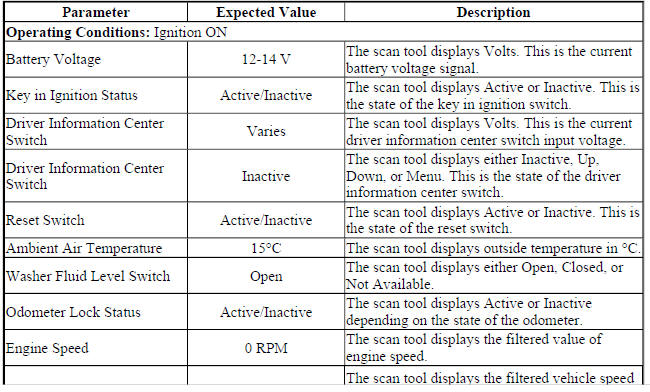

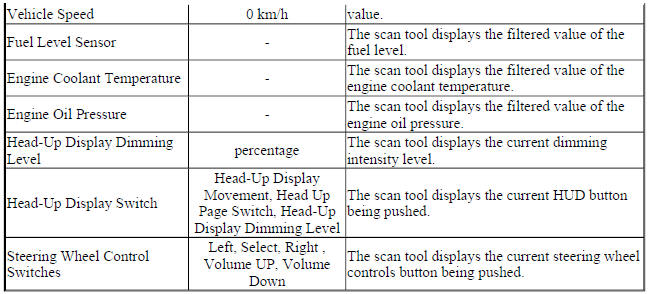

Instrument Cluster Scan Tool Data Parameters

Instrument Cluster Scan Tool Data Parameters

Instrument Cluster Scan Tool Data Parameters

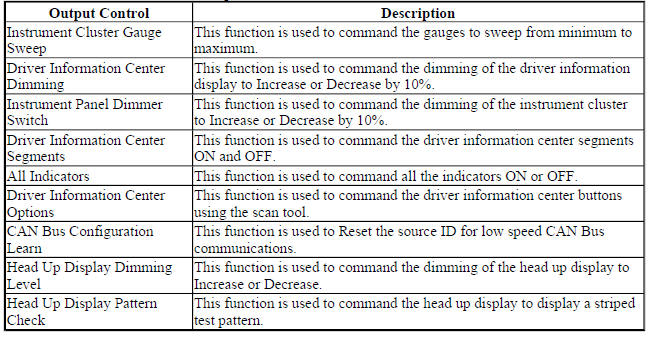

Instrument Cluster Scan Tool Output Controls

Instrument Cluster Scan Tool Output Controls

OBJECT ALARM MODULE SCAN TOOL INFORMATION

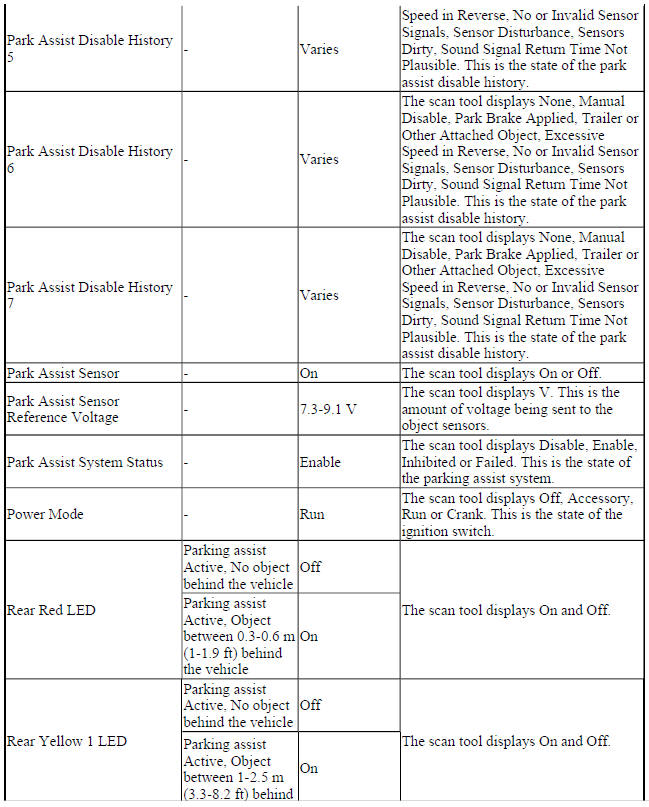

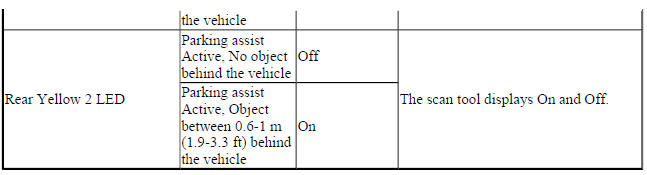

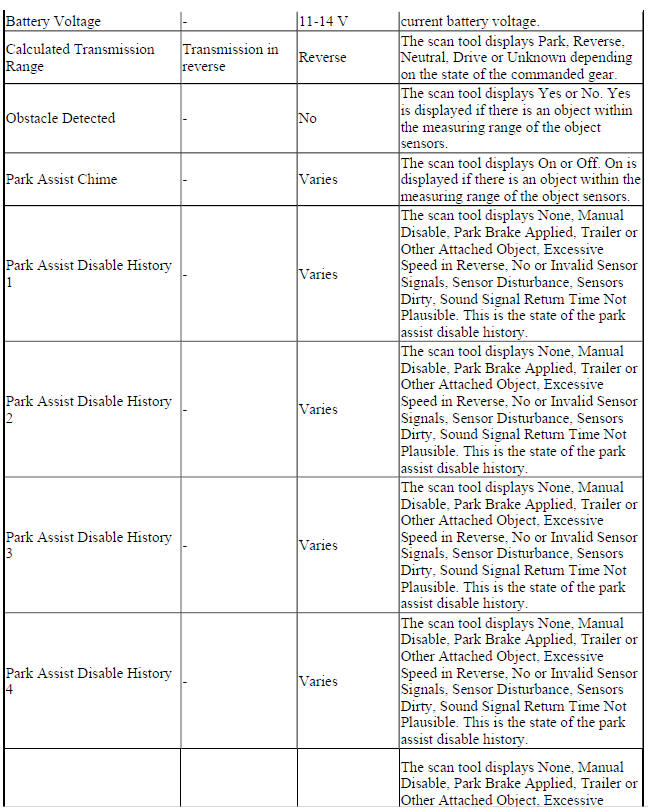

Parking Assist Control Module Scan Tool Data Parameters

Parking Assist Control Module Scan Tool Data Parameters

Parking Assist Control Module Scan Tool Data Parameters

Parking Assist Control Module Scan Tool Data Parameters

Parking Assist Control Module Scan Tool Data Parameters

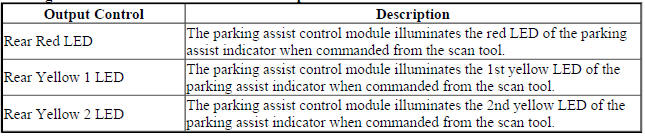

Parking Assist Control Module Scan Tool Output Controls

Parking Assist Control Module Scan Tool Output Controls
