Chevrolet Trax: Buick Wheel Alignment Specifications
WHEEL ALIGNMENT SPECIFICATIONS
ENCLAVE

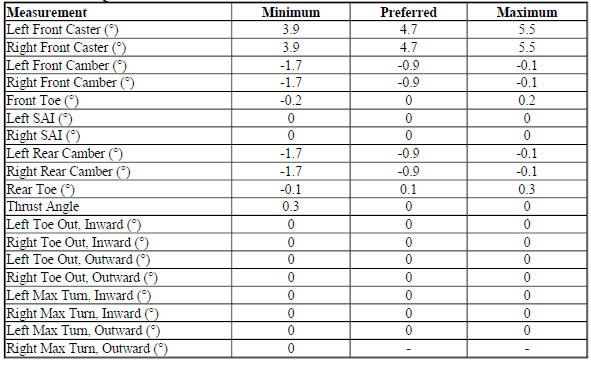

ENCLAVE w/o QPR
![ENCLAVE w/o QPR](images/manuals/4484/index31(14).jpg)

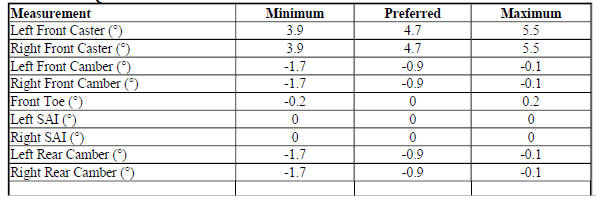

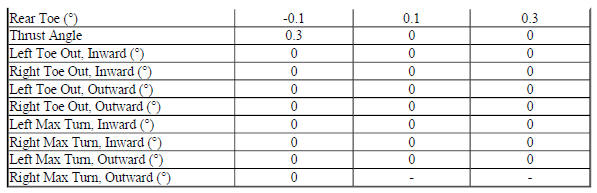

ENCLAVE w/QPR
![ENCLAVE w/QPR](images/manuals/4484/index32(13).jpg)
![ENCLAVE w/QPR](images/manuals/4484/index33(13).jpg)
ENCORE

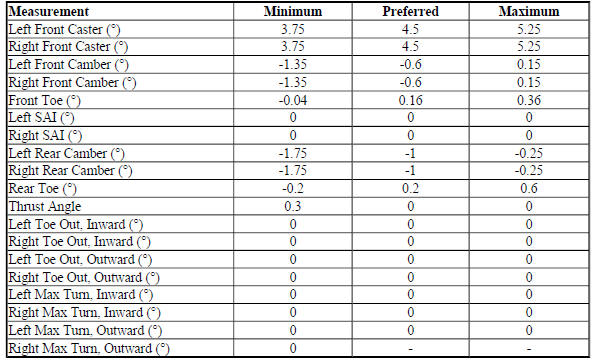

ENCORE All Models
![ENCORE All Models](images/manuals/4484/index34(14).jpg)
LACROSSE

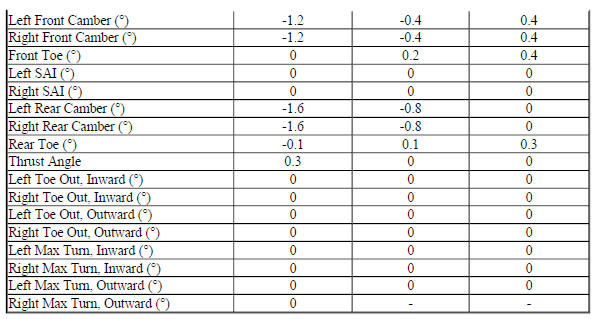

LaCROSSE GNA Base Suspension
![LaCROSSE GNA Base Suspension](images/manuals/4484/index35(14).jpg)
![LaCROSSE GNA Base Suspension](images/manuals/4484/index36(14).jpg)
LaCROSSE GNB Performance Suspension
![LaCROSSE GNB Performance Suspension](images/manuals/4484/index37(13).jpg)
REGAL

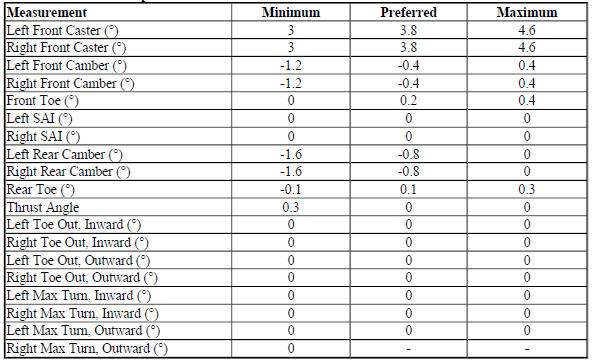

REGAL GNA Base Suspension
![REGAL GNA Base Suspension](images/manuals/4484/index38(12).jpg)

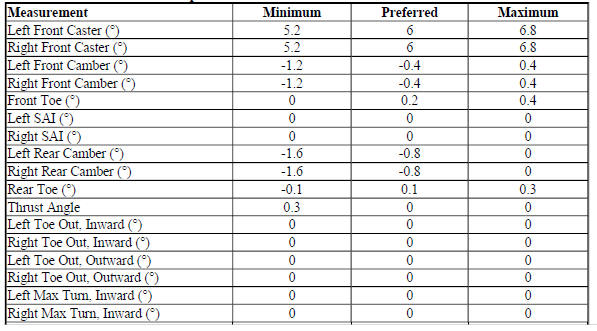

REGAL GNB Performance Suspension
![REGAL GNB Performance Suspension](images/manuals/4484/index39(13).jpg)
![REGAL GNB Performance Suspension](images/manuals/4484/index310(13).jpg)
VERANO
VERANO All Models
![VERANO All Models](images/manuals/4484/index311(13).jpg)
